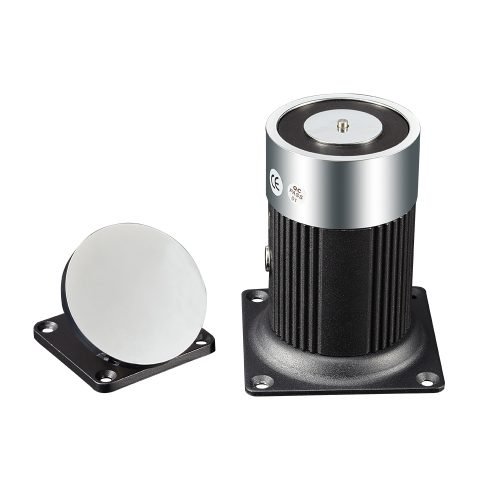

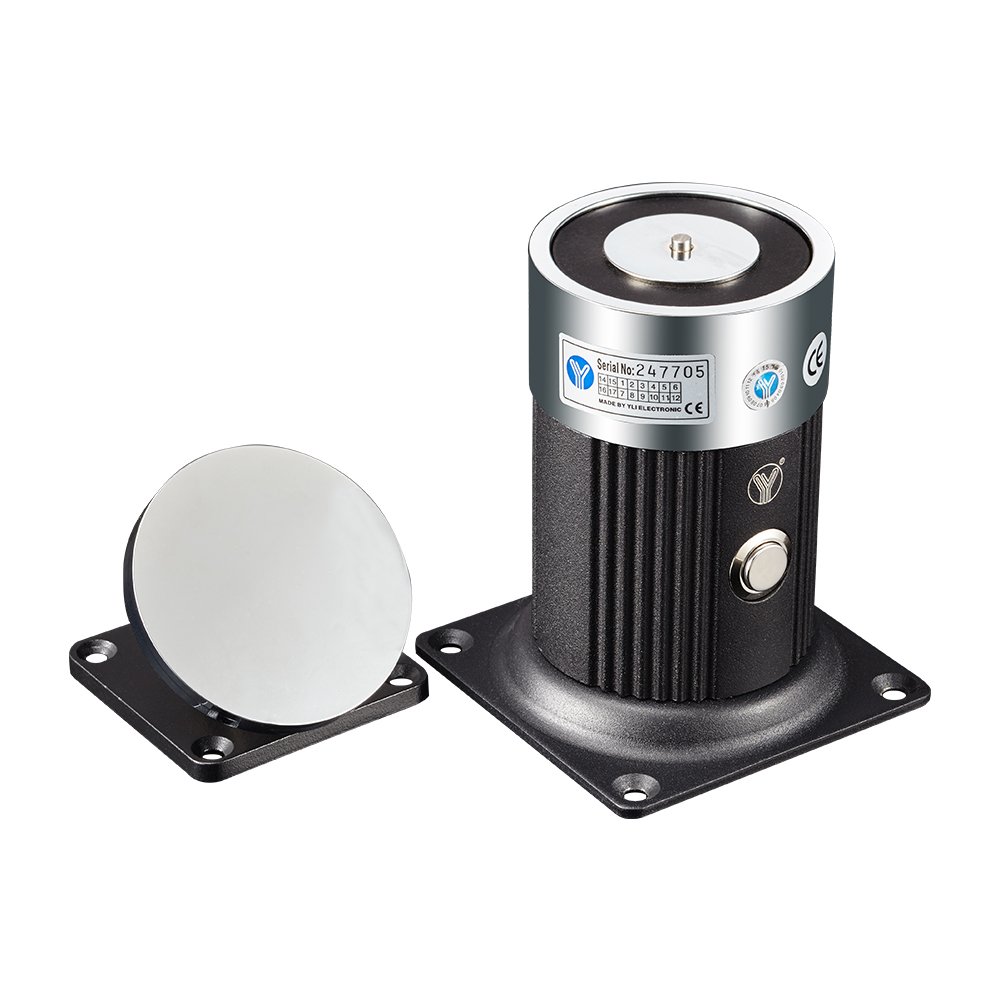

Extended Wall Mount Door Holder

YD-602L is a Extended Wall Mount Door Holder. The low power consumption,Highlights it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms.It also contains build-out release button for testing and build-in MOV which reverse current protection.

SKU: YD-602L Categories: ,

Technical Parameter

Dimensions L90xW90xH114(mm)
Holding Force 180kg(350Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/240mA 24V/120mA
Signal Output NO（Green）/NC（Yellow）/COM(White) YD-602L-S
Optional Manual door release button
Suitable for All Kinds of Single & Double Smokeproof Doors
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection Zinc
Finishes for Armature Zinc
Weight 1.6kg
Certificate MA CE-EMC

Advantage

Col linear Load Test 50kg–110pounds.
Dual Voltage 12/24 VDC(Adjustable).
The Standard Voltage is 24VDC when Finished.
MOV Provides Reverse Current Protection.
Low Power,Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design,  Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
CE Certificate.

Dimension Diagram

Installation Diagram
