Technical Parameter
| Signal Output | Lock signal NO/COM(YM-350W-S) |
| Lock Size | 227.5Lx52Wx28.5H(mm) |
| Armature plate | 190Lx45Wx13.2H(mm) |
| Holding Force | 350kg(800Lbs) |
| Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA(±10%);24V/250mA(±10%) |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| IP rate | IP-68 |
| Weight | 2.5kg |
| Certificate | CE-EMC CE-LVD ROHS FCC REACH WEEE |
Advantage

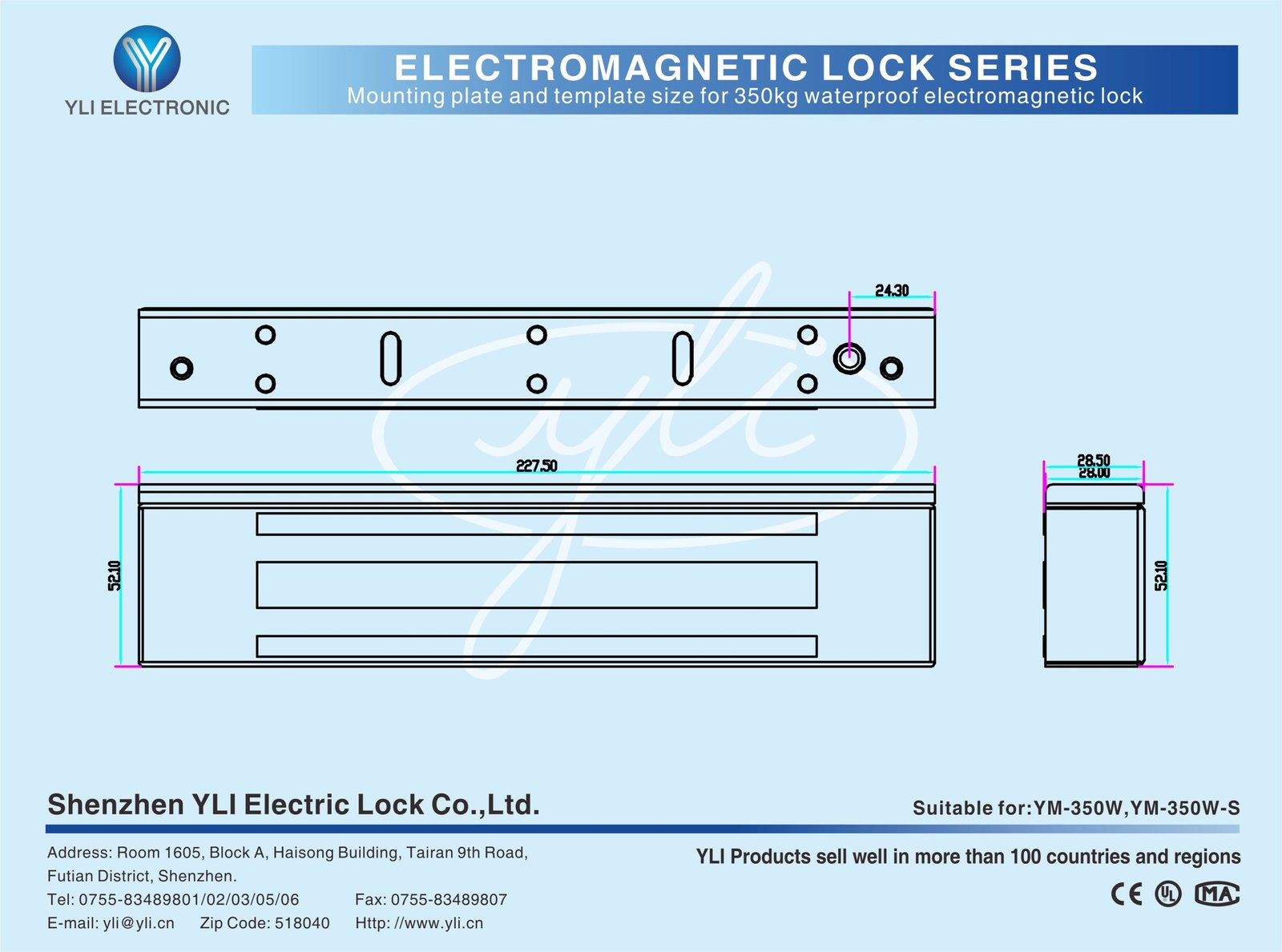

Dimension Diagram

Installation Diagram
