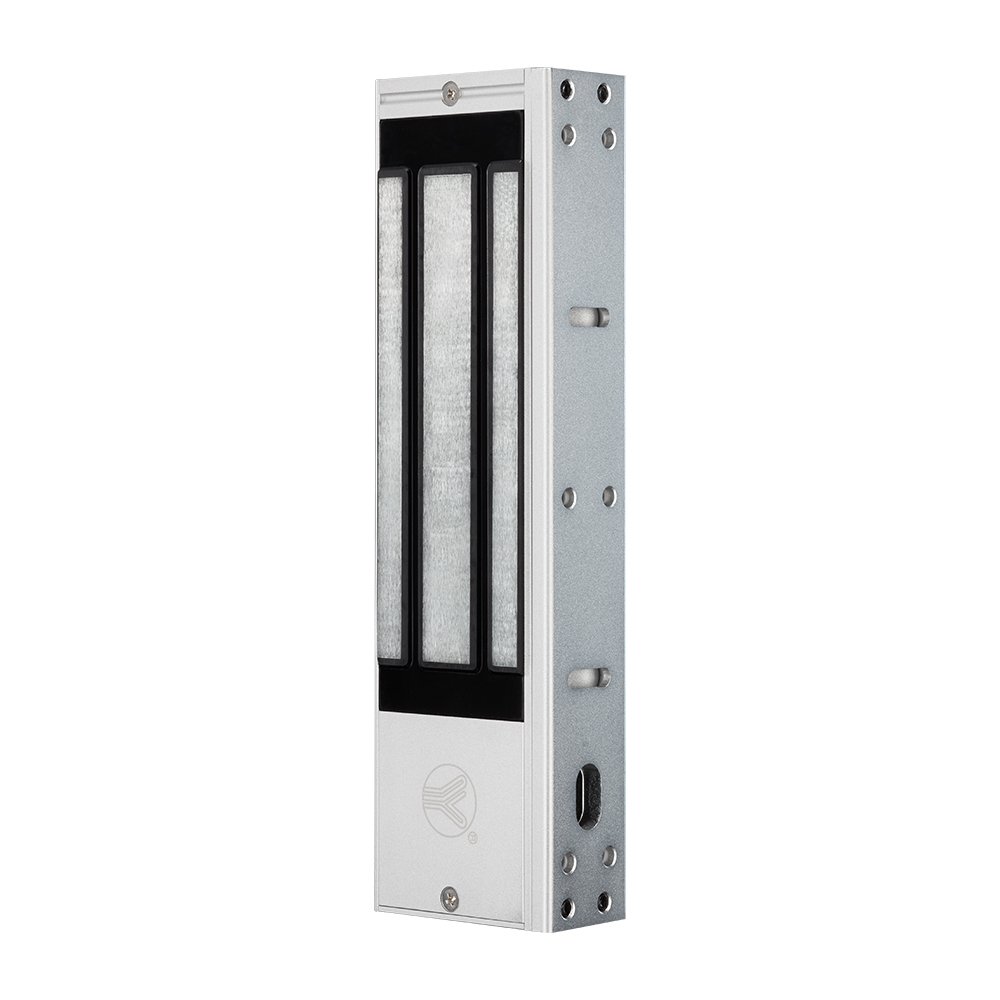

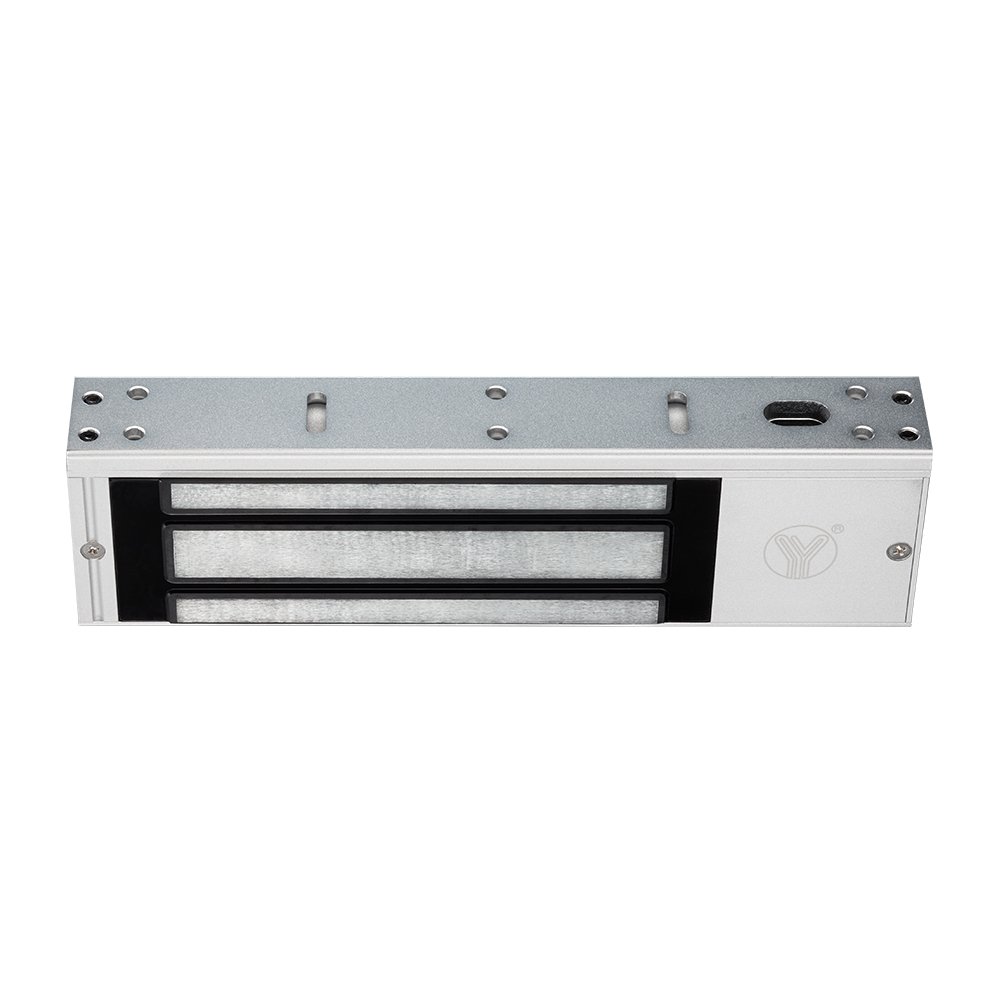

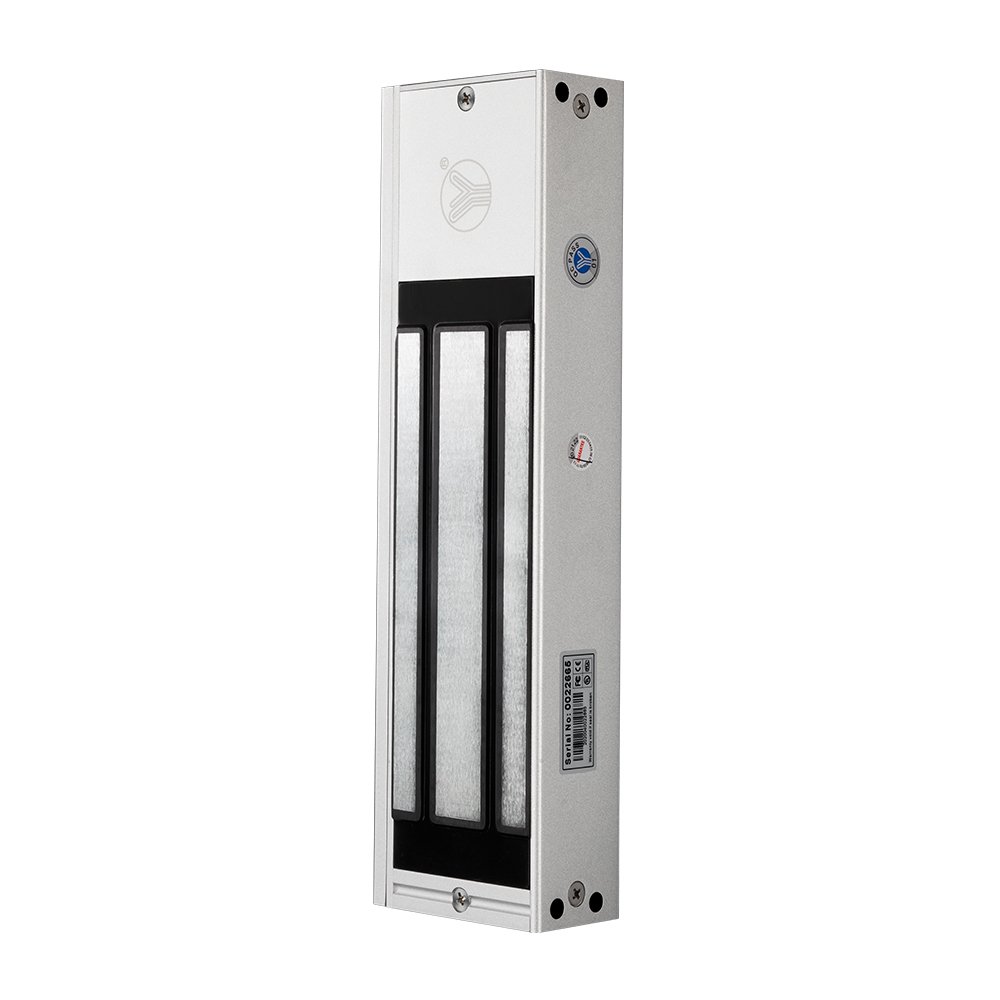

Single Door Magnetic Lock(LED & Time)

Inbuilt time delay mode and can set up 0,3,6,9sec .It is suitable for the card reader which is with time delay and LED indicator. Holding force: 1200lbs

SKU: YM-500NT(LED) Categories: ,

Technical Parameter

Size 265Lx73Wx41H(mm)
Armature Plate Dimension 185Lx60Wx13.2H(mm)
Holding Force 500kg(1200Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%);24V/250mA(±10%)

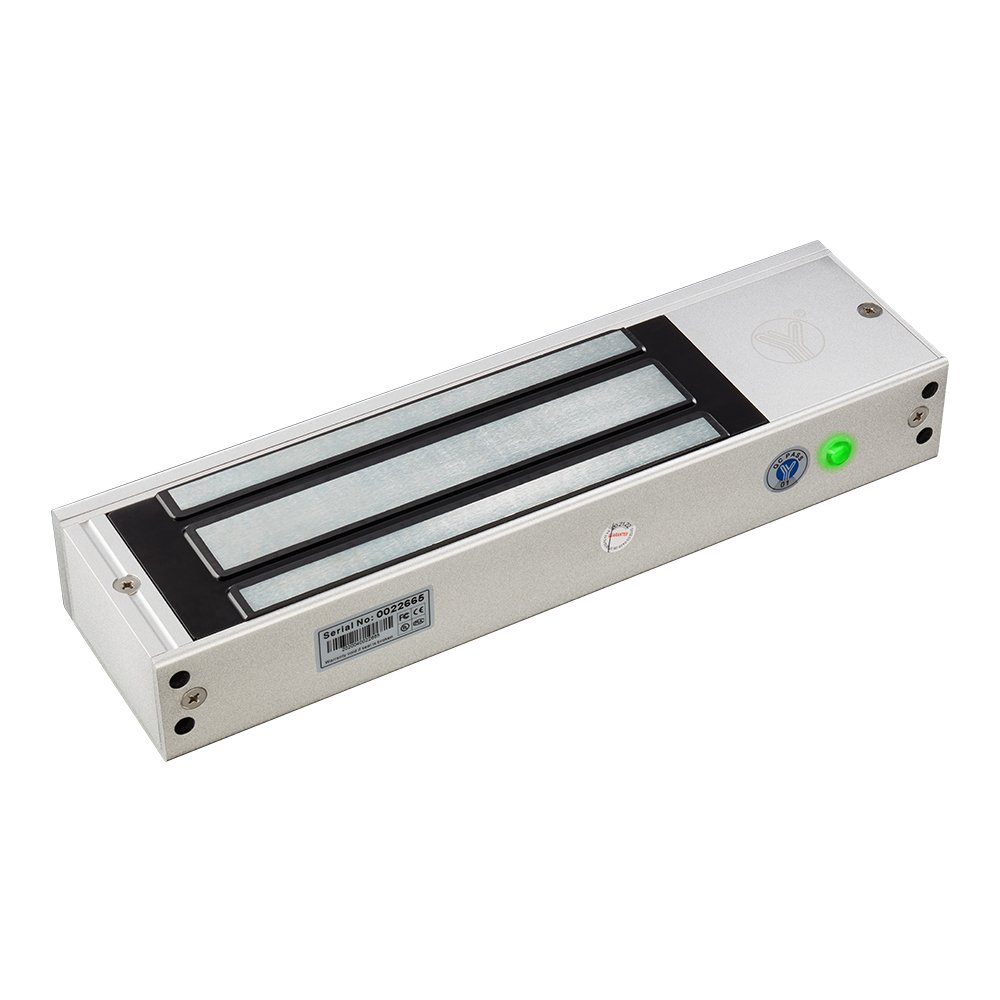

LED Red shows locked ;Green shows unlocked
Signal Output Lock signal(NO/NC/COM)
Time 0/3/6/9sec.
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Cover Finish Anodized aluminum
Humidity 0~95%(non-condensing)
Weight 4.5KG
Certificate MA CE-EMC CE-LVD FCC RoHS

Advantage

Collinear Load Test 500kg,1200pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

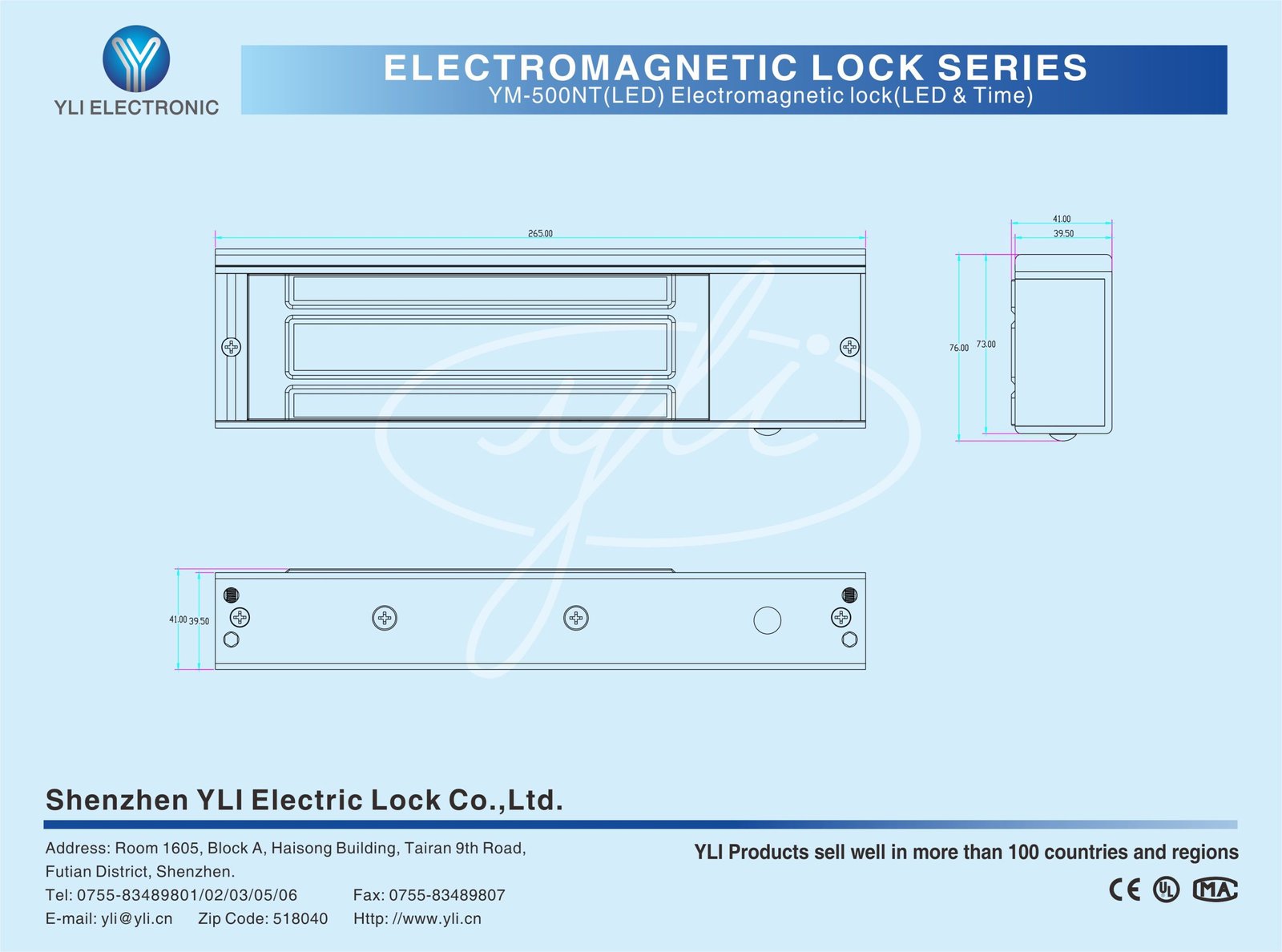

Dimension Diagram

Installation Diagram
