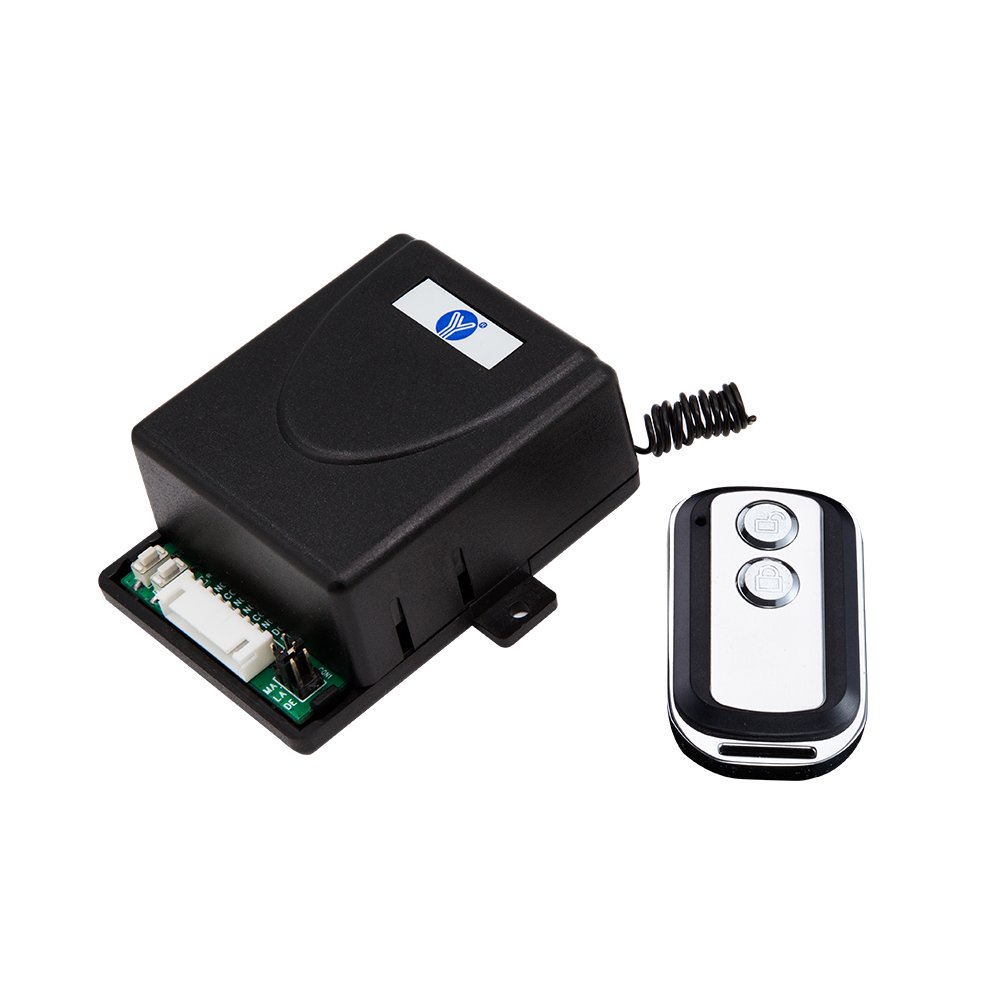

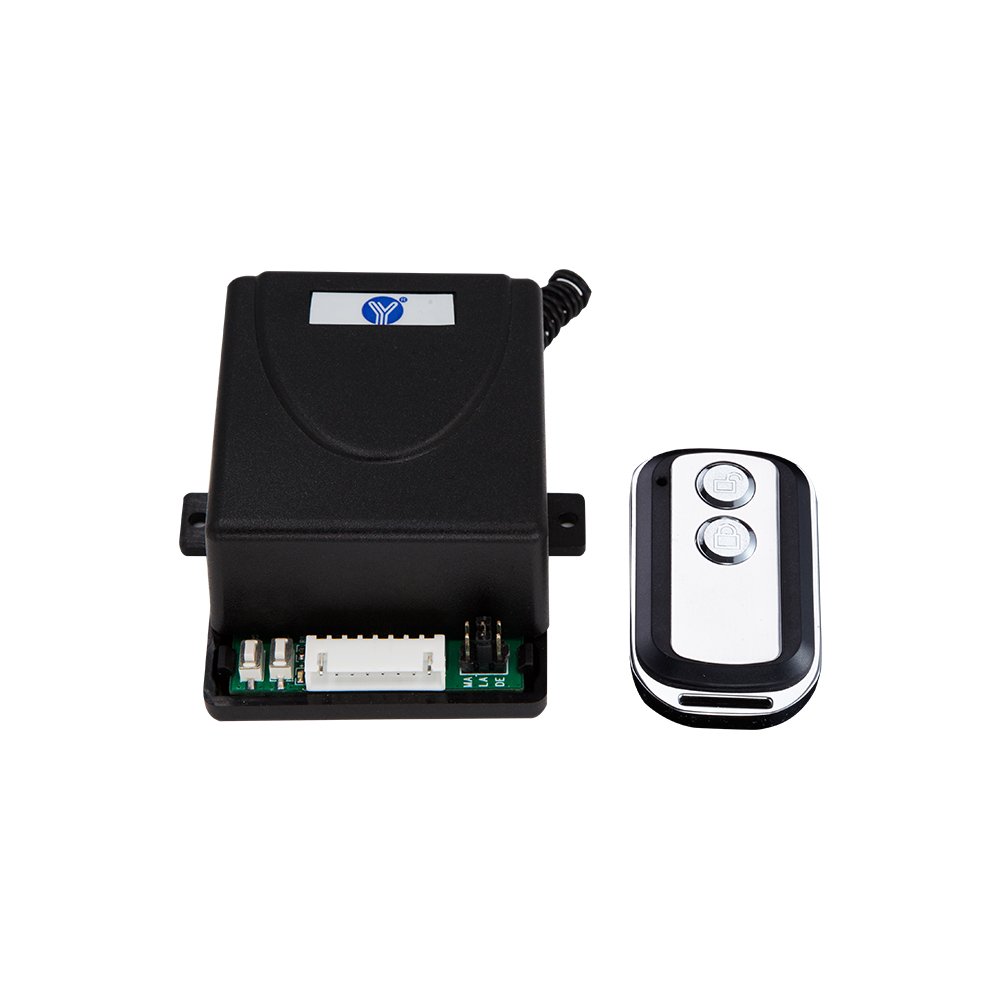

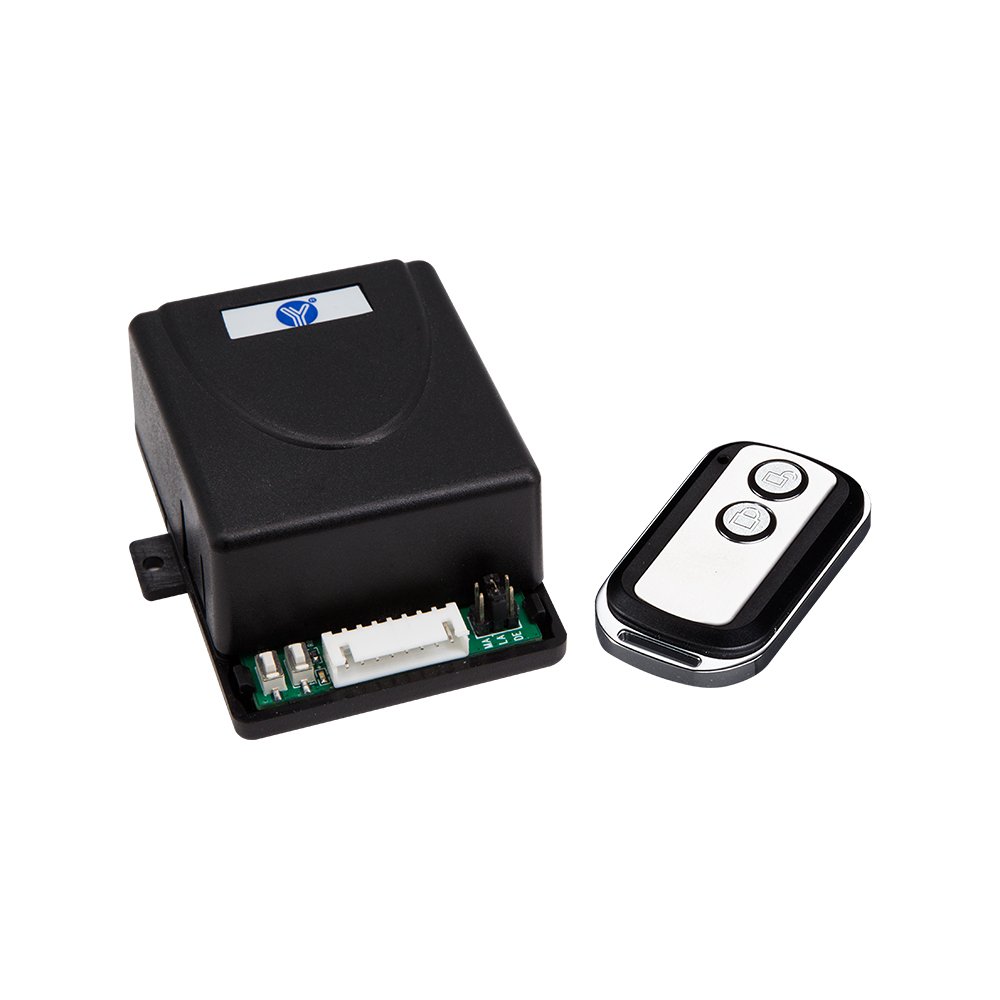

Remote Control

WBK-400-2-12 is the special remote control for parking lot. It is designed with small and beautiful appearance. It can also penetrate the wall easily and be controlled sensitively. with metal transmitter .It can also penetrate the wall easily and be controlled sensitively.

SKU: WBK-400-2-12 Categories: ,

Technical Parameter

Dimensions 58Lx62Wx30H(mm)
Voltage DC12V/24V (Selectable)
Contact Rating ≤20A@14VDC,5A@250VAC
Current ≤10mA @12V
Frequency 315MHz、433MHz(Selectable)
Capacity 30 (learning code)
Operating Temperature -10℃-+60℃
Operating Sensitivity ≤-105dBm
Transmitting Distance ≥110m
Weight 0.09kg

Advantage

Simple operation, study key for setup
Penetrate into the wall effectively and be controlled sensitively
Delicate and beautiful design with metal transmitter
Adopt roll code chips to prevent falsity
The Best Choice for Access Control

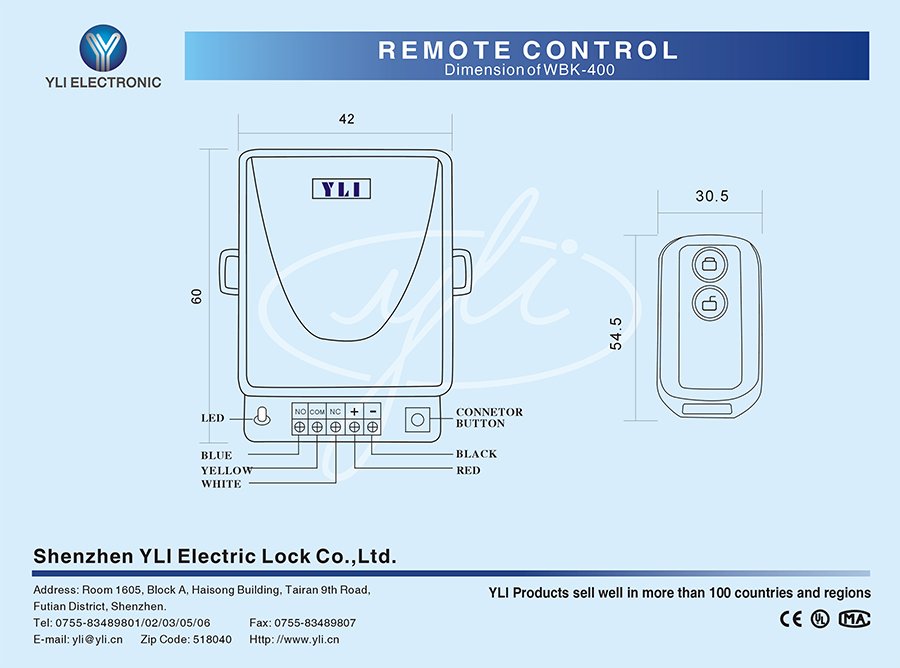

Dimension Diagram

Installation Diagram
