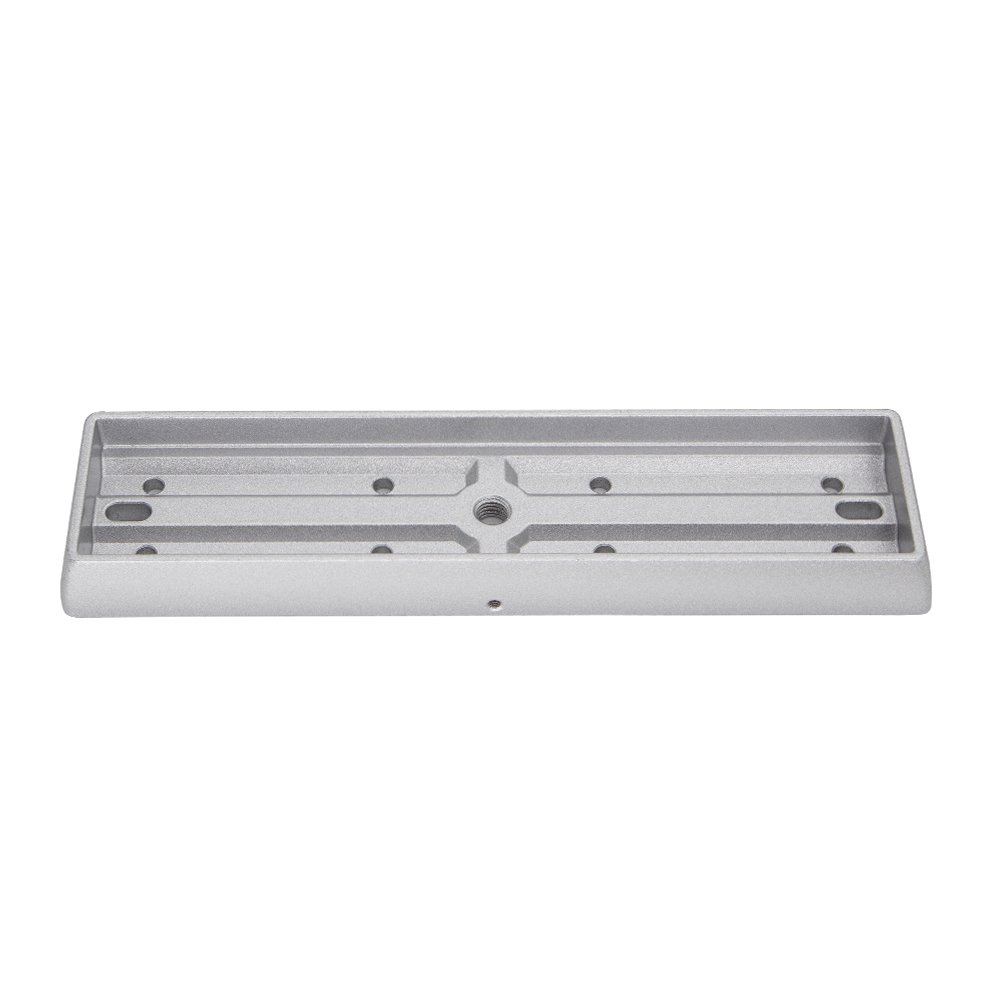

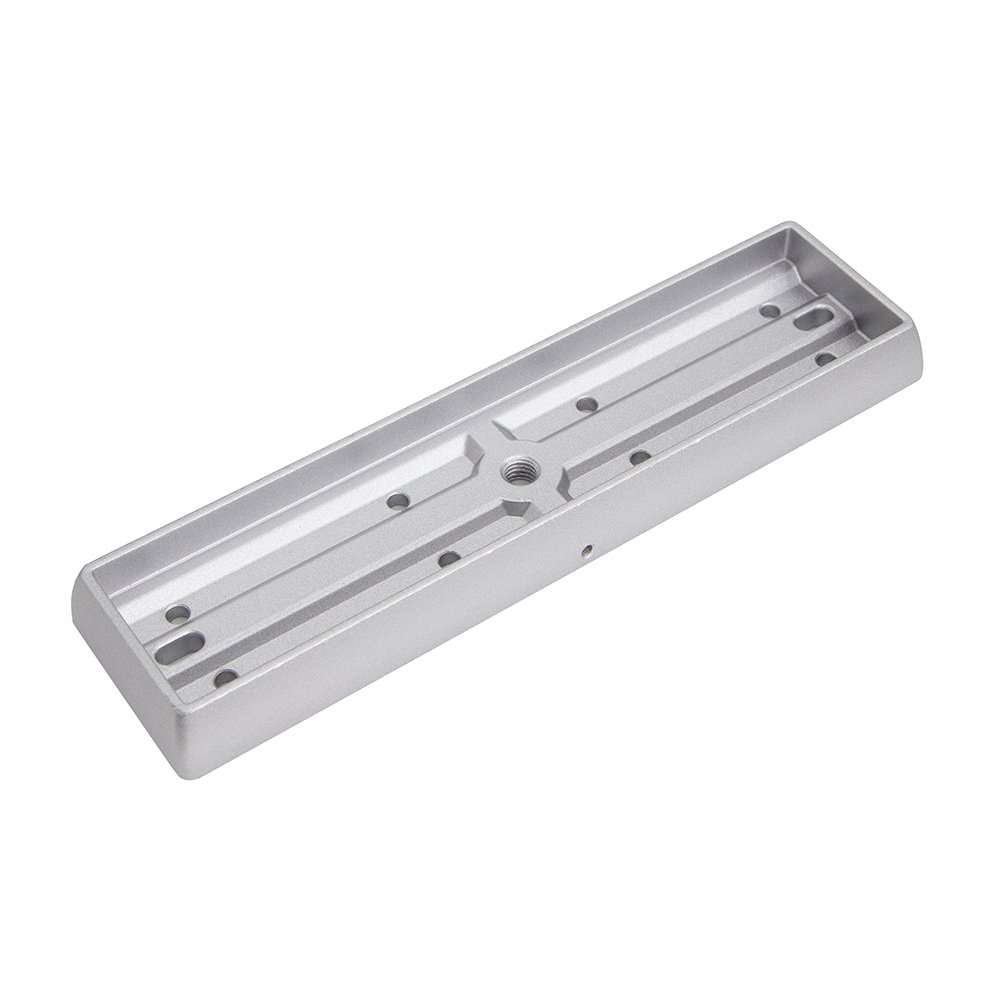

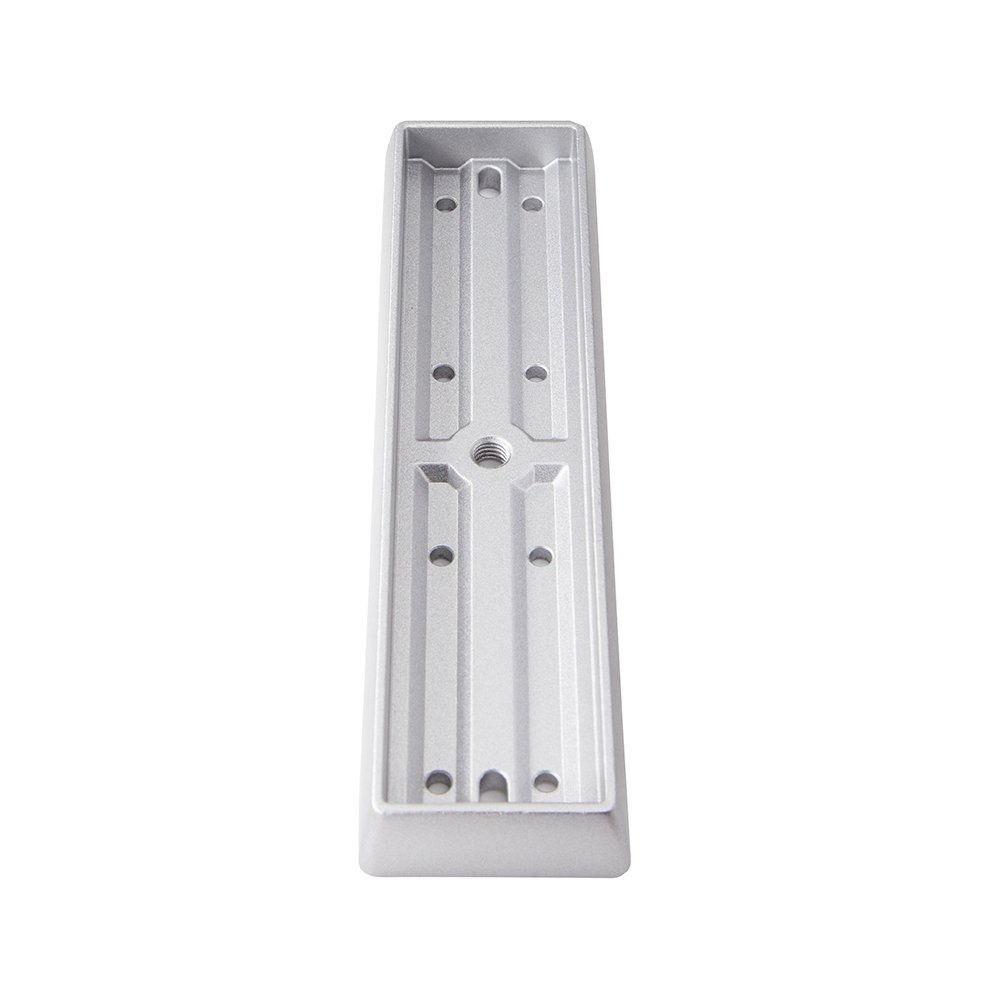

Installation groove of Armature plate

I bracket1. We have different models : MBK-180I/MBK-280I/MBK350I/MBK-500I2. I bracket is used to install the plate on the door leaf. 3. Material are High Strength Aluminum.

SKU: MBK-180IN/280IN/350IN/500IN Categories: ,

Technical Parameter

Dimension 141.5x40x16(mm)(MBK-180IN)
192x45x16(mm)(MBK-280IN)
201x52.5x16(mm)(MBK-350IN)
193x68x19(mm)(MBK-500IN)
Material High Strength Aluminum, Sandblast Finished
Suitable Narrow Door
Opening Mode 90 Degree Door
Suitable For Metal Door,Narrow-Frame Door,Fireproof Door
Suitable For Magnetic lock from YLI
Finished for Shell Anodized aluminum
Weight 0.22kg / 0.33kg / kg / 0.36kg
Certificate CE-EMC RoHS REACH WEEE

Advantage

Special Aluminum, Firm and Durable.

Special Design, Suitable with all kinds of Doors.

The Best Choice of Access Control.

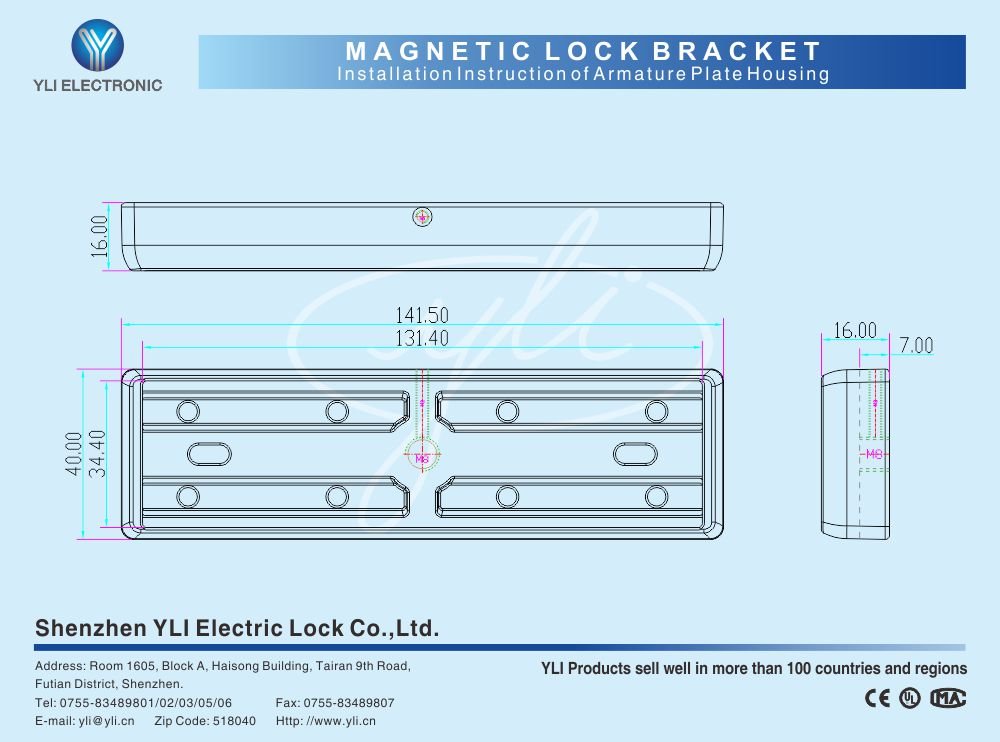

Dimension Diagram

Installation Diagram
