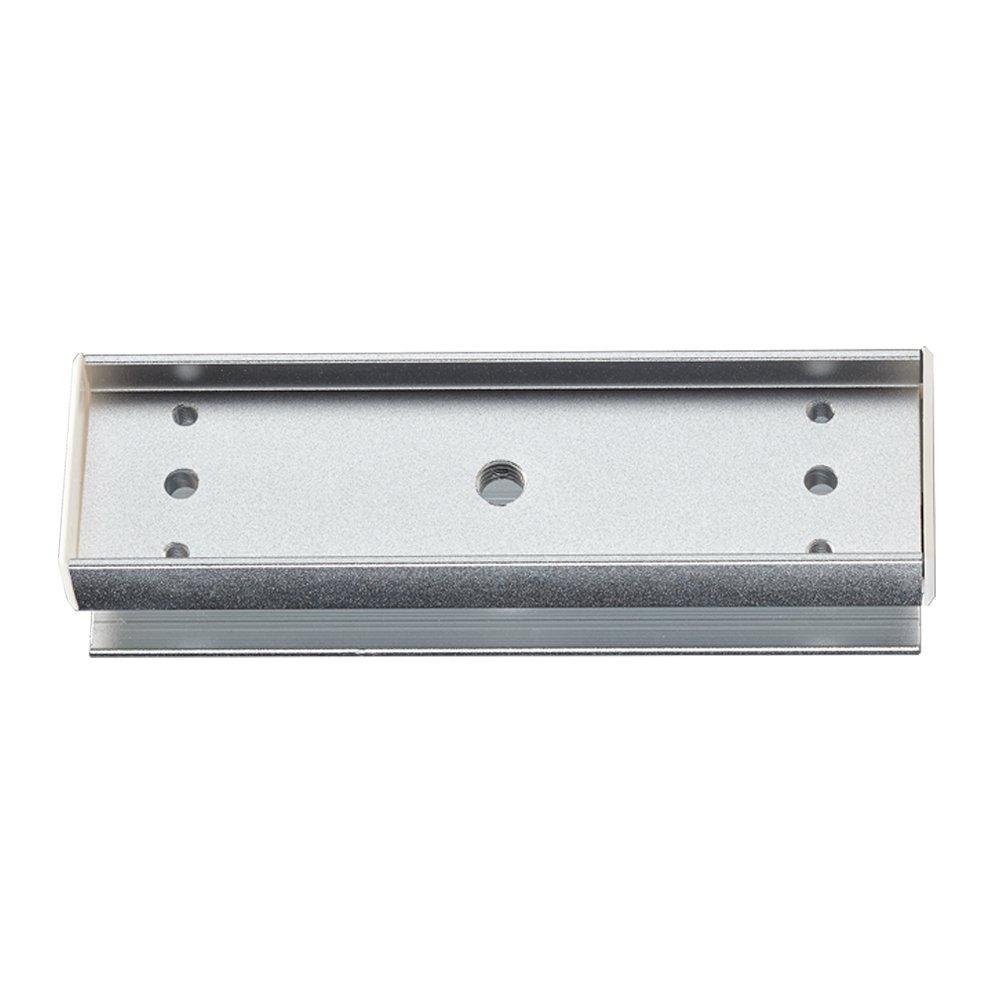

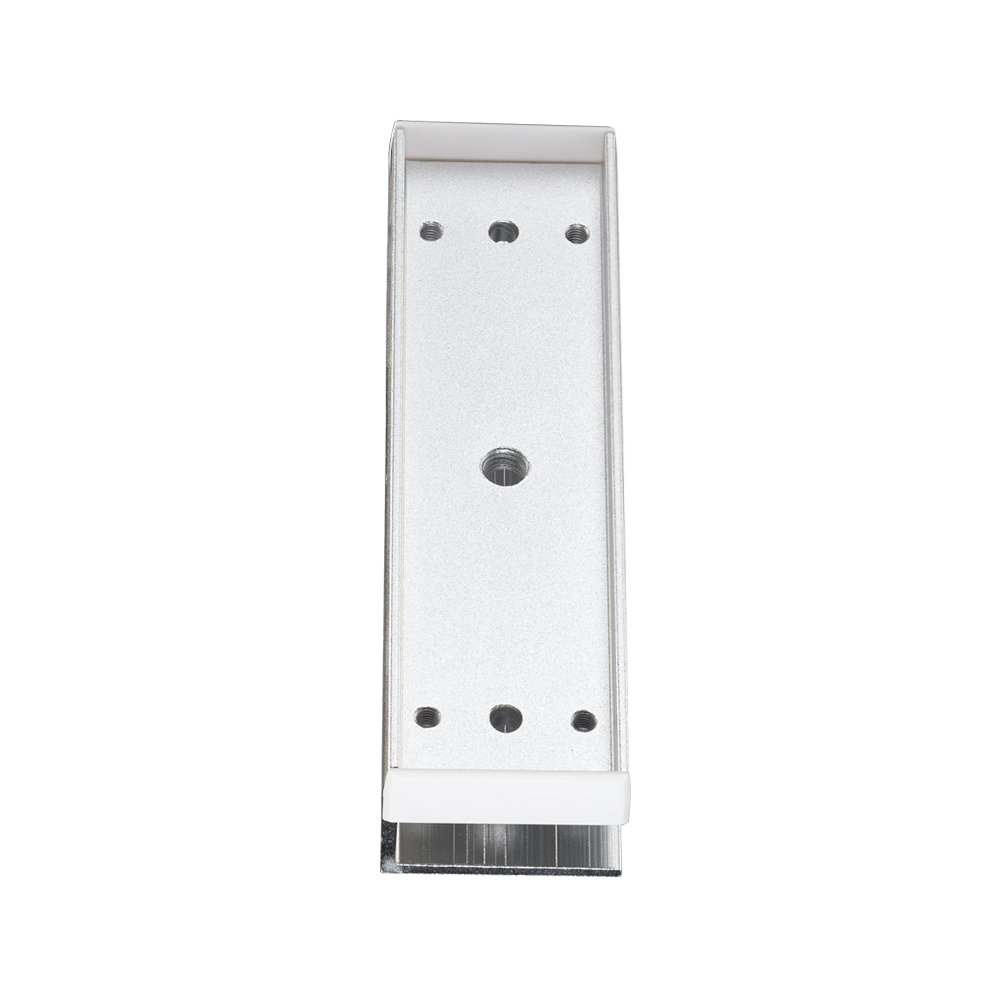

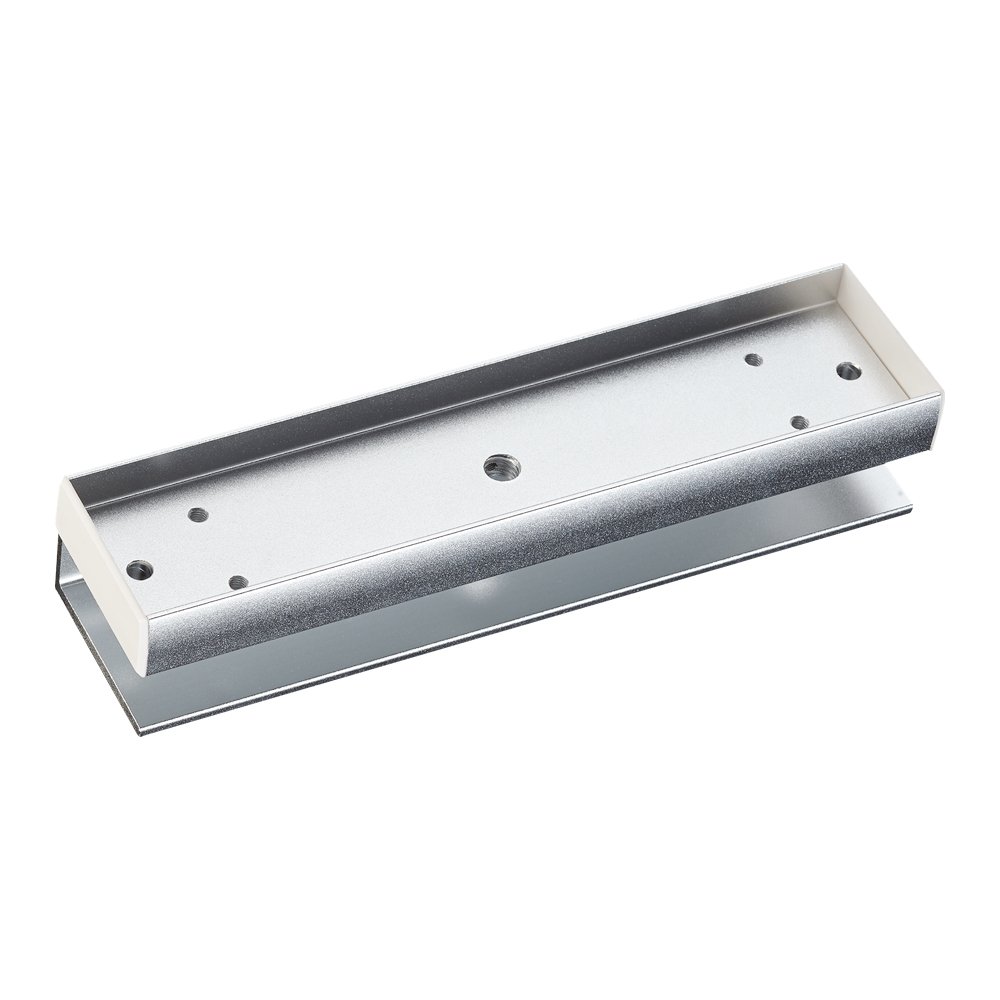

U Bracket for Frameless Glass Door

U brackets 1.U Bracket is used for Frameless Glass Door with High Strength Aluminum material . 2.It is with Sandblast Finished .3. Different standard: MBK-180U/MBK-280U

SKU: MBK-180U/MBK-280U/MBK-350U Categories: ,

Technical Parameter

Dimension 134x39x30.5(mm)(MBK-180U)
184x45x37.5(mm)(MBK-280U)
191.2x52.4x35.4(mm)(MBK-350U)
Material High Strength Aluminum, Sandblast Finish
Suitable Frameless Glass Door
Opening Mode 90 Degree Door
Suitable For Magnetic lock from YLI
thickness of glass Suitable for glass door with 10-15mm thickness
Finish for Shell Anodized aluminum
Weight 0.24kg/0.32kg/0.5kg
Patent No. ZL2014205796427
Certificate CE-EMC RoHS REACH WEEE

Advantage

Special Aluminum, Firm and Durable.

Special Design, Suitable with all kinds of Doors.

The Best Choice of Access Control.

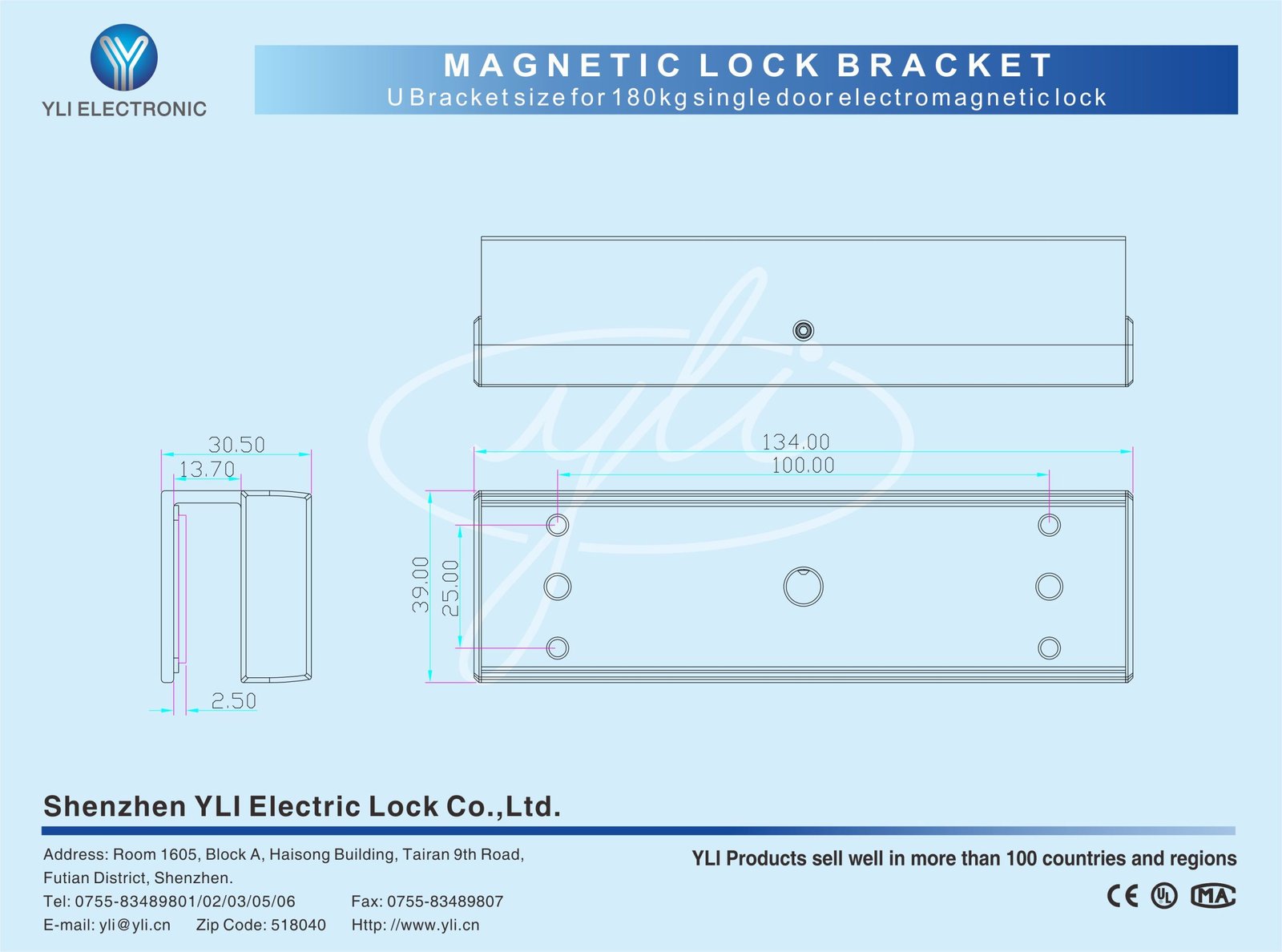

Dimension Diagram

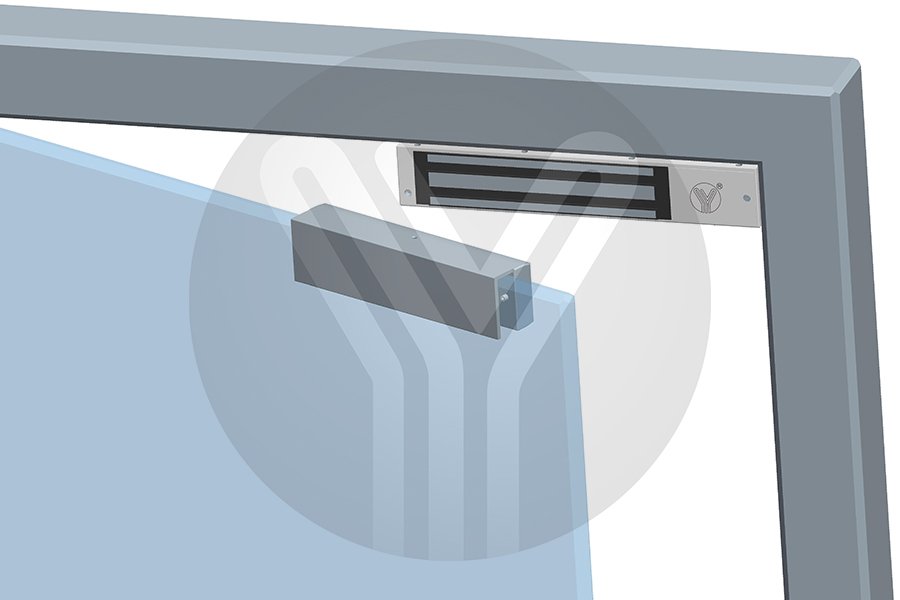

Installation Diagram
