Remote Control

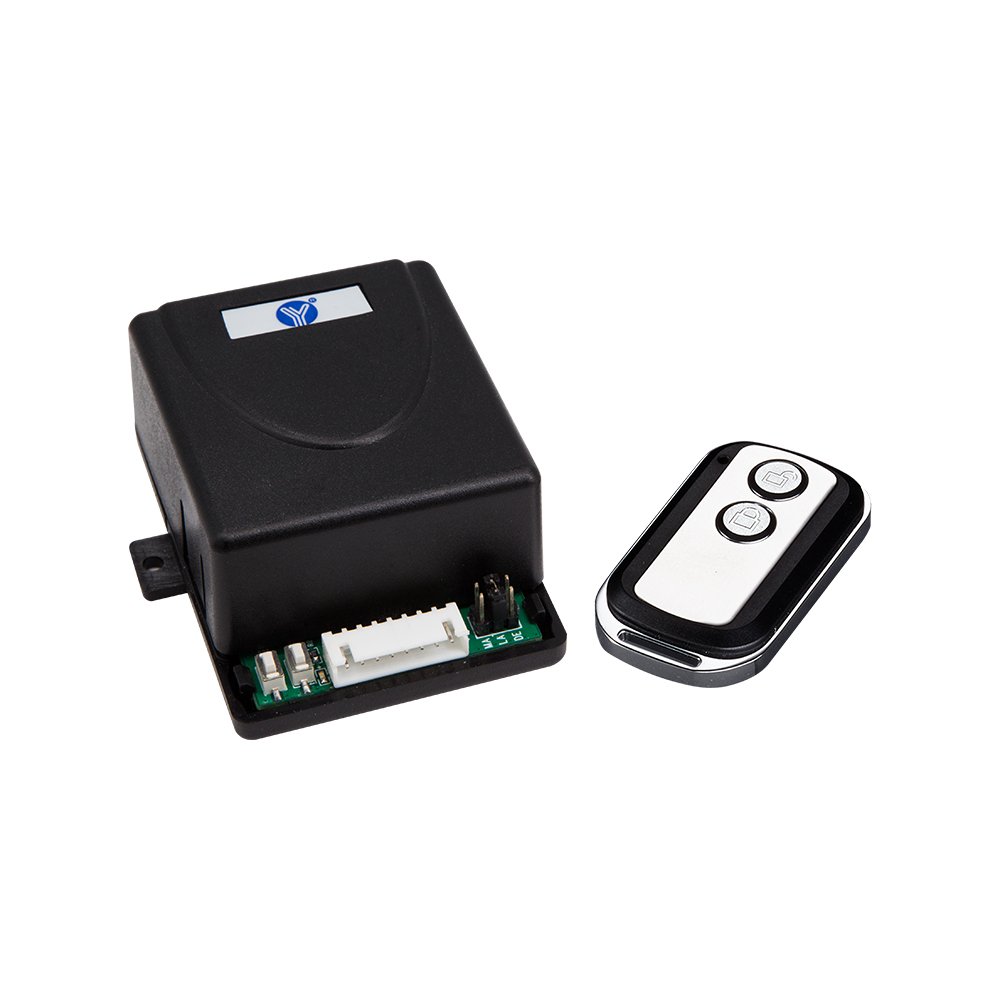

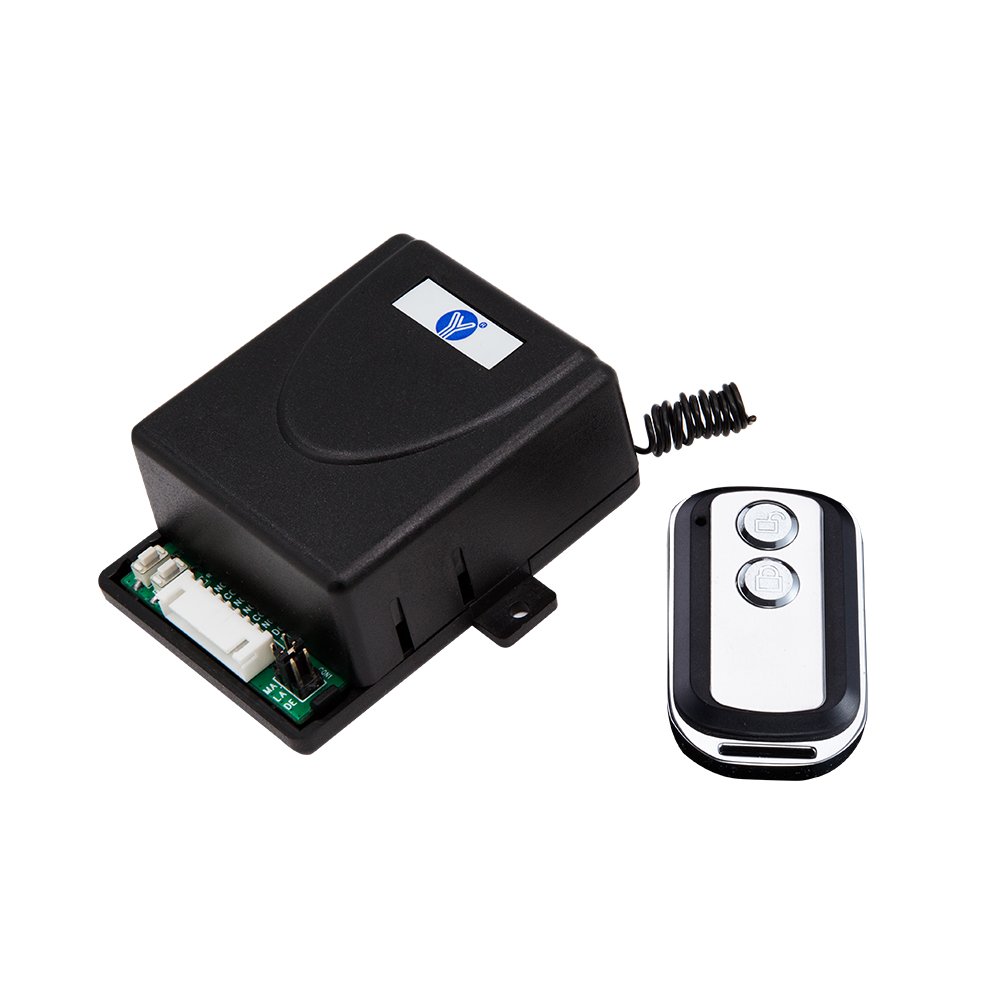

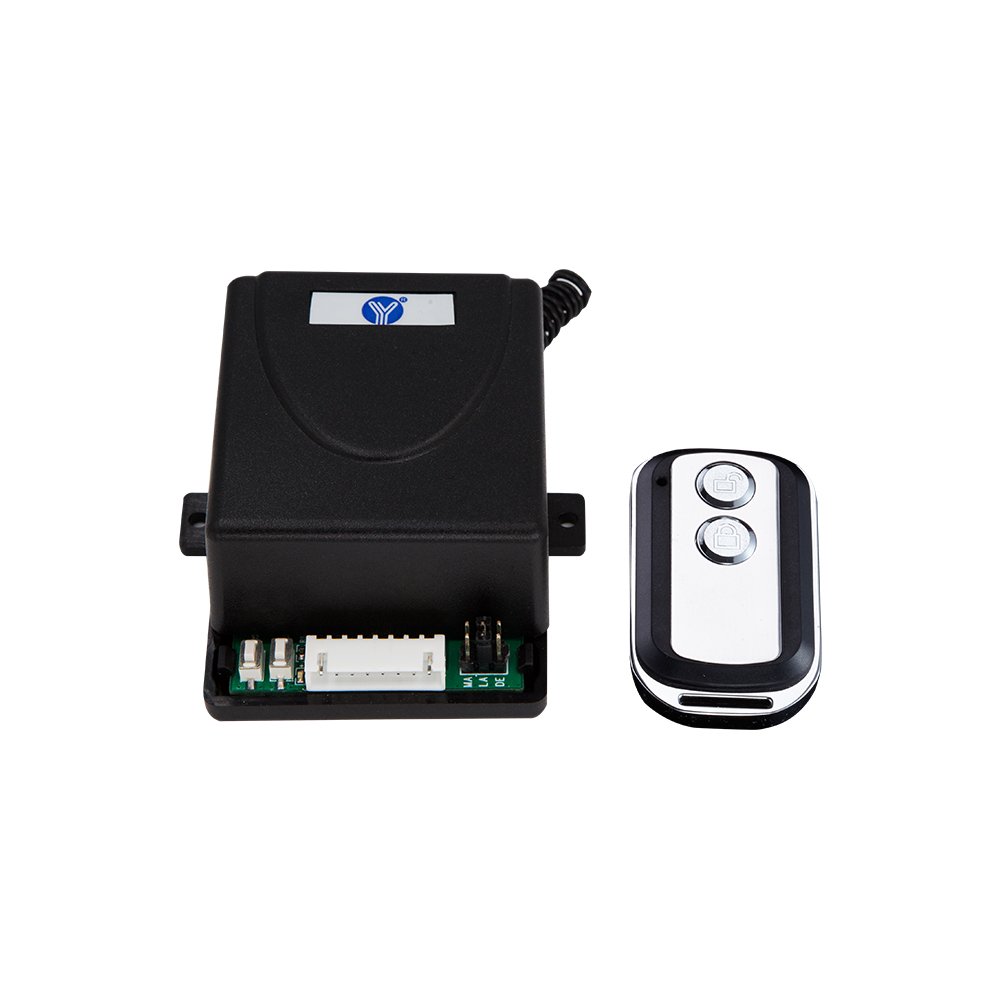

WBK-401-2 is the remote control dedicated to Access Control .with metal transmitter for access control .The Effective Transmission Distance is≥180m.It can be Embedded in the wall easily and be controlled sensitively. What’s more, it adopts the roll code chip to prevent falsity.

SKU: WBK-401-2 Categories: Accessory, Remote Control

Reviews (0)

Technical Parameter

Dimensions	70Lx77Wx32.5H(mm)
Voltage	DC12V/24V (Selectable)
Contact Rating	≤20A@14VDC,5A@250VAC
Current	≤10mA @12V
Frequency	315MHz、433MHz(Selectable)
Capacity	30 (learning code)
Operating Temperature	-10℃-+60℃
Operating Sensitivity	≤-110dBm
Transmitting Distance	≥180m
Weight	0.09kg

Advantage

Simply Operate, Study key for set up
Sensitive Control
Skillful & Beautiful Design
Adopt and Roll a yard of Chips,Defended False Funtions
The Best Choice for Access Contro

Dimension Diagram

Installation Diagram
