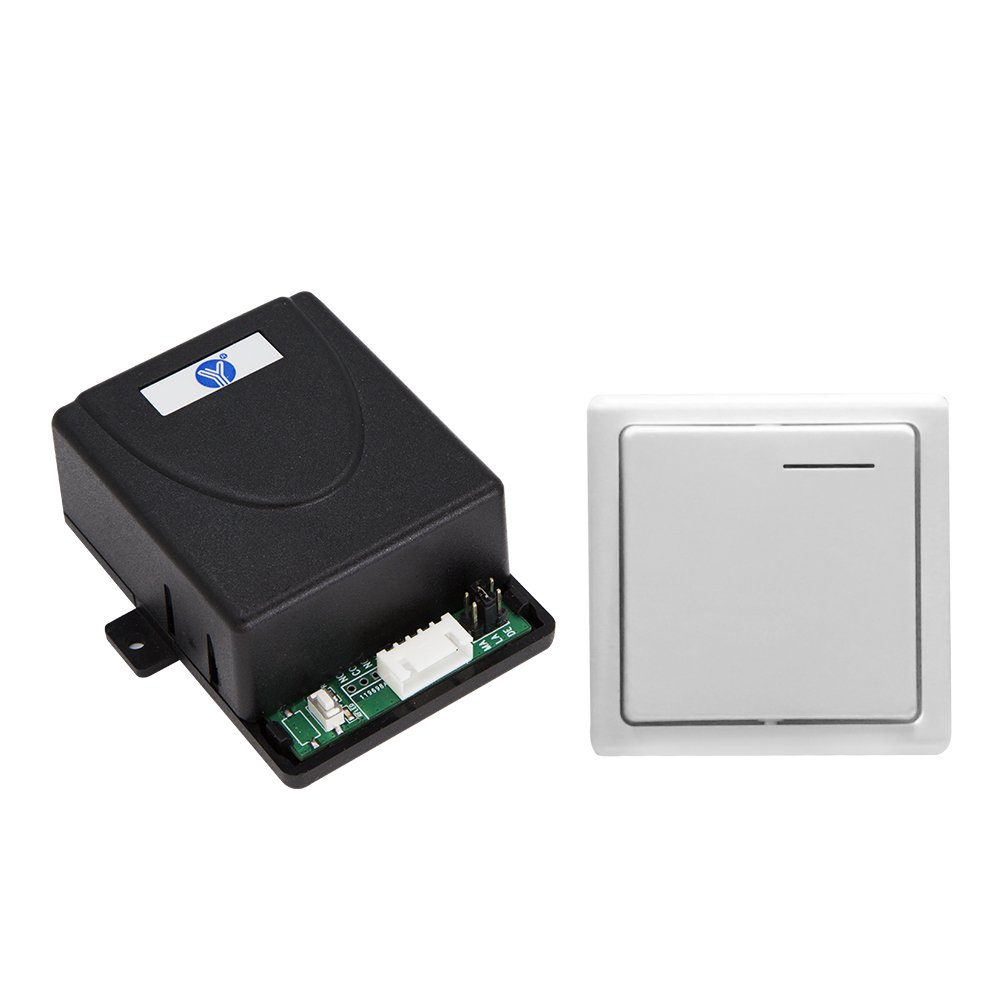

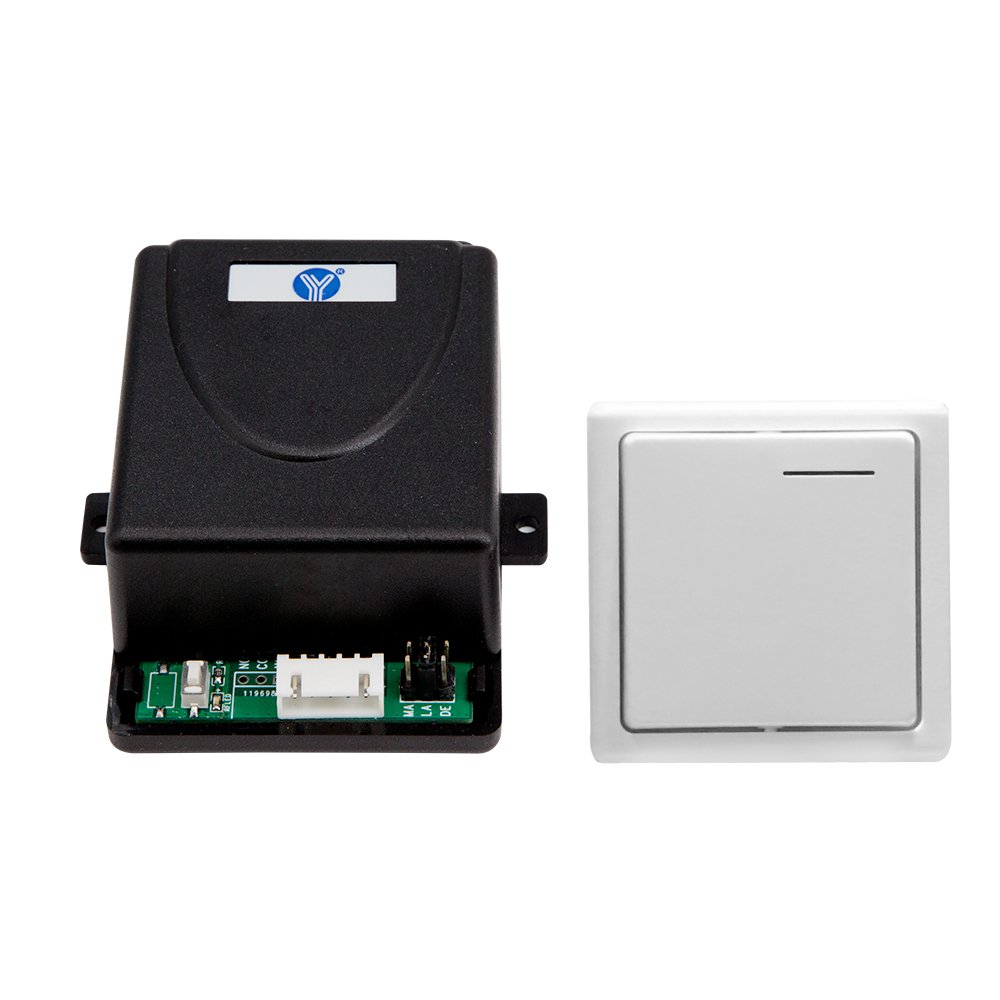

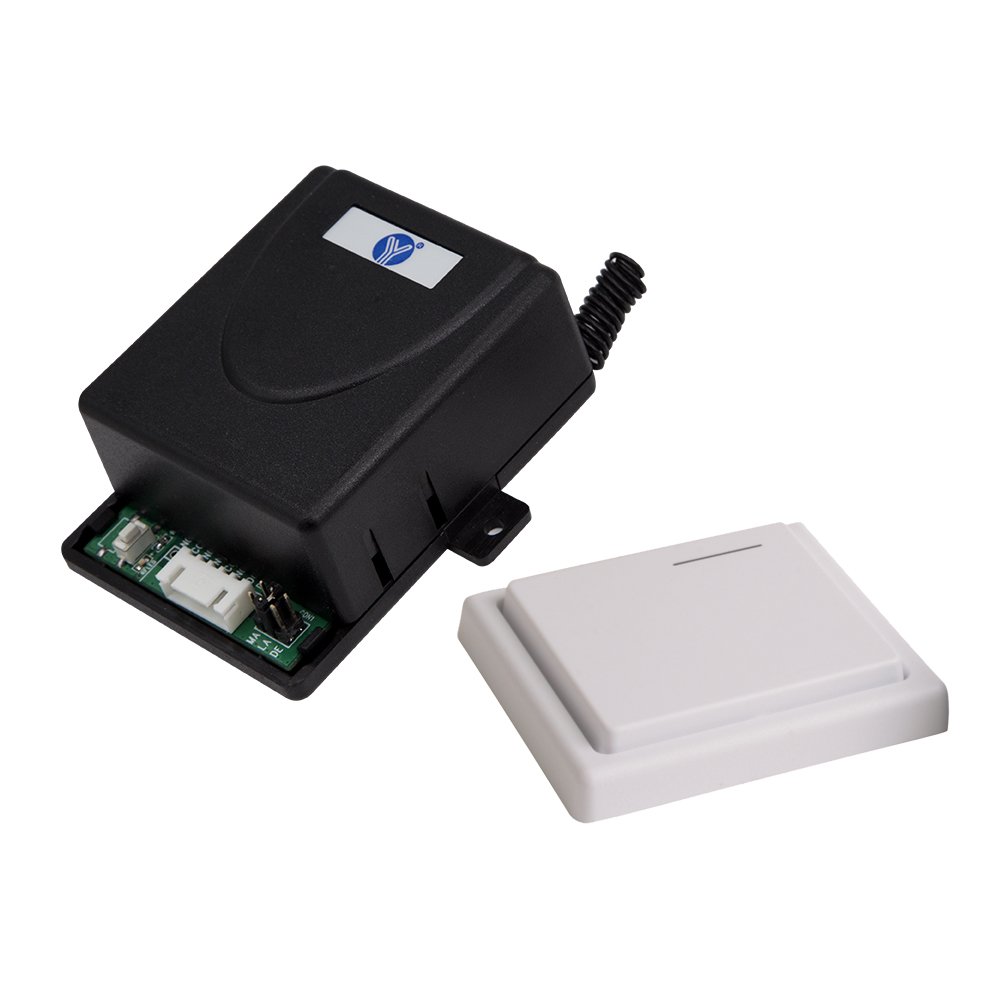

Remote Control

WBK-400RC is the wireless remote controlling switch.with metal transmitter for access control.With NO/NC/ COM Optional Contact Output. It can also penetrate the wall easily and be controlled sensitively. What’s more, it adopts the roll code chip to prevent falsity.

SKU: WBK-400RC Categories: ,

Technical Parameter

Dimensions 58Lx62Wx30H(mm)
Input DC12V/24V (Selectable)
Contact Rating ≤20A@14VDC,5A@250VAC
Current ≤10mA @12V
Frequency 315MHz、433MHz(Selectable)
Capacity 30 (learning code)
Operating Temperature -10℃-+60℃
Operating Sensitivity ≤-105dBm
Transmitting Distance ≥110m
Weight 0.09kg

Advantage

Simple operation, study key for setup
Penetrate into the wall effectively and be controlled sensitively
Delicate and beautiful design with metal transmitter
Adopt roll code chips to prevent falsity
The Best Choice for Access Control

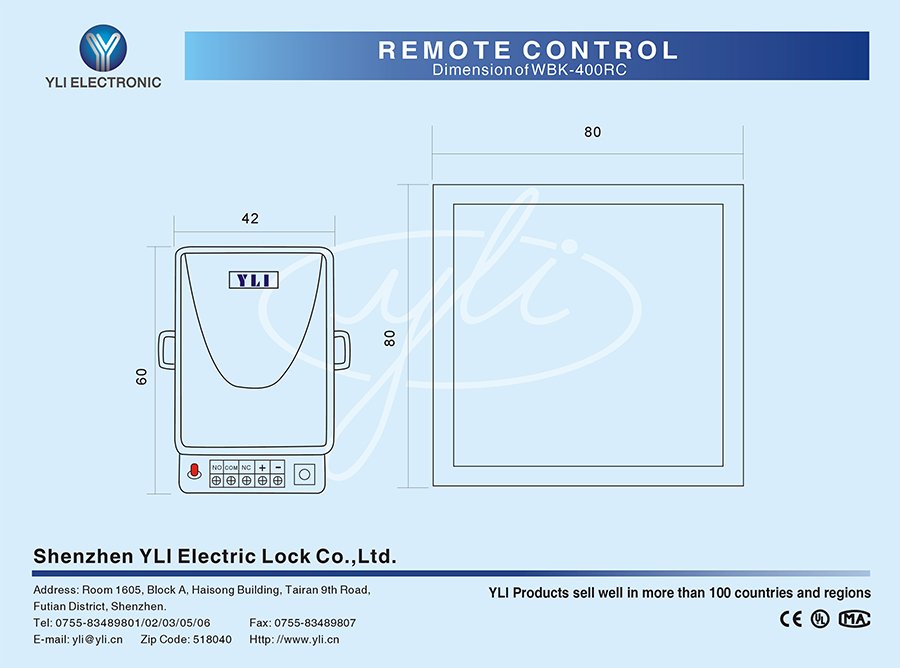

Dimension Diagram

Installation Diagram
