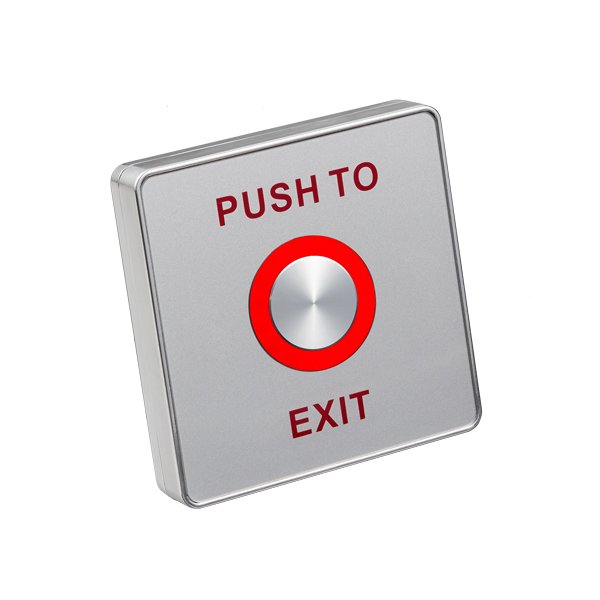

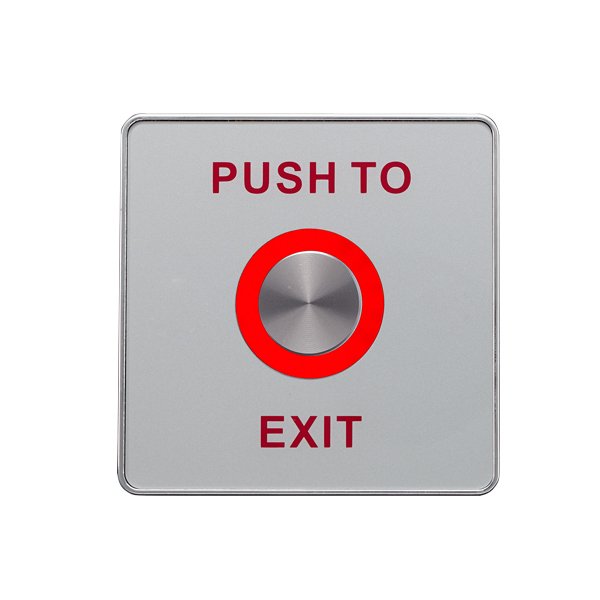

Piezoelectric Exit Button

PBS-821B(LED) ia a Piezoelectric Exit Button with LED, in size of 86Lx86Wx16H(mm), with Luxury , Fashion,Trend ,Technology design.

SKU: PBS-821B(LED) Categories: ,

Technical Parameter

Dimensions 86Lx86Wx16H(mm)
Voltage 12-24V
Current Standby 20mA,Operation: 60mA
Output Contact NO/COM
Current Rating 1A@30VDC 0.5A@125VDC
Waterproof Level IP-65
LED Status Red: Standby Green : Operation
Wire color Red:Positive / Black:Negative / White:NO/COM / Blue: SET Terminal for switch mode
Color Silver
Weight 0.1kg
Certificate CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
Special Design for Top Grade Office , Best Choice for Sophisticated group

Dimension Diagram

Installation Diagram
