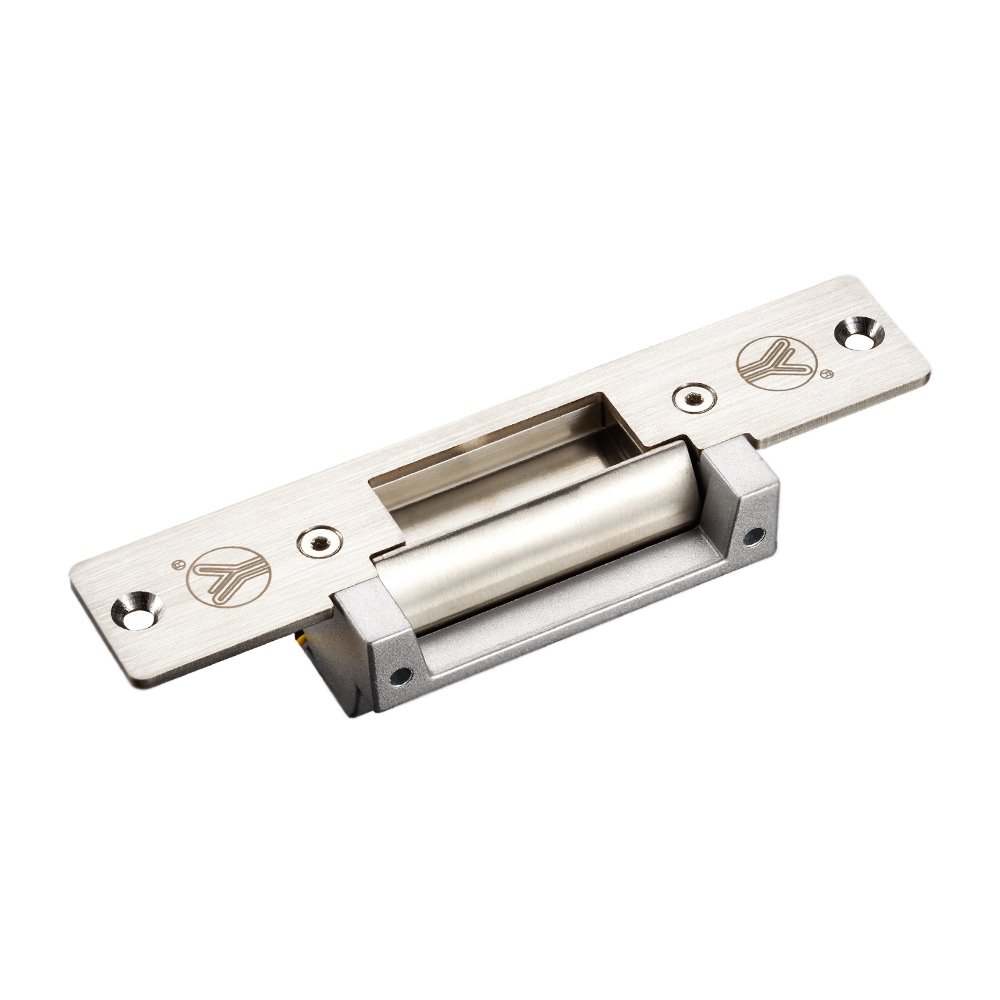

Long Type American Electric Strike

YS-138LNO/NC is designed for wooden door, metal door, PVC door and so on. The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.

SKU: YS-138LNC Category: Electric Strike

Reviews (0)

Technical Parameter

Lock Size	165Lx43.7Wx35H(mm)
Keeper	Stainless Steel
Static strength	500kg
Voltage	DC12V (Need Order DC24V)
Current	12V/320mA(±10%);24V/160mA(±10%)
Feature	Fail Safe (Factory default);Fail Secure (Adjustable)
Suitable For	Wooden Door,Metal Door,PVC Door
Surface Temperature	Within + 20℃
Suitable Temperature	-10~+55℃(14-131F)
Operating Humidity	0～95%(non-condensing)
Face plate Housing	Painted Steel
Function	Built-out MOV
Optional Accessories	YS-305、YS-306
Weight	0.4kg
Patent No.	201320470904.1
Certificate	MA CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Holding 1000kg.
Special design, NO/NC Adjustable
Designed for Metal Frame drill a hole,then install it directly.
Testing to 500000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.

Dimension Diagram

Installation Diagram
