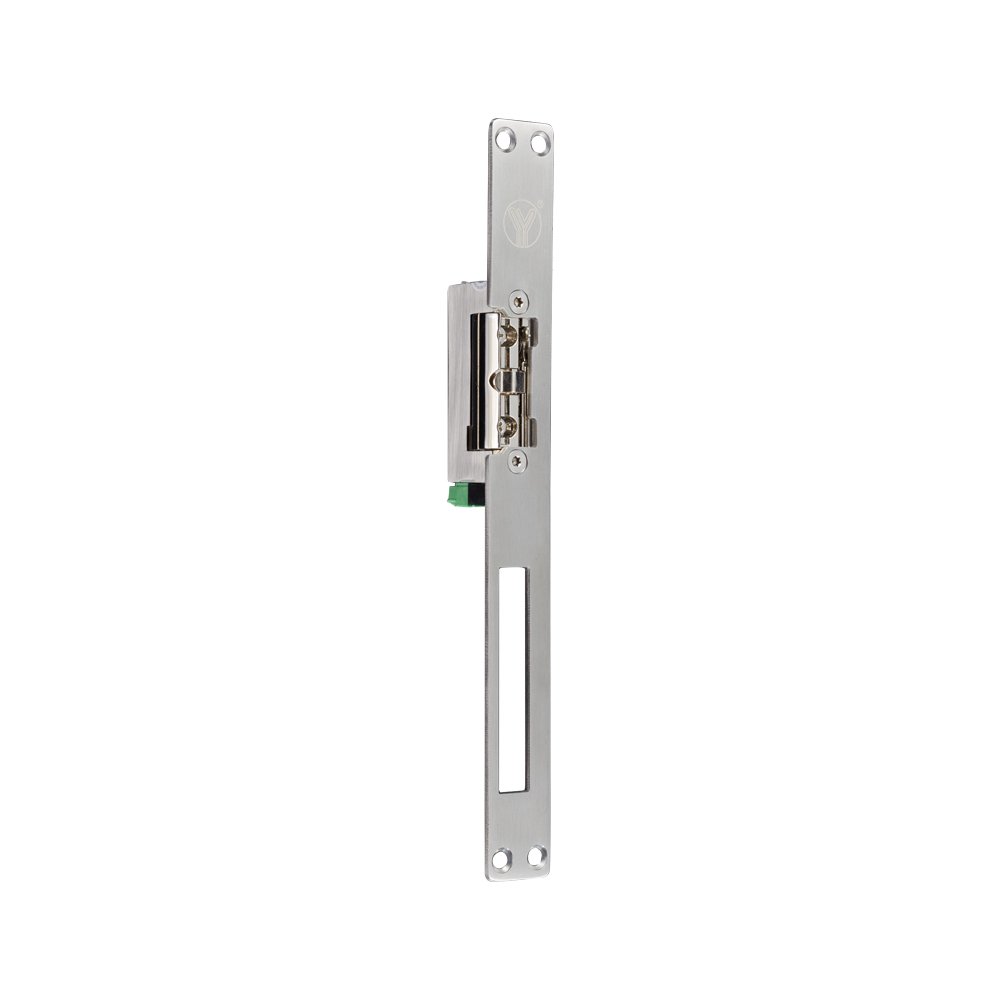

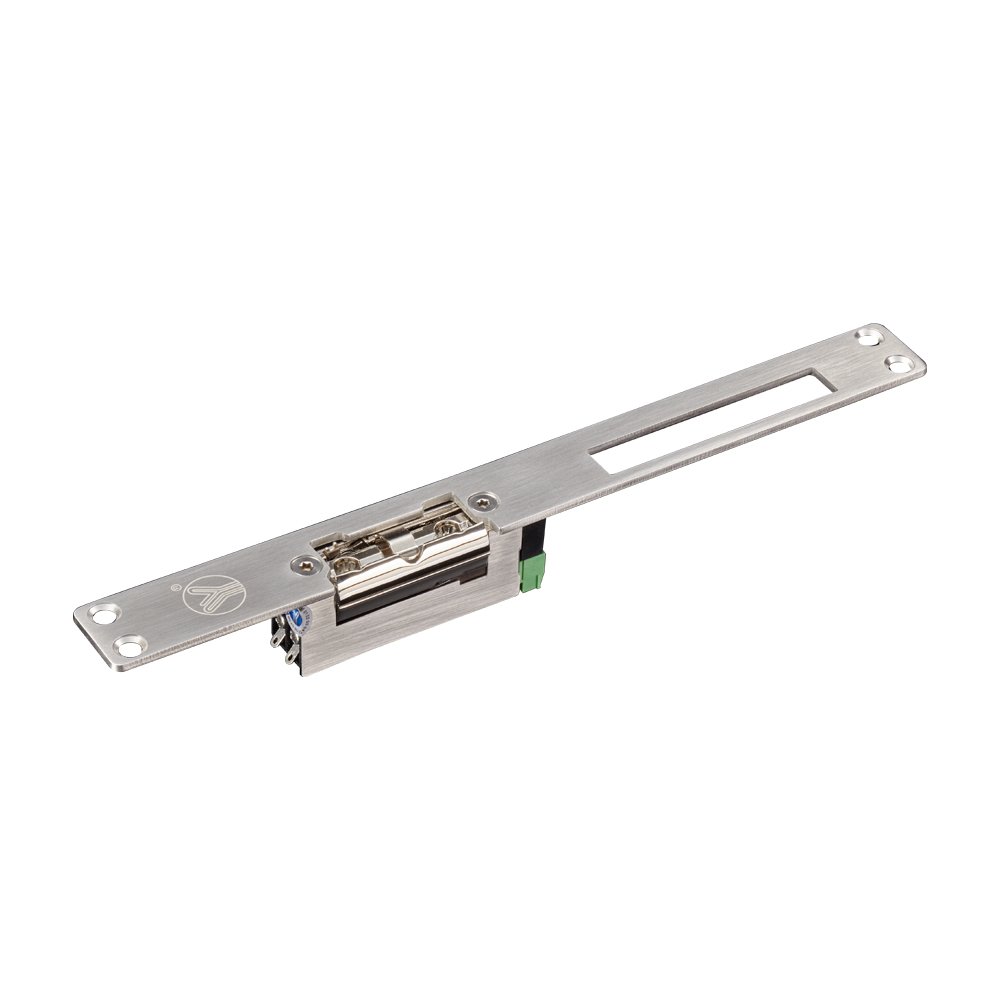

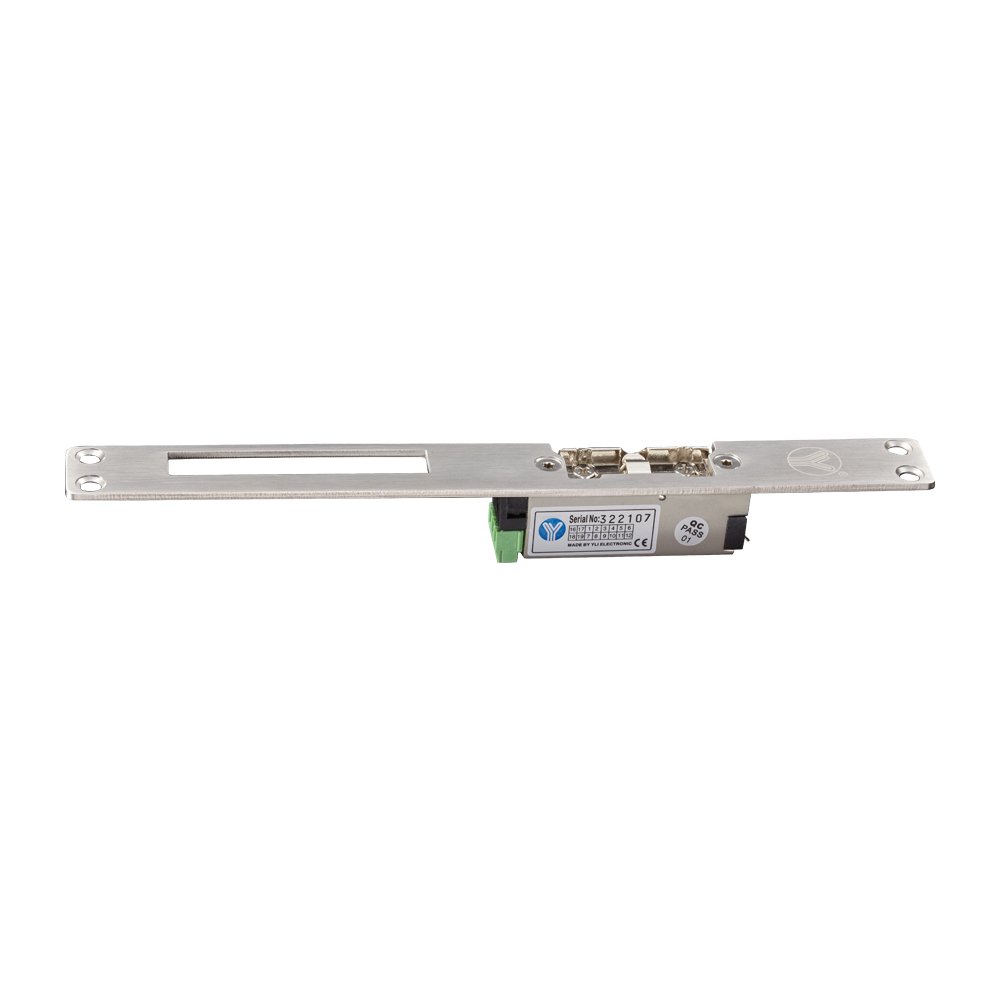

Adjustable Electric Strike

YS-134LK-S/134BLK-S The products of our company is variety and full-equipped. The special design is that the spring bolt can be adjusted to be open all the time.

SKU: YS-134LK-S Category: Electric Strike

Reviews (0)

Technical Parameter

Lock Size	250Lx25Wx28.5H(mm) (YS-134LK-S) / 250Lx25Wx31H(mm) (YS-134BLK-S)
Keeper	Zinc die-casting
Static strength	300kg
Voltage	DC12V （Available DC24V）
Current	12V/280mA(±10%) ; 24V/160mA (±10%)
Special Design	Switch to keep unlocked
Suitable For	Narrow Wooden Door,Narrow Metal Door
Surface Temperature	Within +20℃
Suitable Temperature	-10~+55℃(14-131F)
Operating Humidity	0～95%(non-condensing)
Face plate Housing	Surface by coating nickel
Function	Built-out MOV
Operating Mode	NO (Normally Close)
Optional Accessories	YS-308
Weight	0.35kg
Certificate	MA CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Holding 300kg.
Special design,easy to adjust the distance of the Lock-tongue.
Designed for Metal Frame drill a hole,then install it directly.
Testing to 100000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.

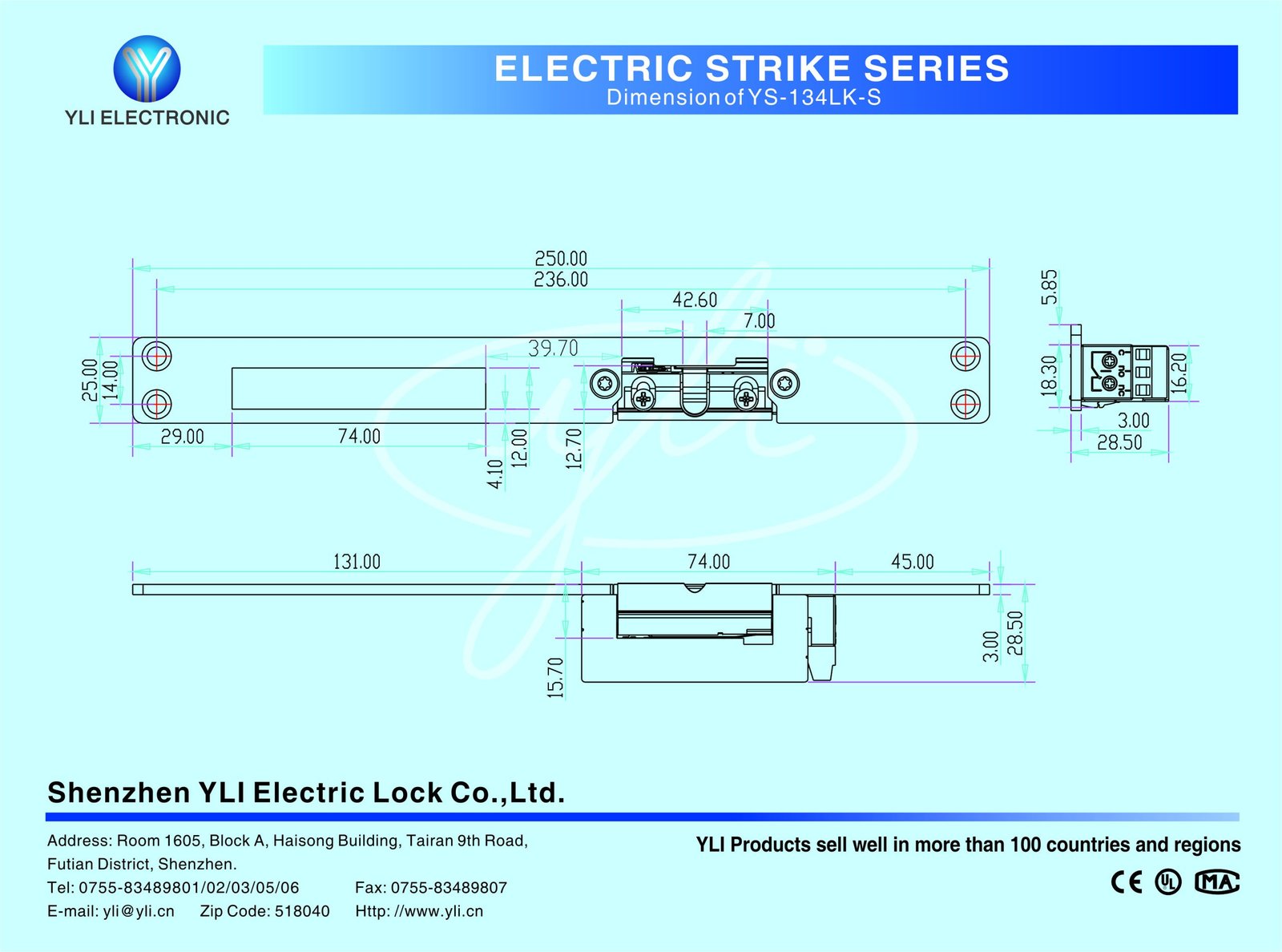

Dimension Diagram

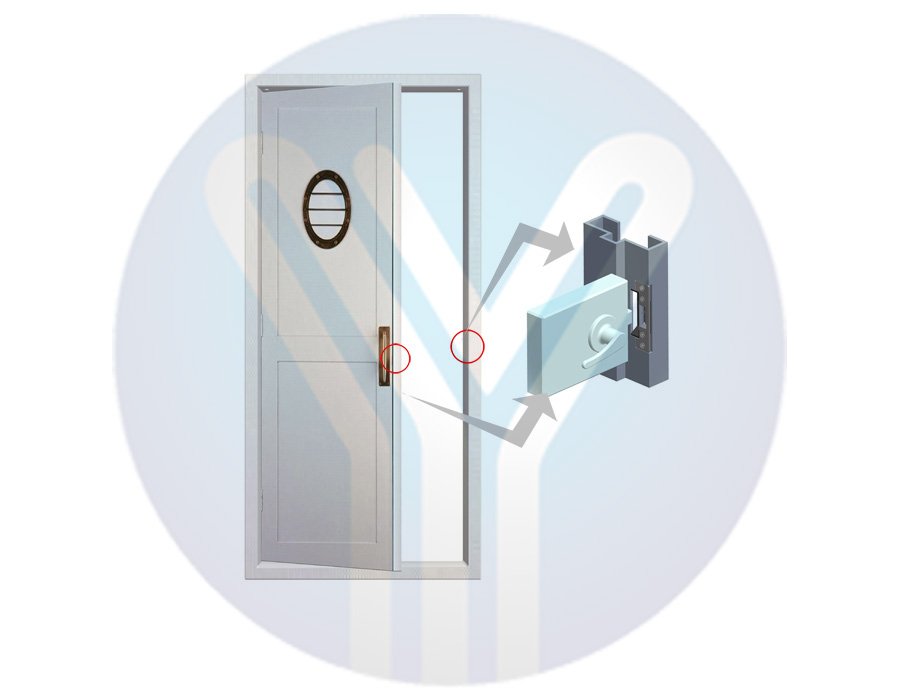

Installation Diagram
