Technical Parameter
| Lock Size | 150Lx39.5Wx33.5H(mm) |
| Keeper | stainless steel precision casting |
| Static strength | 500kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | NO:12V/240mA(±10%); 24V/120mA(±10%) / NC:12V/200mA(±10%); 24V/100mA(±10%) |
| Feature | Fail Secure(YS-130NO-S) ;Fail Safe(YS-130NC-S) |
| Signal Output | Lock Status OutputNO/NC/COM |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Surface Temperature | Within + 20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0～95%(non-condensing) |
| Function | Built-out MOV |
| Optional Accessories | YS-305 YS-306 |
| Weight | 0.4kg |
| Certificate | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
Advantage

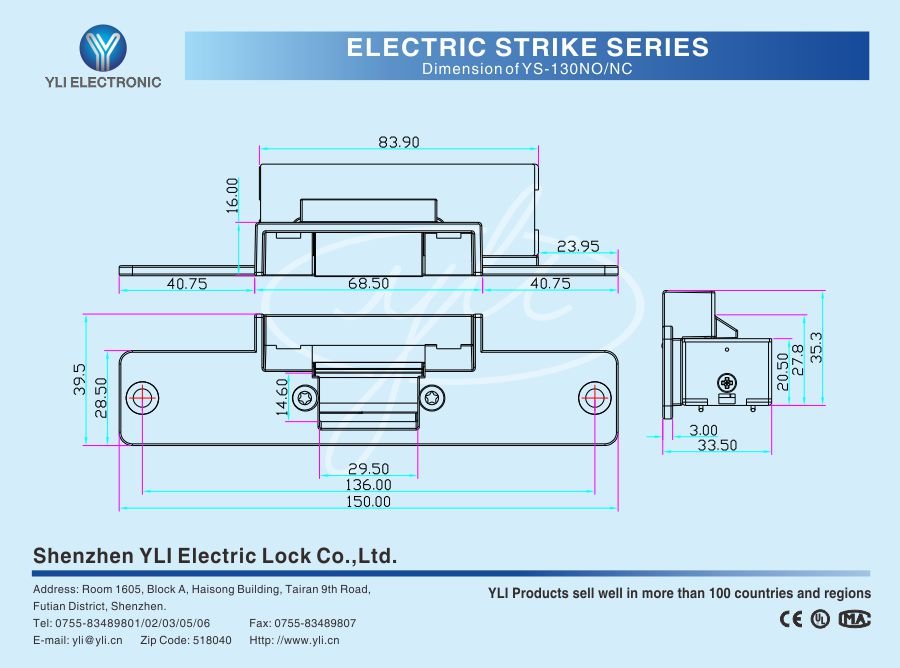

Dimension Diagram

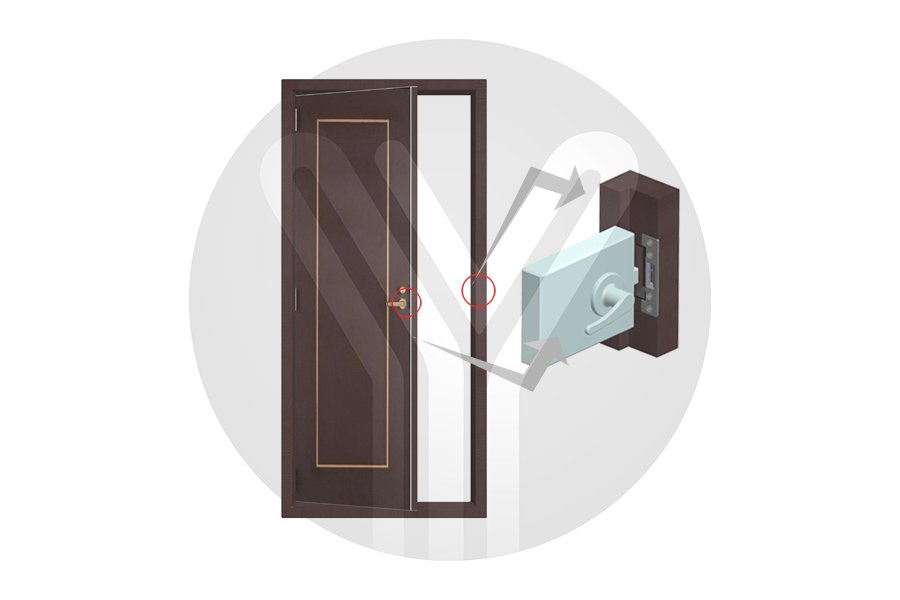

Installation Diagram
