Technical Parameter

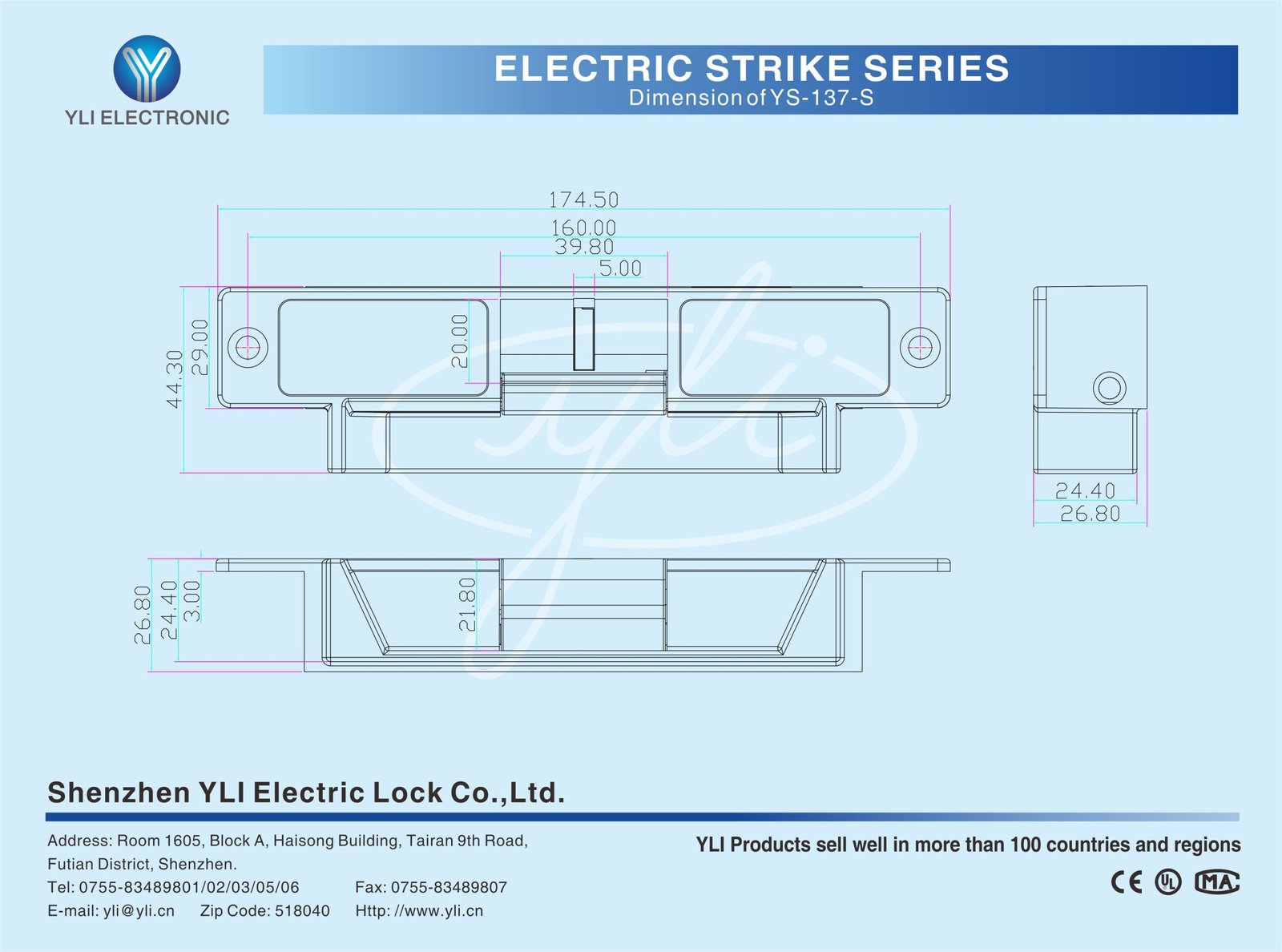

Lock Size | 174Lx44Wx27H(mm) |
Keeper | 304 Stainless Steel |
Static strength | 1000kg |
Voltage | DC12V (Need Order DC24V) |
Current | 12V/320mA;24V/160mA |
Signal Output | Lock Status OutputNO/NC/COM |
Panel selection | Stainless steel, high strength aluminumalloy |
Suitable For | Wooden Door,Metal Door |
Surface Temperature: | Within + 20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~95%(non-condensing) |
Face plate Housing | Painted Steel |
Lock tongue | Surface by coating nickel |
Function | Built-out MOV |
Optional Accessories | YS-305 YS-306 |
Weight | 0.5kg |
Certificate | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
