Technical Parameter

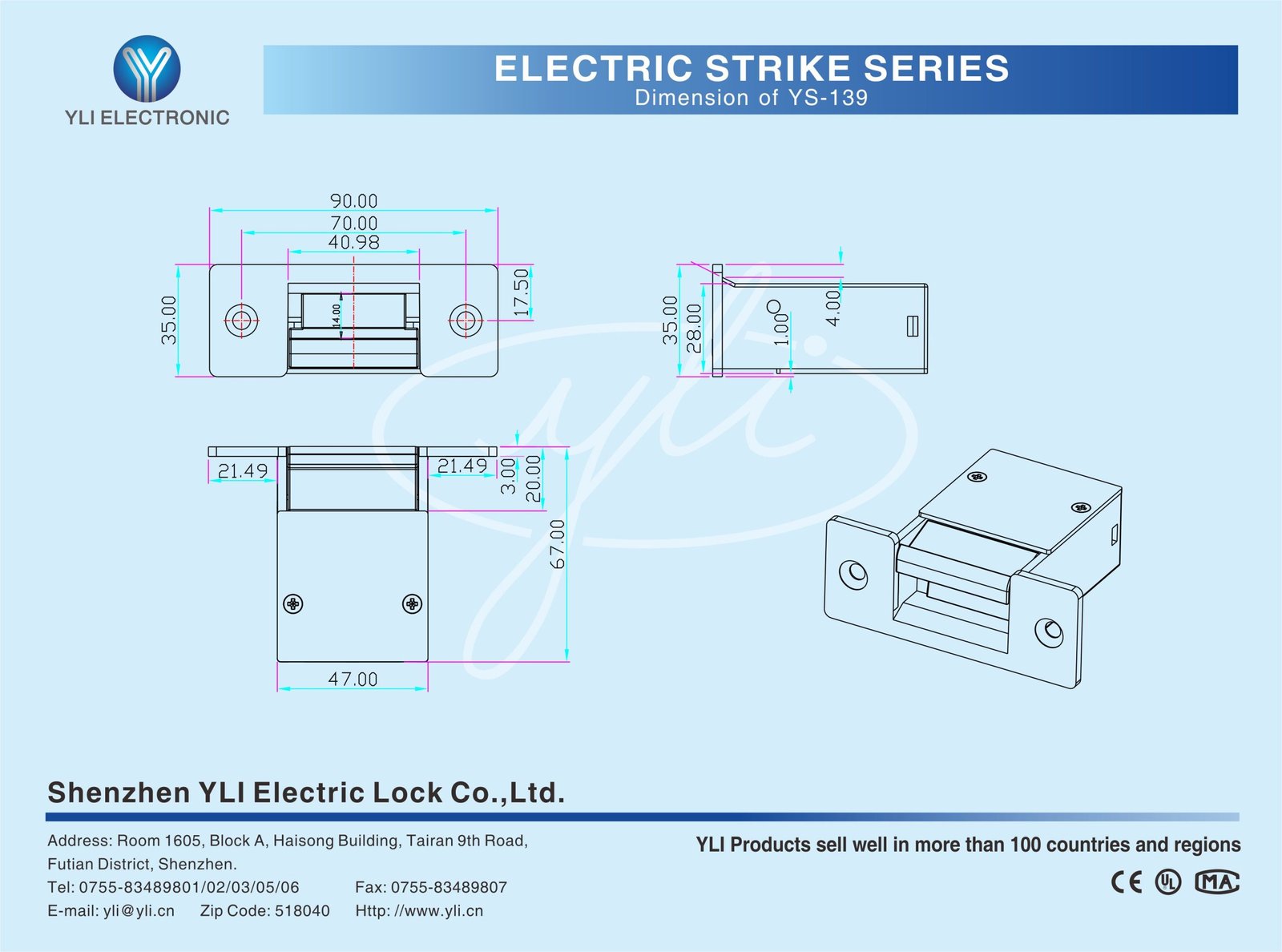

Lock Size | 90Lx35Wx67H(mm) |
Keeper | Stainless Steel |
Static strength | 500kg |
Voltage | 12/24 VDC/AC |
Current | 12V/550mA(±10%); 24V/1100mA(±10%) |
Feature | Fail Secure |
Suitable For | Wooden Door,Metal Door,PVC Door |
Surface Temperature | Within + 20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~95%(non-condensing) |
Face plate Housing | Painted Steel |
Function | Built-out MOV |
Weight | 0.3kg |
Certificate | CE-EMC CE-LVD FCC-VOC REACH WEEE |
