Technical Parameter

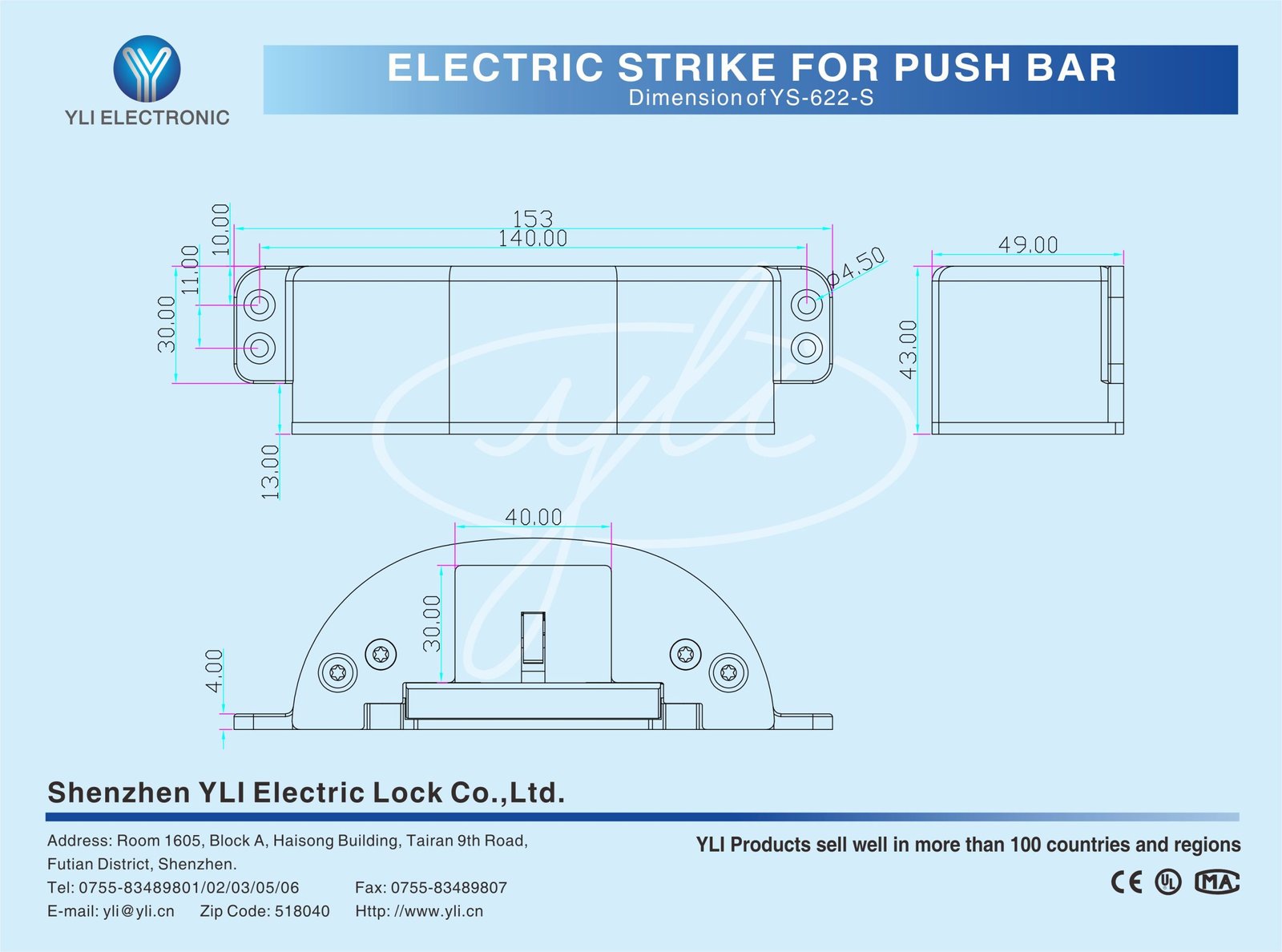

Lock Size | 153Lx43Wx49H(mm) |
Keeper | 304 Stainless Steel |
Static strength | 1000kg |
Voltage | DC12C (24V need order) |
Current | 12V/320mA(±10%);24V/160mA(±10%) |
Signal Output | Door sensor NO/NC/COM |
special design | applies to all brands of fire push rod lock |
Suitable For | European & American fire push bar |
Surface Temperature | Within + 20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~95%(non-condensing) |
Face plate Housing | High temperature paint |
Lock tongue | Surface by coating nickel |
The door open | 90 degrees |
Weight | 0.52kg |
Certificate | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
