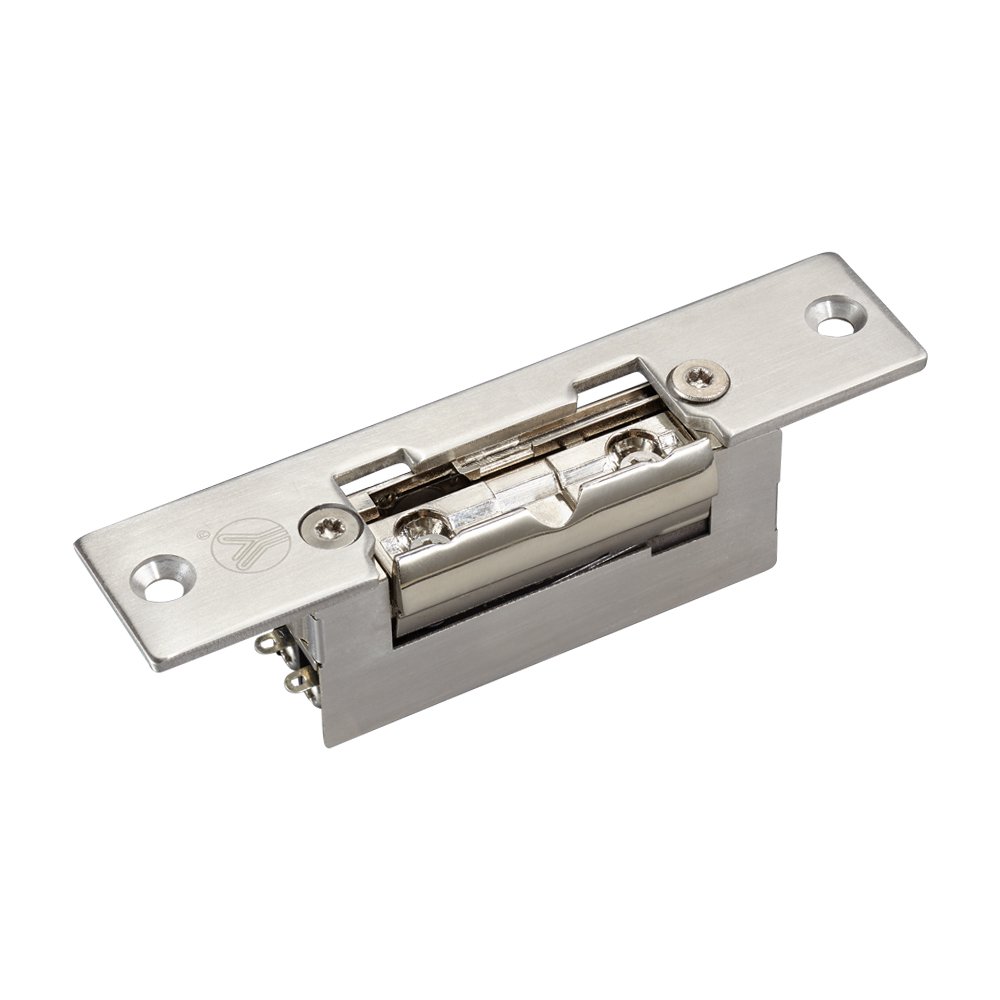

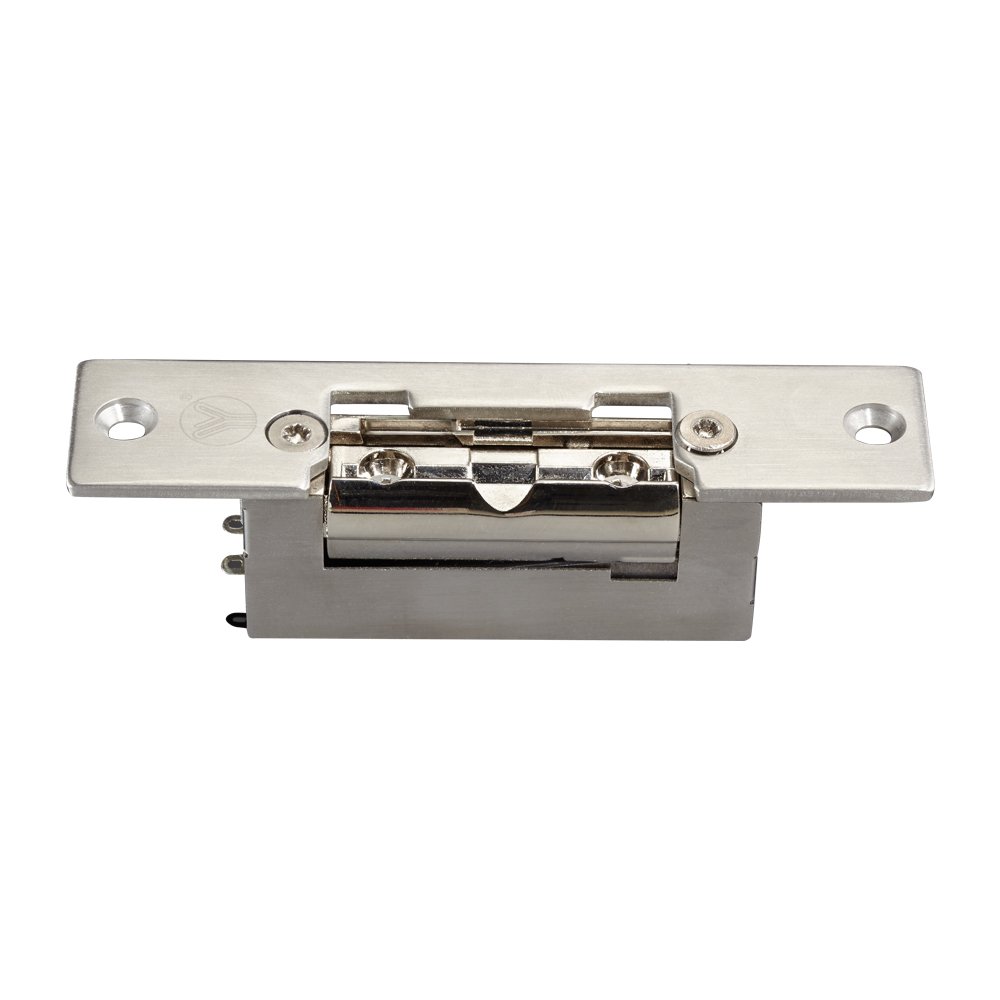

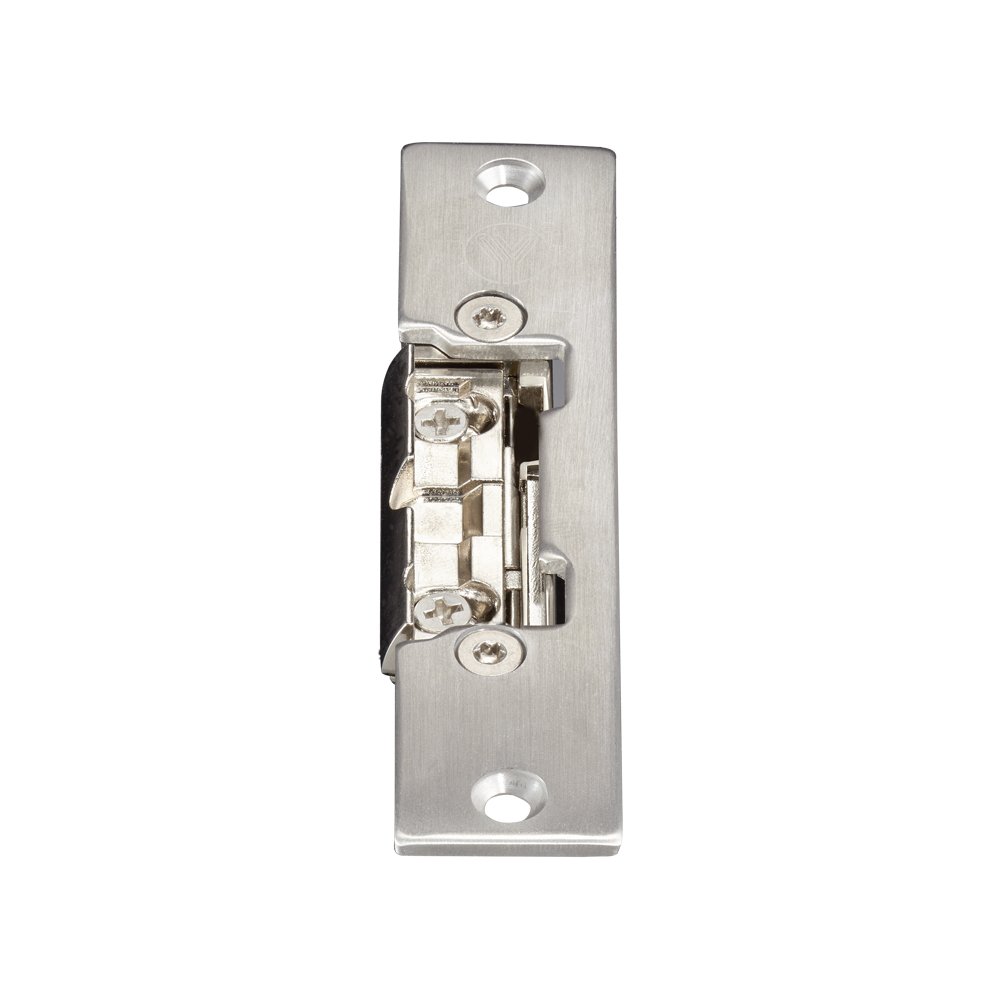

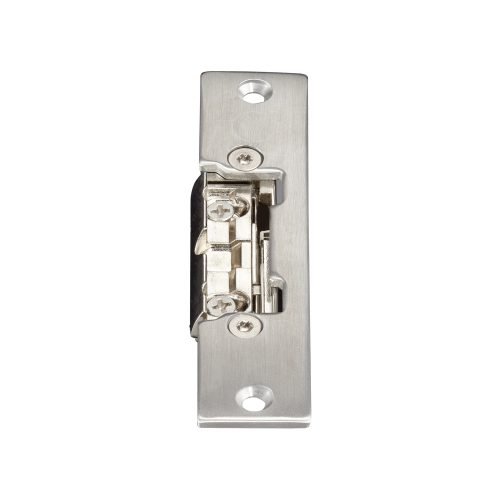

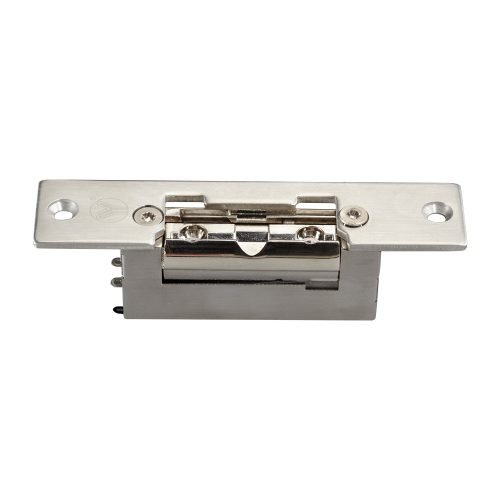

European Narrow-type Electric Strike

YS-134/134B is designed for the glass door without frame.The special design is that the spring bolt can be adjusted to be open all the time.The products of our company is variety and full-equipped.

SKU: YS-134 Category: Electric Strike

Reviews (0)

Technical Parameter

Lock Size	110Lx24Wx28.5H(mm) (YS-134) / 120Lx24Wx31H(mm) (YS-134B)
Keeper	Zinc die-casting
Static strength	300kg
Voltage	DC12V （Available DC24V）
Current	12V/280mA(±10%) ; 24V/160mA(±10%)
Suitable For	Narrow Wooden Door,Narrow Metal Door
Surface Temperature	Within +20℃
Suitable Temperature	-10~+55℃(14-131F)
Operating Humidity	0～90%(non-condensing)
Face plate Housing	Surface by coating nickel
Function	Built-out MOV
Feature	Fail Secure(NO)
Optional Accessories	YS-307
Weight	0.28kg
Certificate	MA CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Holding 300kg.
Special design,easy to adjust the distance of the Lock-tongue.
Designed for Metal Frame drill a hole,then install it directly.
Testing to 100000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.

Dimension Diagram

Installation Diagram
