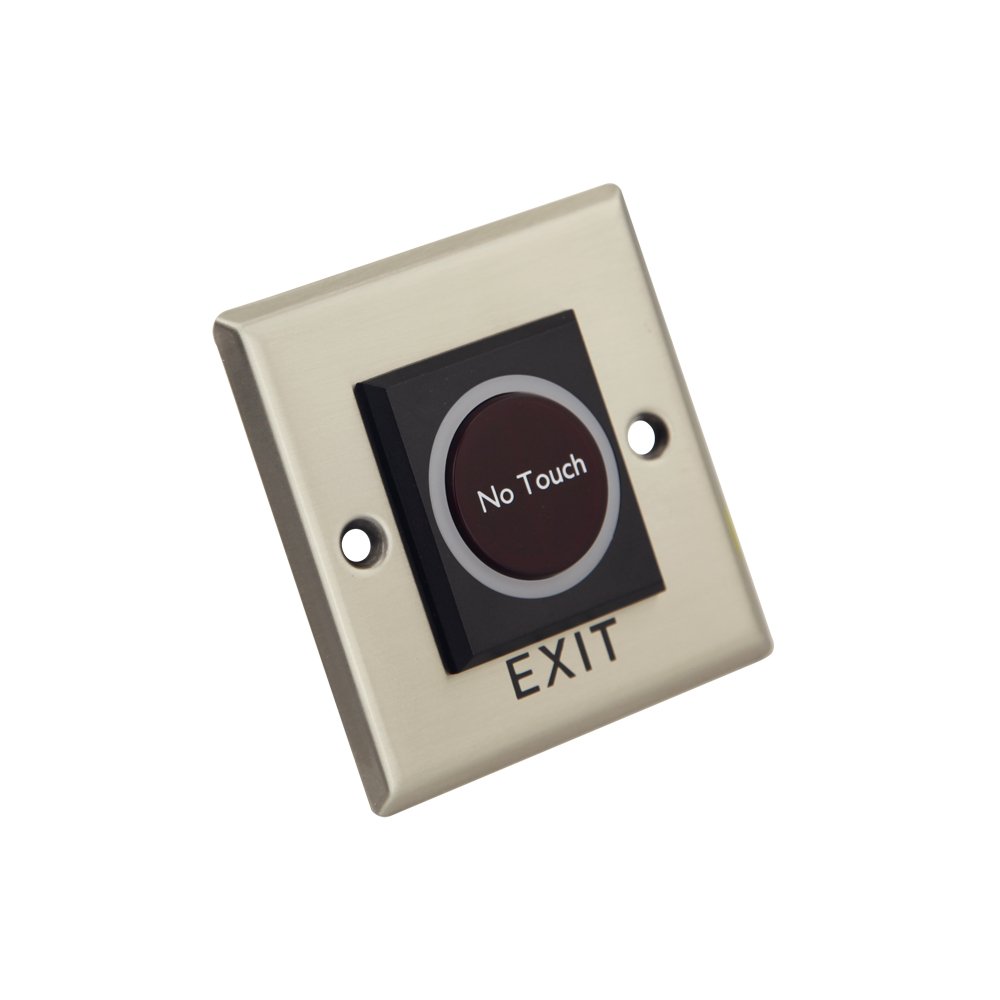

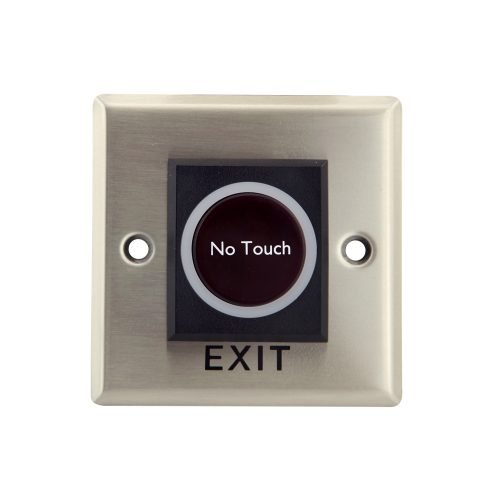

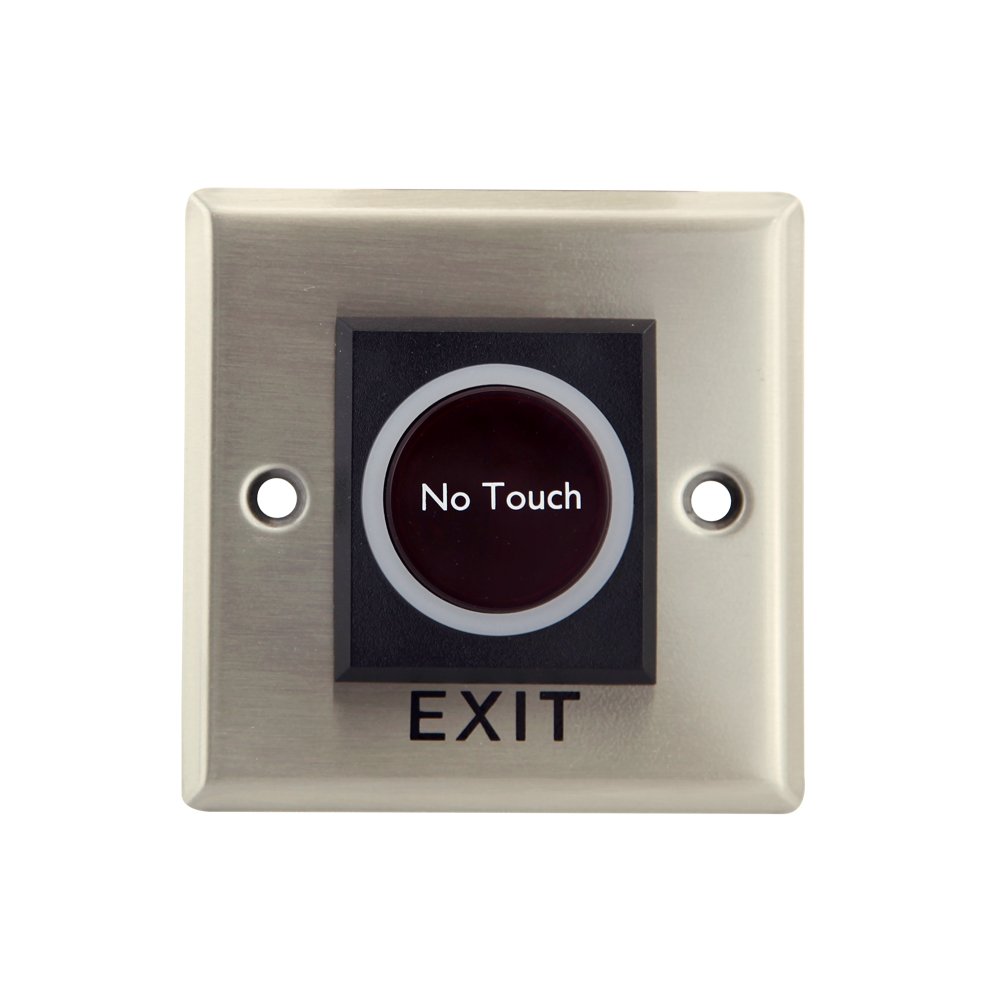

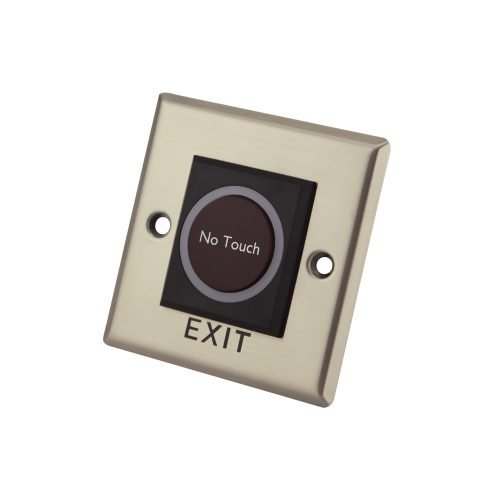

Infrared Sensor Exit Button

ISK-840B is an Infrared Sensor Exit Buttonin size of 86Lx86Wx29H(mm) suitable for all kinds of locks. Blue LED Lighting. Induction distance 0.1-10cm.

SKU: ISK-840B(LED) Categories: ,

Technical Parameter

Dimensions 86Lx86Wx40H(mm)
Input DC12V-24V
Contact Rating 1A@36VDC
Output Contact NO/NC/COM
Operating temp -20℃～+55℃(14-131F)
Suitable Humidity 0-95% (relative humidity)
Detection range 0.1—10cm
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC

Advantage

Suitable for all kinds of Locks.
The Best Choice for Access Control .

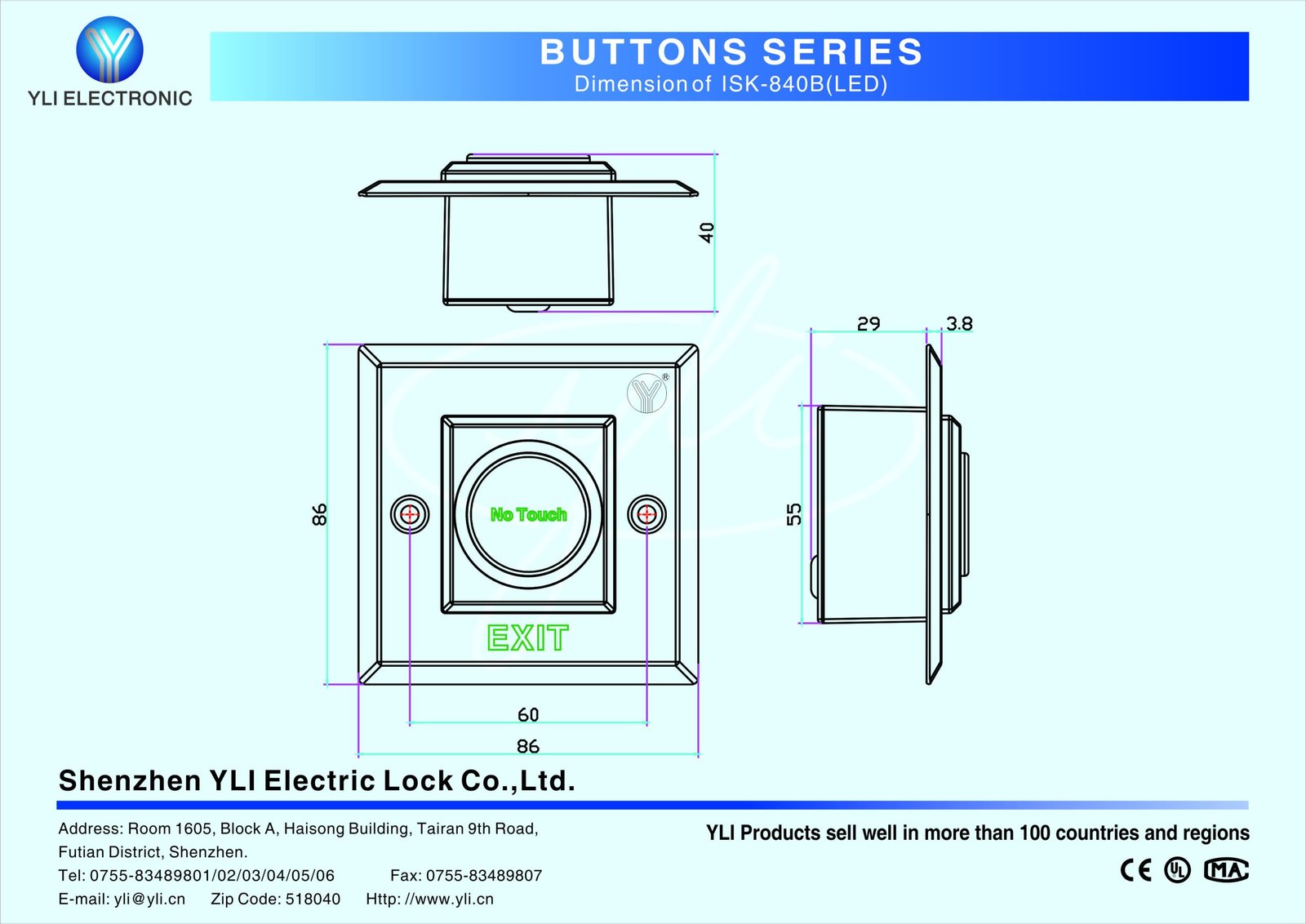

Dimension Diagram

Installation Diagram
