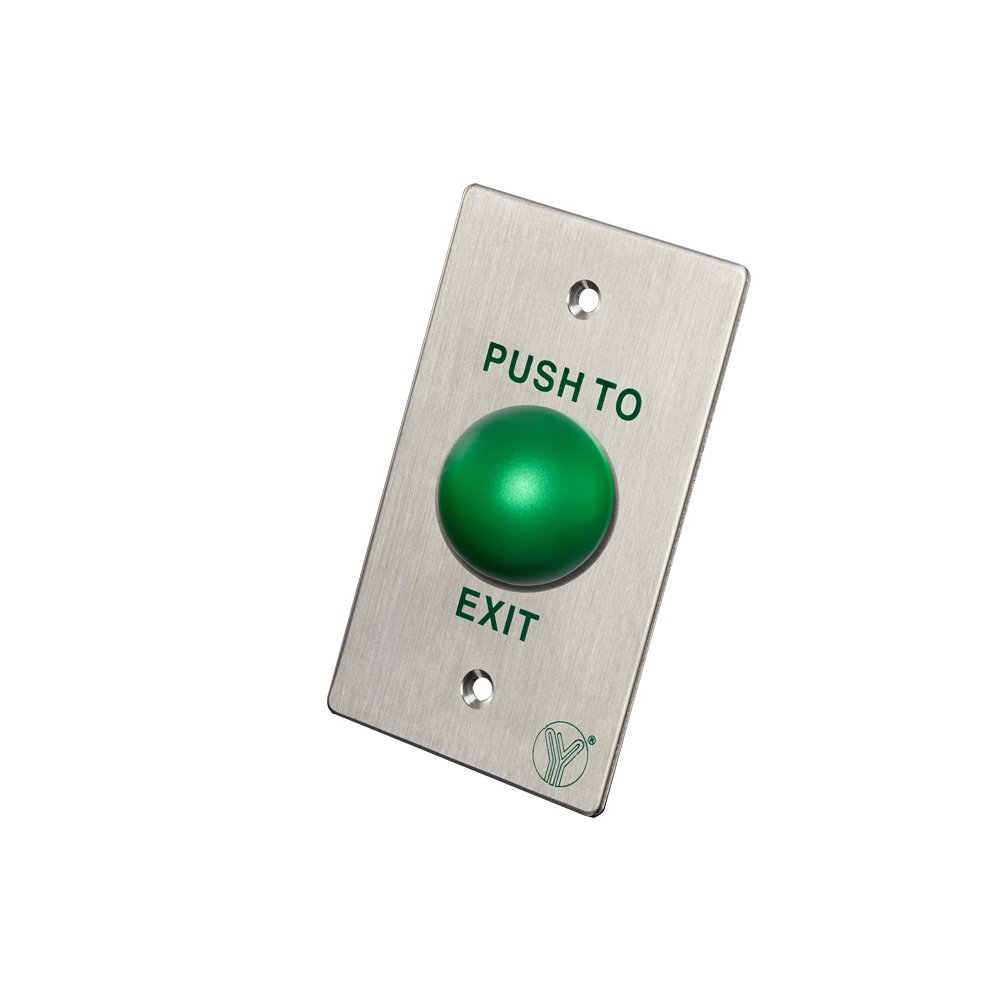

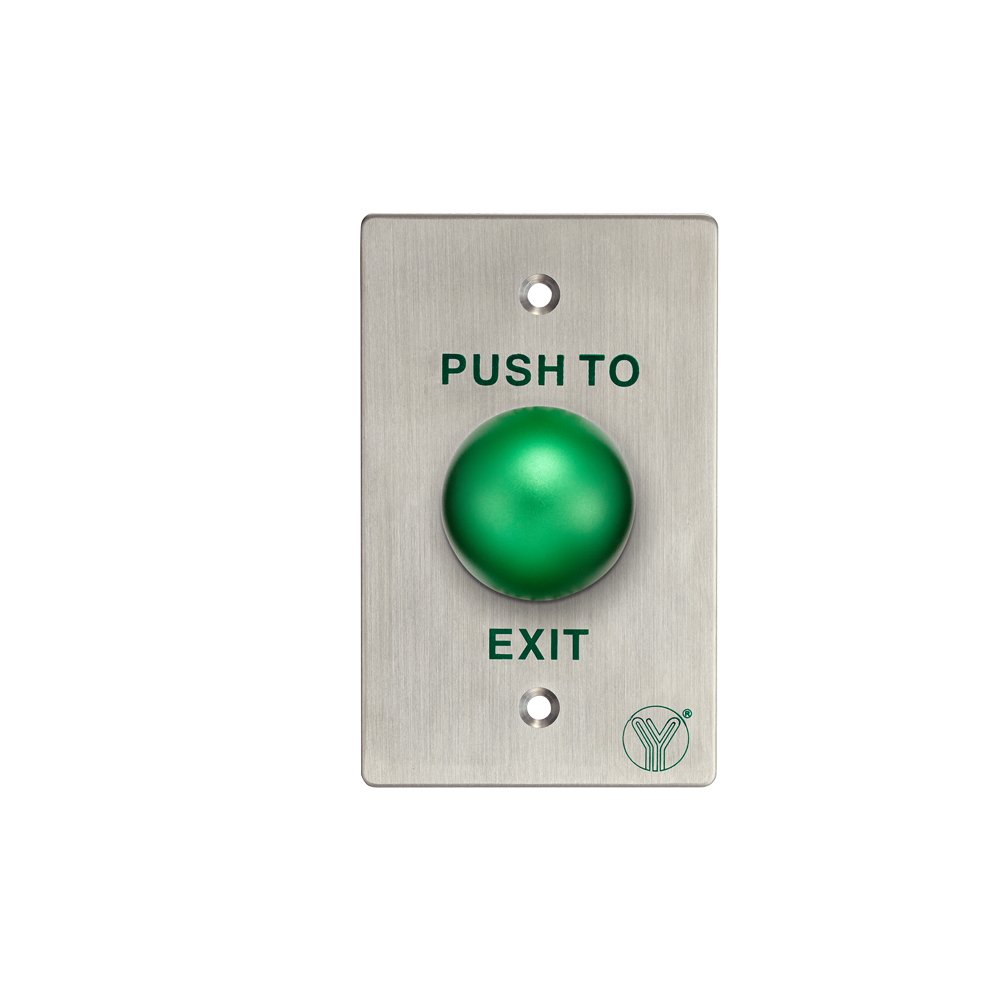

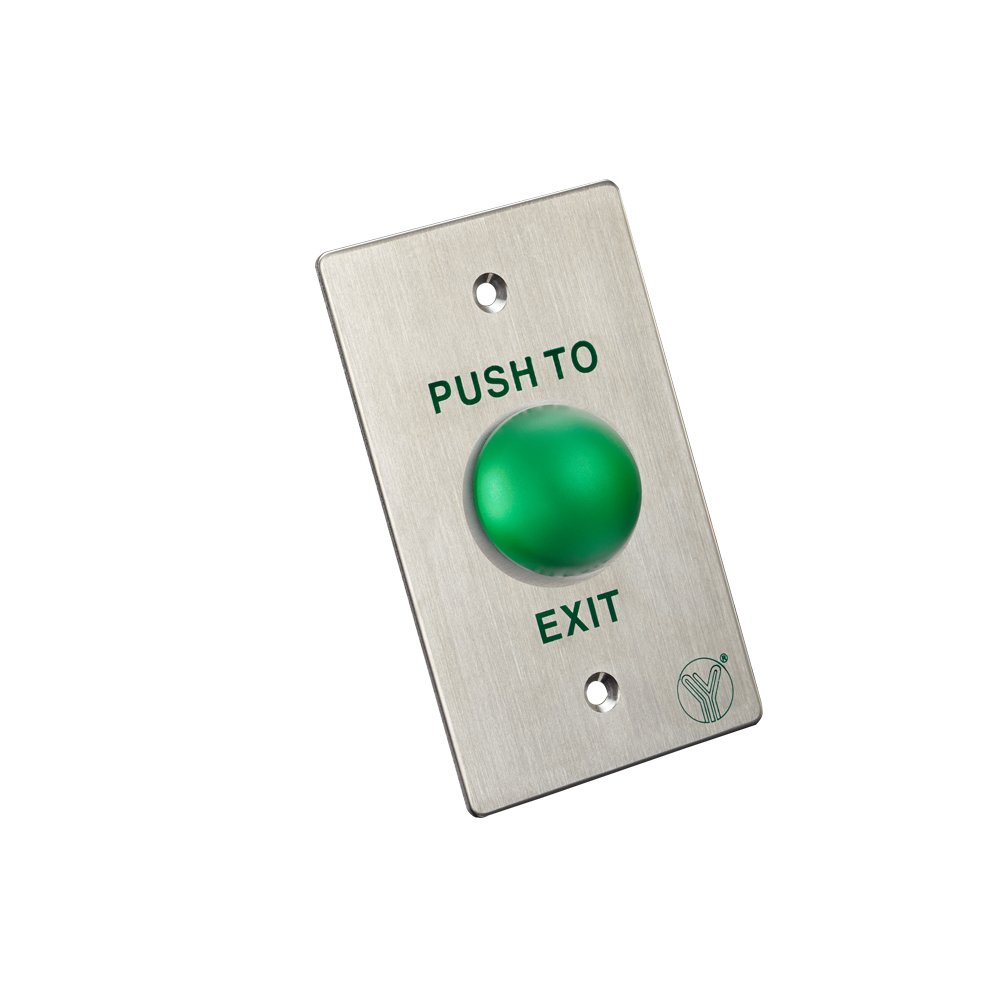

Door Release Button (Waterproof)

PBK-818C is a door release button with stainless steel palte with size of 114Lx70Wx40.1H(mm), which can be match use with back box.

SKU: PBK-818C-WP Categories: Exit Button, Waterproof Exit Button

Reviews (0)

Technical Parameter

Dimensions	114Lx70Wx40.1H(mm)
Standard structure	304 stainless steel panel with metal button
Current rating	3A@36VDC Max
Output contact	NO/NC/COM
Mechanical life	100000 tested
Suitable for door	All kinds of doors
Waterproof Level	IP67
Operating temp	10～+55(14-131F)
Operating humidity	0-95% (relative humidity)
Panel Material	304 stainless steel panel with wiredrawing finish
Weight	0.2kg
Certificate	CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style.
With the Bottom Box, Easy to Install.
100000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

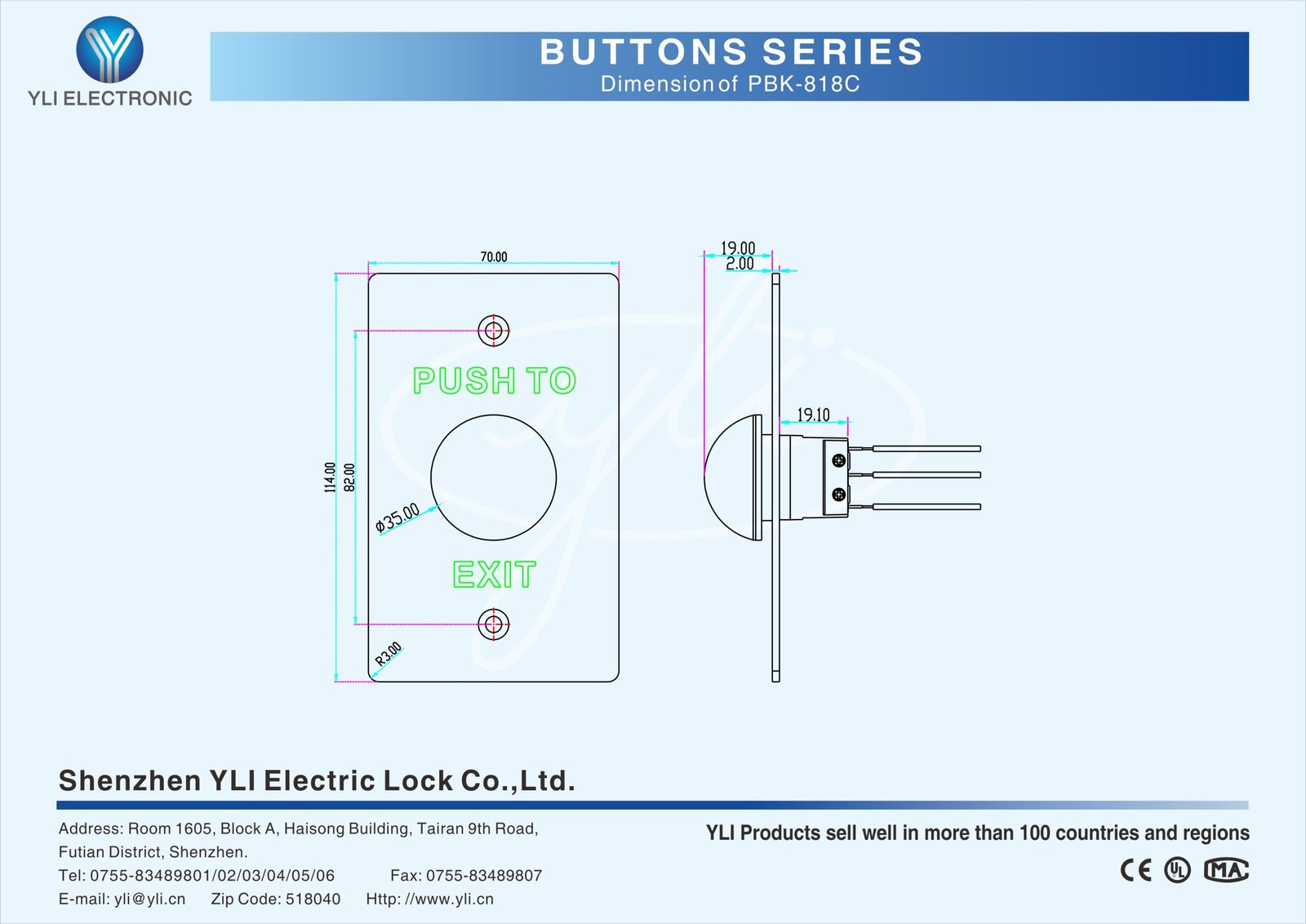

Dimension Diagram

Installation Diagram
