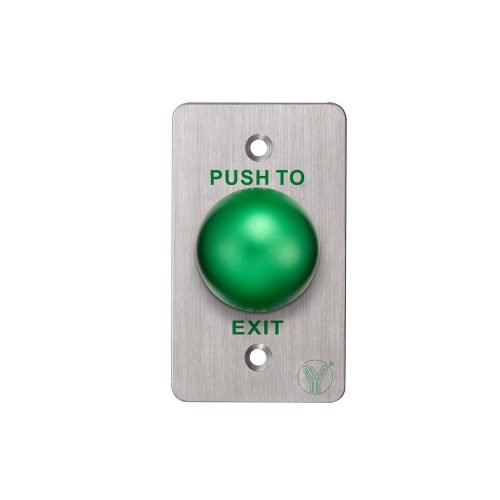

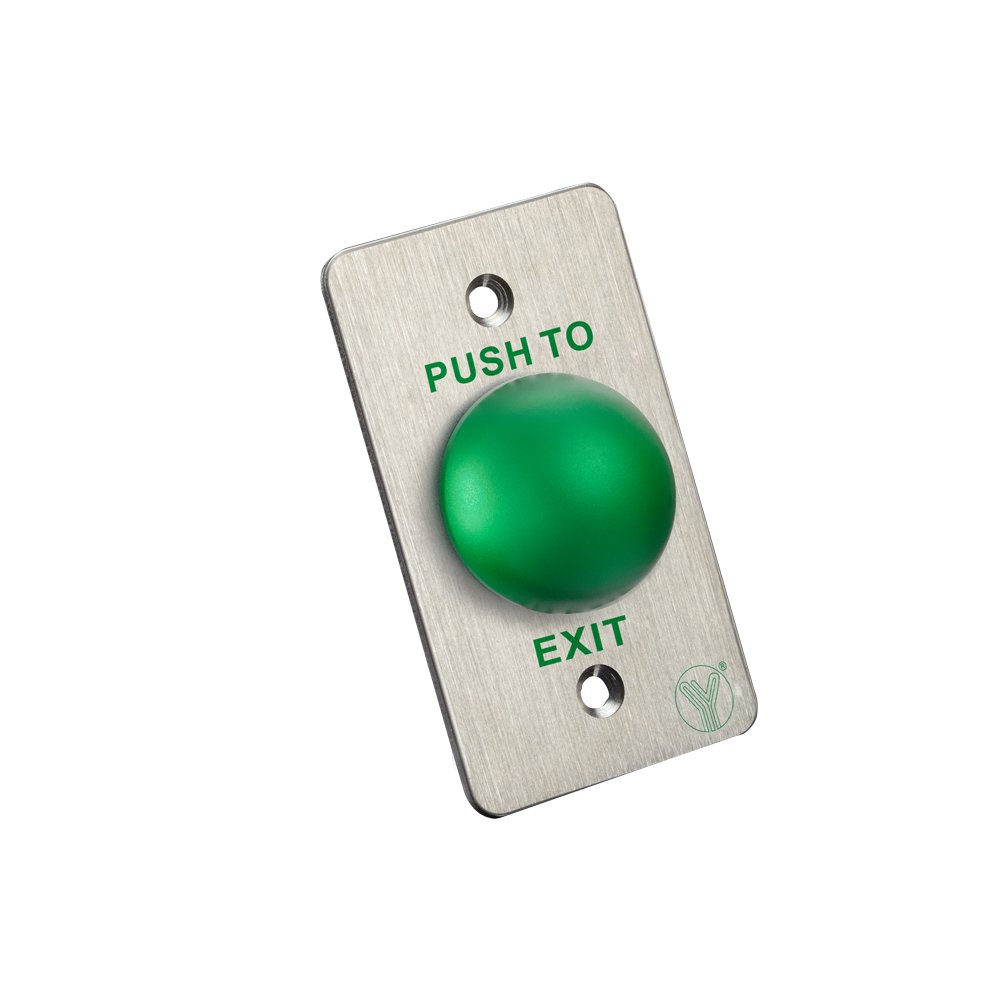

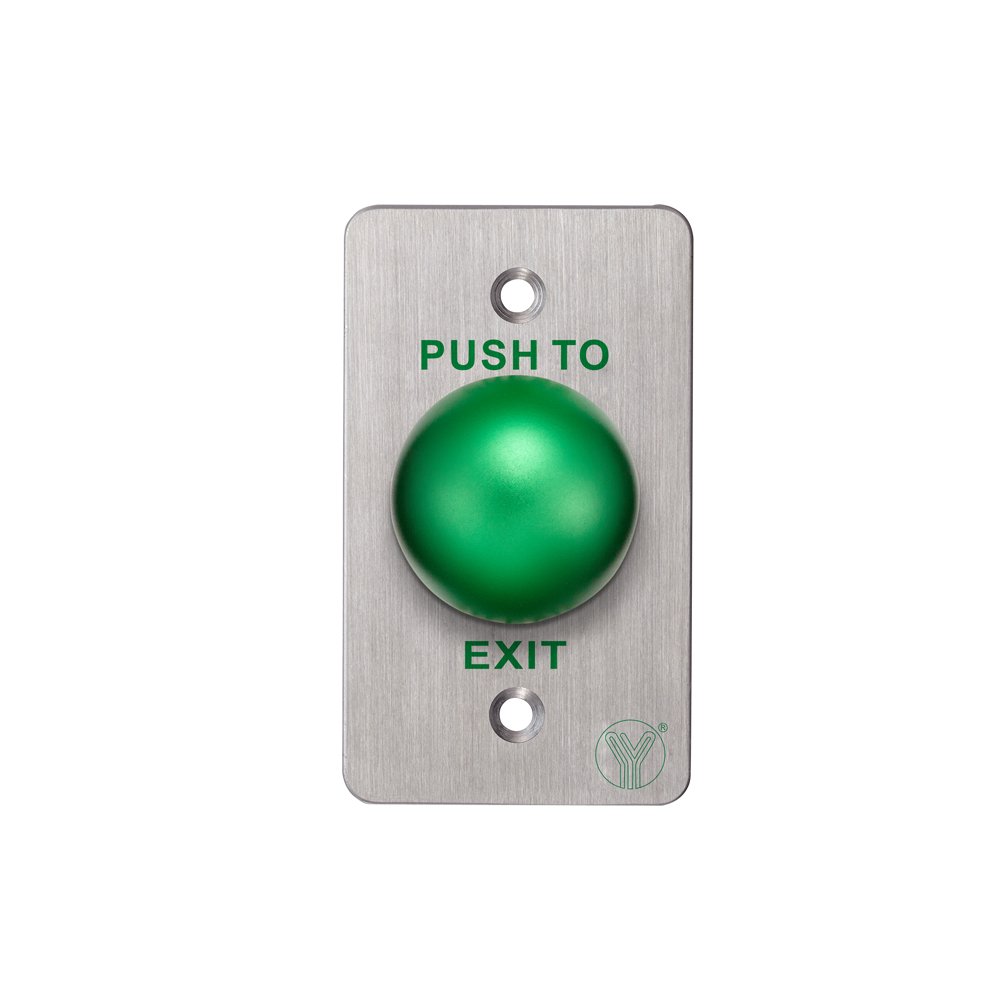

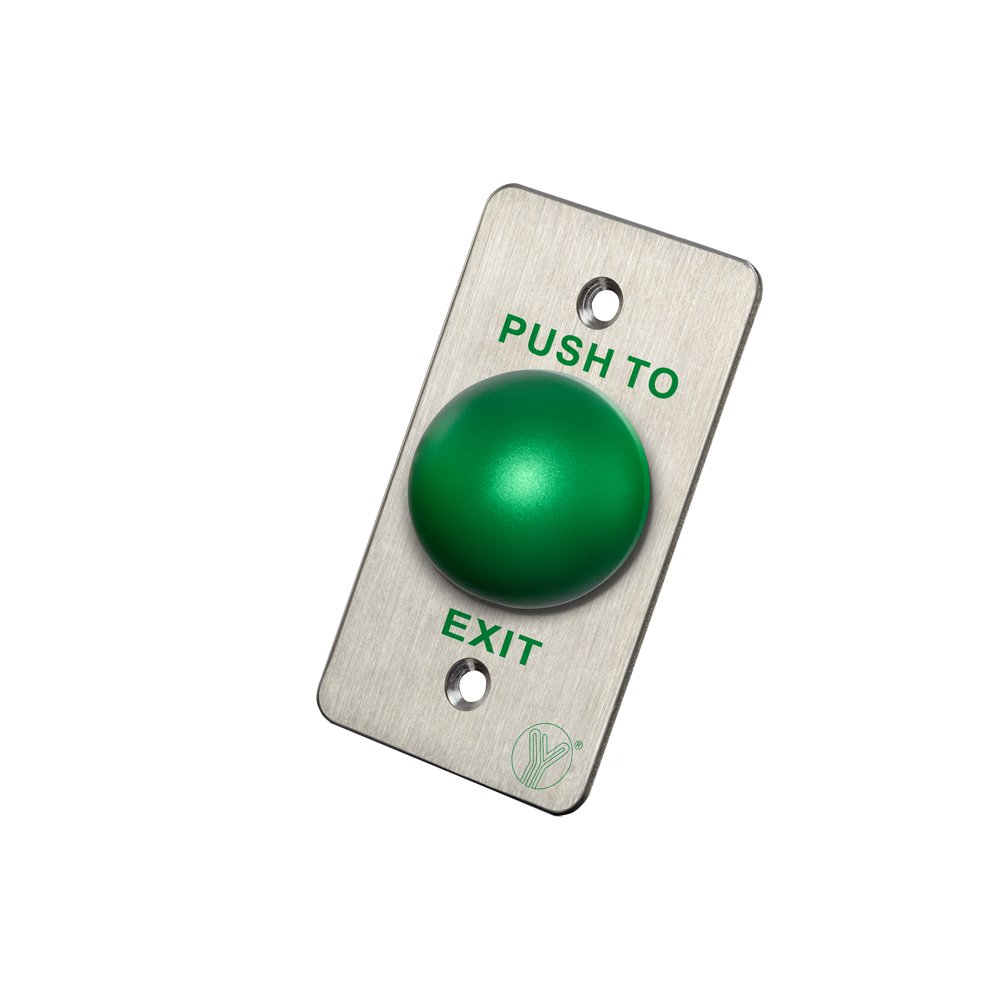

Door Release Button (Waterproof)

PBK-818A is a door release button with stainless steel palte with size of 86Lx50Wx40.1H(mm), which is the most common and the most frequently used in the access control systems.

SKU: PBK-818A-WP Categories: ,

Technical Parameter

Dimensions 86Lx50Wx40.1H(mm)
Standard structure 304 stainless steel panel with metal button
Current rating 3A@36VDC Max
Output contact NO/NC/COM
Mechanical life 100000 tested
Waterproof Level IP67
Suitable for door All kinds of doors
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (relative humidity)
Panel Material 304 stainless steel panel with wiredrawing finish
Weight 0.18kg
Certificate CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

Design with no Mechanical Bolt.
Stainless steel  Panel with Elegant Style.
With the Bottom Box, Easy to  Install.
100000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

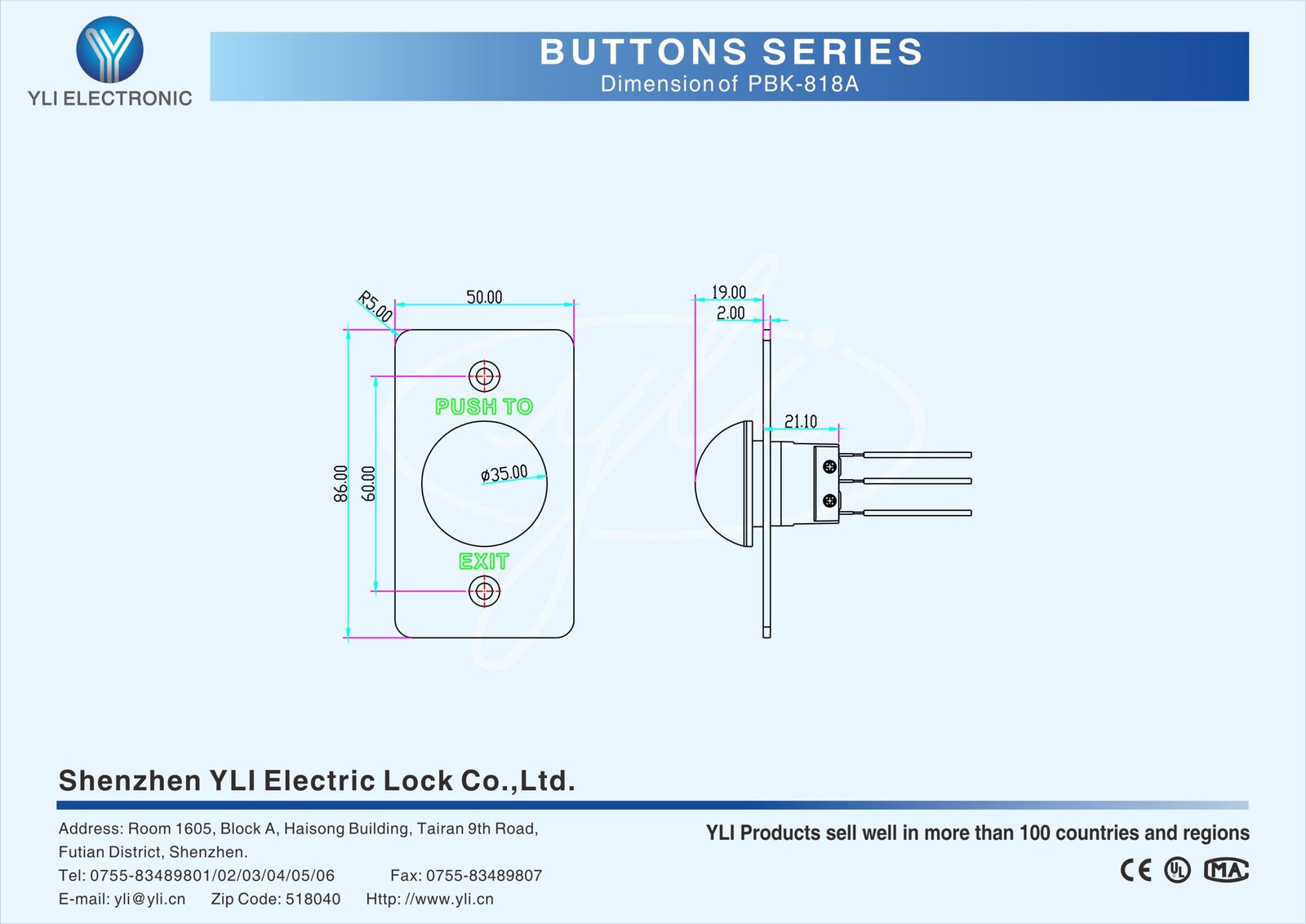

Dimension Diagram

Installation Diagram
