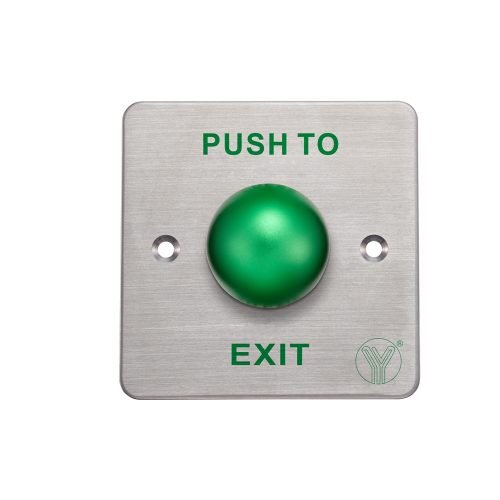

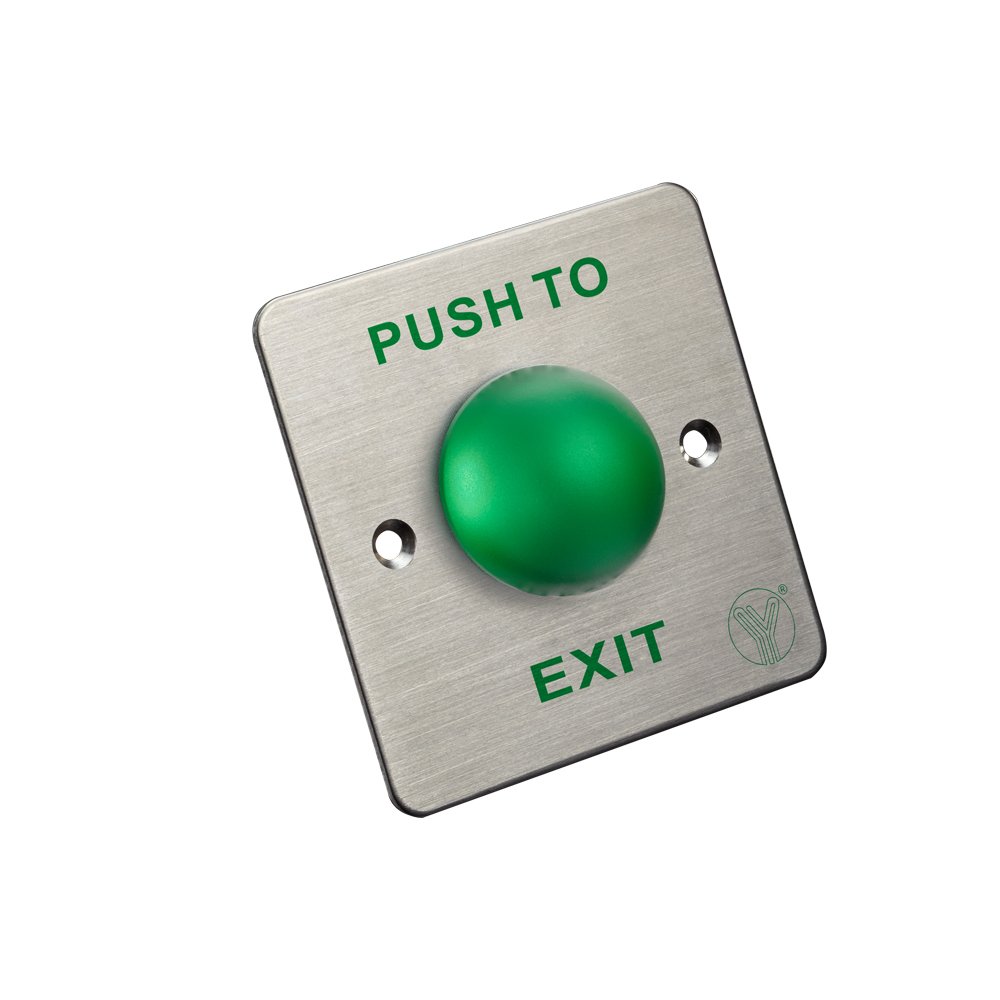

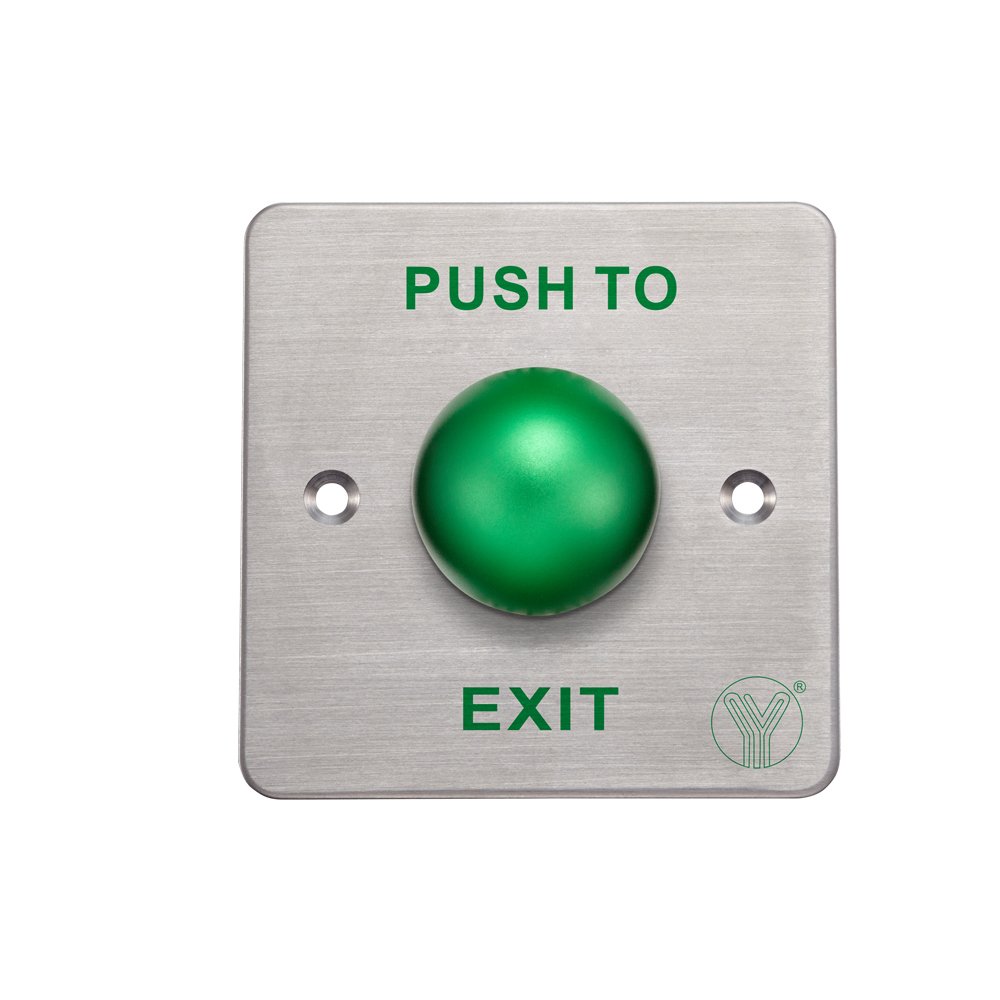

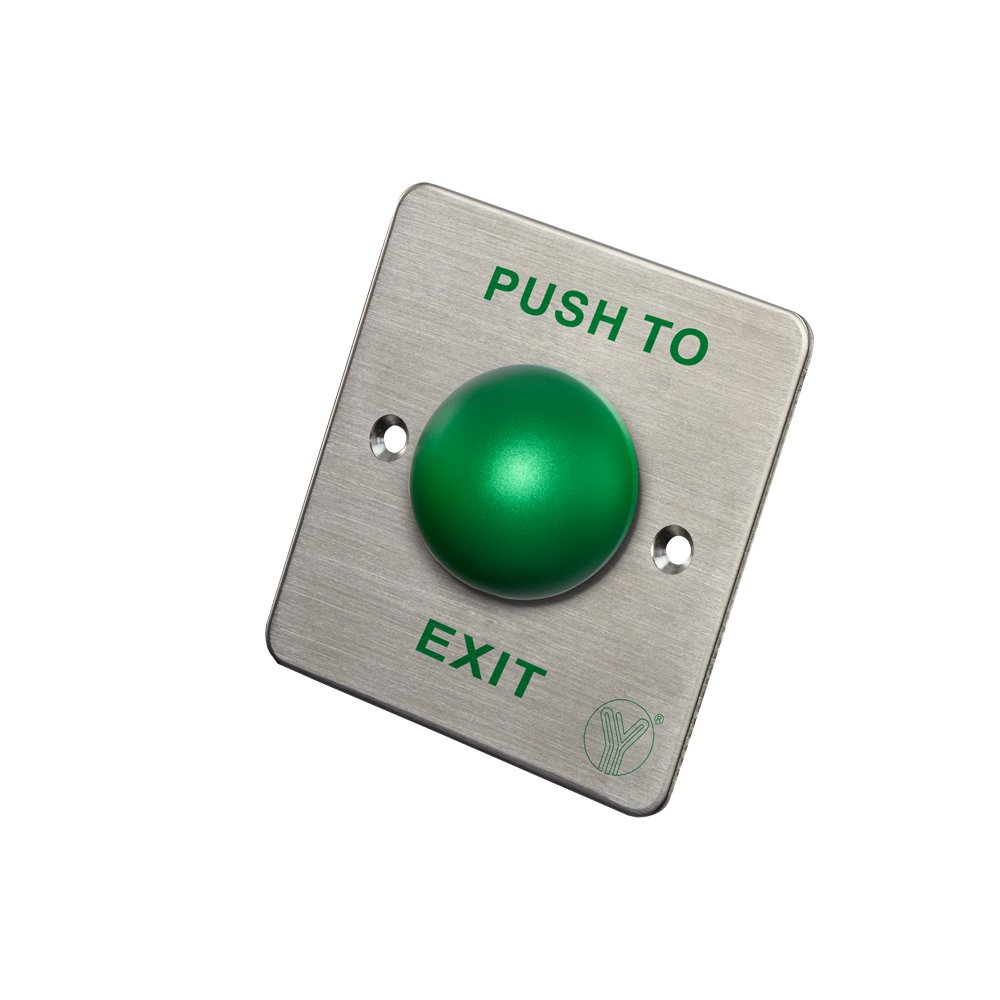

Door Release Button

PBK-818B is a door release button with stainless steel palte with size of 86Lx86Wx40.1H(mm), with green color which is conspicuous in public places.

SKU: PBK-818B Categories: ,

Technical Parameter

Dimensions 86Lx86Wx40.1H(mm)
Standard structure 304 stainless steel panel with metal button
Current rating 3A@36VDC Max
Output contact NO/NC/COM
Mechanical life 500000 tested
Suitable for door All kinds of doors
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (relative humidity)
Panel Material 304 stainless steel panel with wiredrawing finish
Back box finish 304 stainless steel panel with wiredrawing finish
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style.
With the Bottom Box, Easy to  Install.
500000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

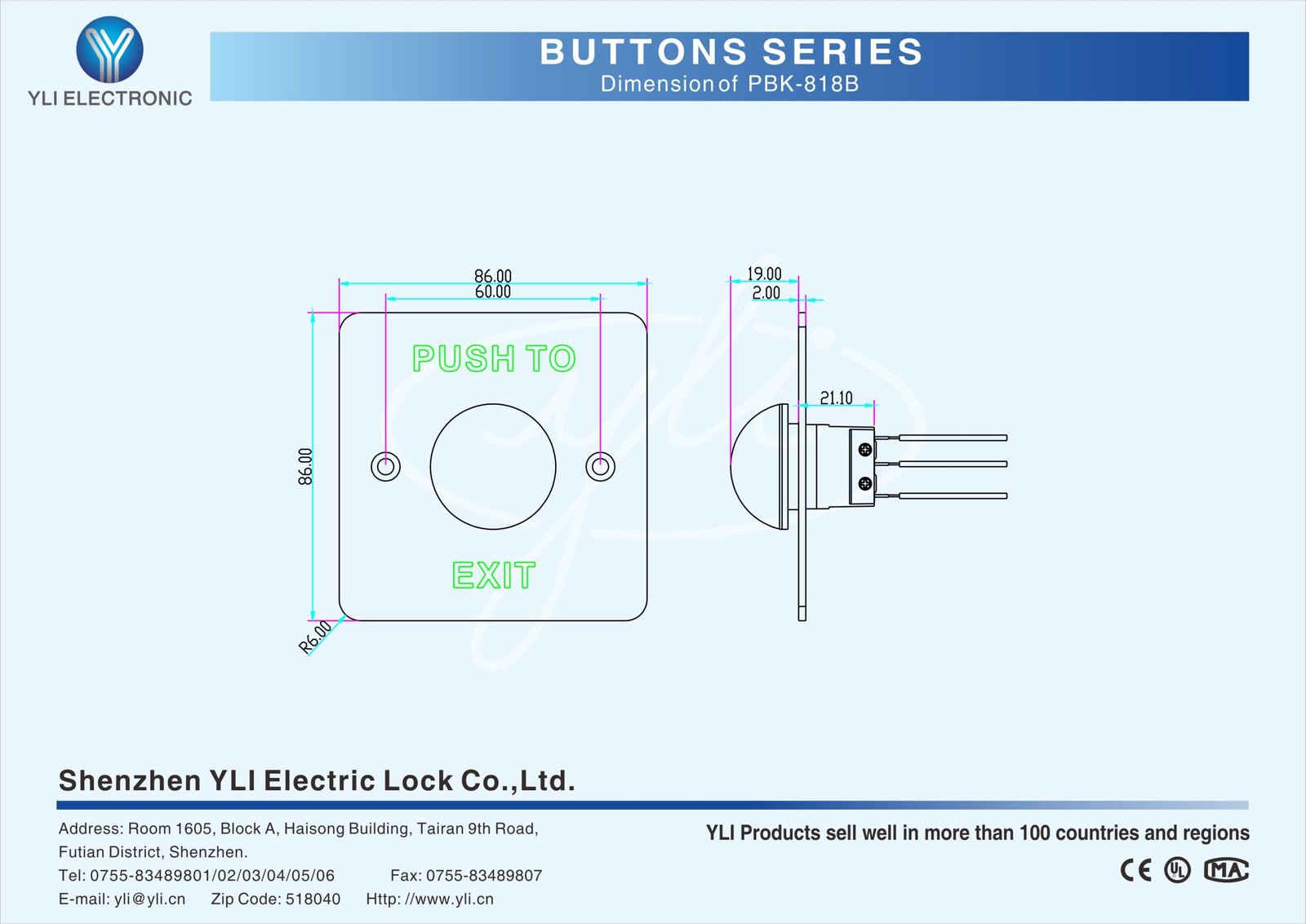

Dimension Diagram

Installation Diagram
