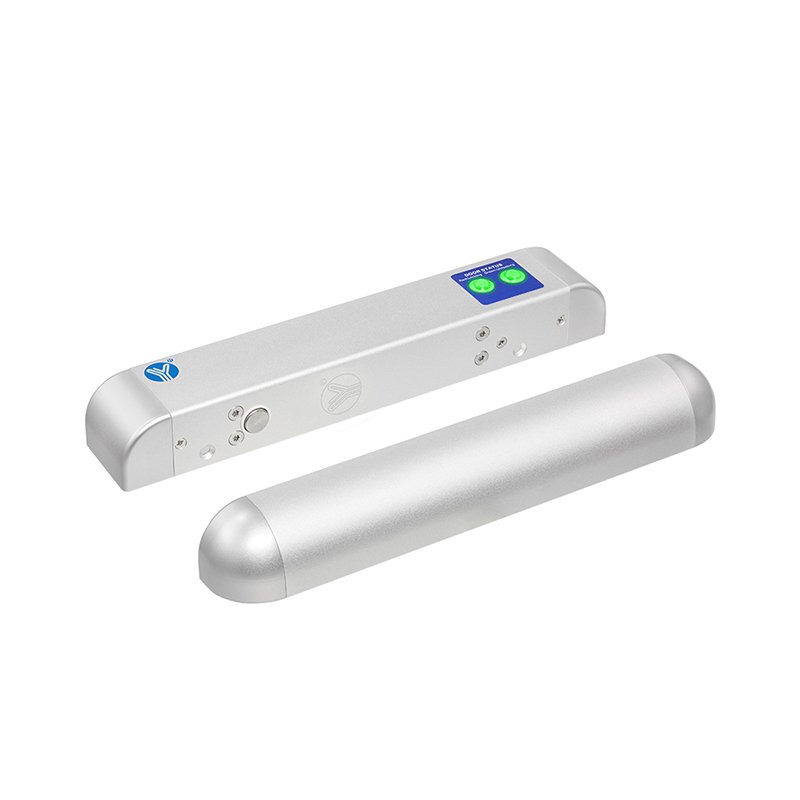

YB-500H(LED)Surface Mount Intelligent Single Door Electric Bolt,High-Strength Aluminum Alloy Housing,Zinc Alloy Body,304 Stainless Steel Solid Bolt,Processed by CNC,1000kgs Holding Force,Bolt comes with anti-theft high-strength security design,Metal linkages ,works in the temperature between 60 ℃ or -40 ℃ normally,durable magnetic valve applied,special photoelectric control system, ultra-low temperature and power consumption design.LED indicates status(green for unlocking;red for locking),Comes with NO/COM contacts and re-lock time delay function,Fail safe or fail secure optional,Convenient installation,time-saving,safe,sturdy,recommended model for any project
| Feature | Power-off lock (NO); power-off unlock (NC) |

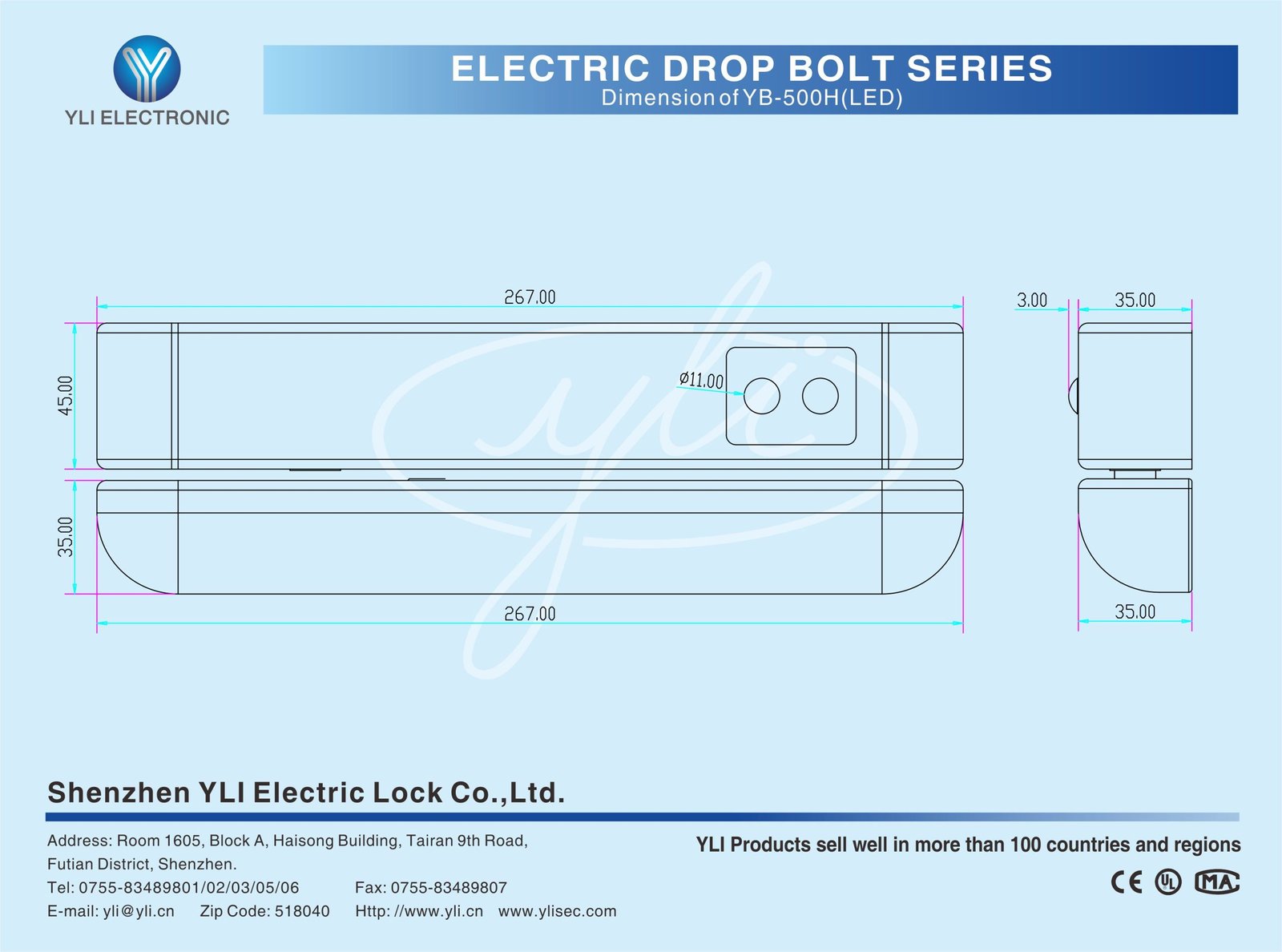

| Lock body size | 267Lx45Hx35W(mm) |
| Shelf size | 267Lx35Hx35W(mm) |
| Voltage | DC12V(24VDC need order) |
| Start Current | 1000mA |
| Standby Current | 180mA |
| Signal Output | Door status Output,NO/COM |
| Autolock Time Delay | 0/3/6/9S |

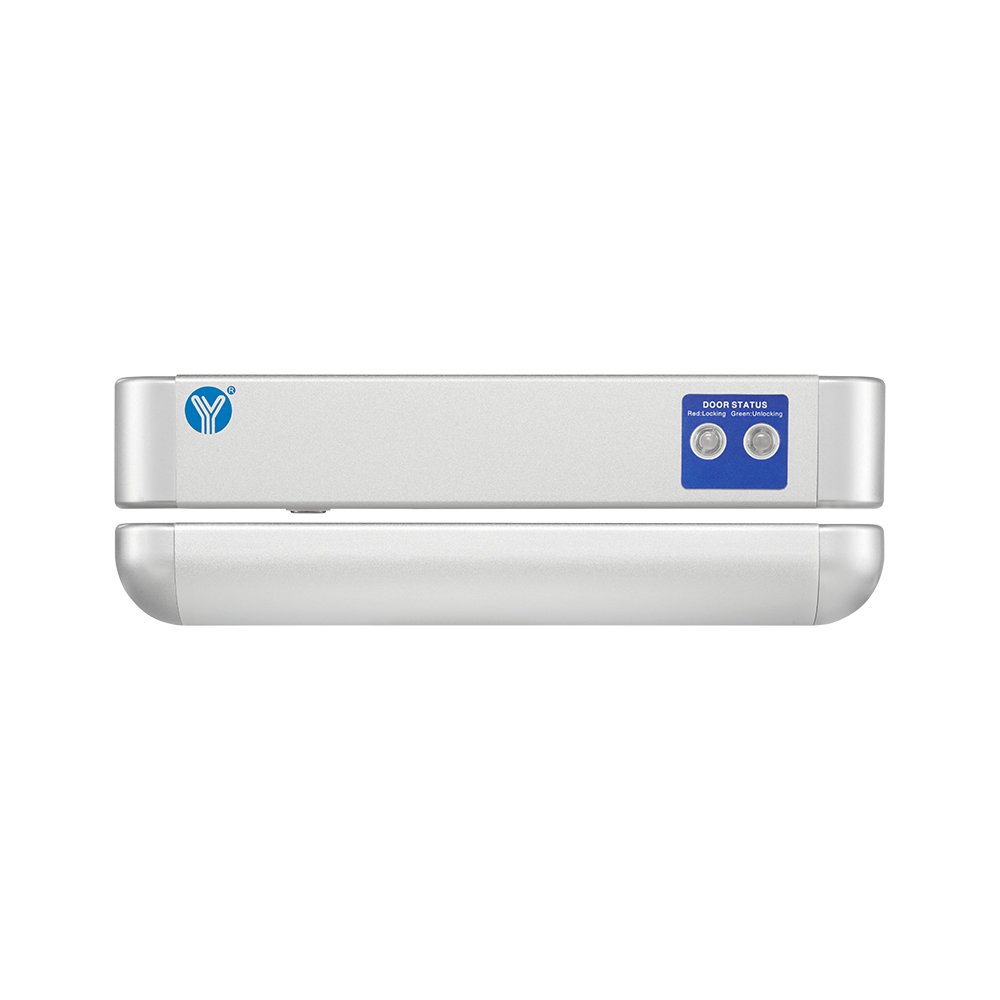

| L E D | Green light unlocked; Red light locked |
| Induction Distance | 8mm |
| Weight | 0.9kg |
