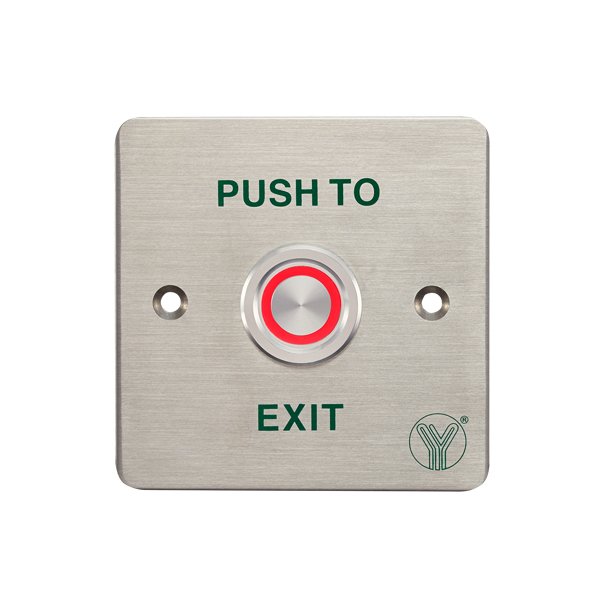

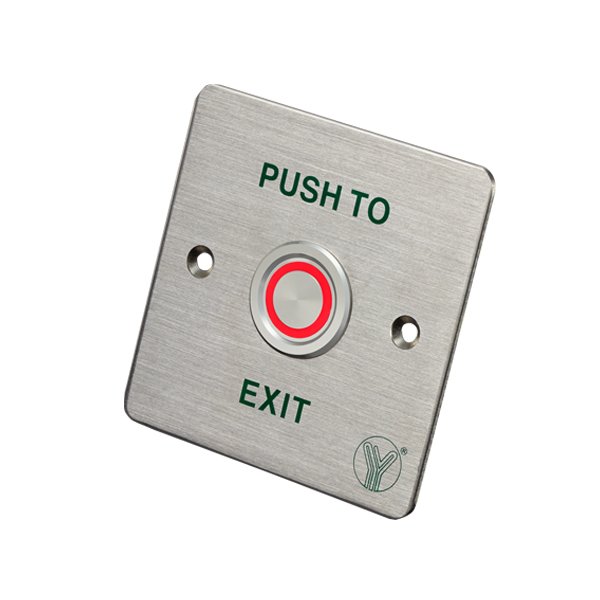

Touch Exit Button(Stainless)

TSK-832C(LED) ia a Touch Exit Button with LED, in size of 86Lx86Wx27.5H(mm), with Luxury , Fashion,Trend ,Technology design.

SKU: TSK-832C(LED) Categories: Exit Button, Touch Button

Reviews (0)

Technical Parameter

Dimensions	86Lx86Wx27.5H(mm)
Voltage	DC12V~24V
Current	≤50mA
Output Contact	NO/NC/COM
Operating Temp	-20℃～50℃
Contact Rating	1A@30VDC
LED Status	Red: Standby Green : Operation
Operating Humidity	0%~99%
Wire color	Red：+ / Black： - / Yellow：NC / White： COM / Green：NO
Weight	0.2kg

Advantage

Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
Special Design for Top Grade Office , Best Choice for Sophisticated group

Dimension Diagram

Installation Diagram
