Technical Parameter
| Dimensions | 86Lx86Wx12H(mm) |
| Voltage | 12-24V |
| Current | ≤60mA |
| Output Contact | NO/NC/COM |
| Waterproof Level | IP67 |
| Operating Temp | -20℃~50℃ |
| Standard instruction | Mirror Surface Tempered Glass |
| Current Rating | 1A@30VDC |
| LED Status | Red: Standby Green : Operation |
| Wire color | Red:Positive Black:Negative Yellow:NC White:COM Green: NO |
| Weight | 0.2kg |
| Certificate numbe | ECM 23 ATEX-B DN 89 |
| ATEX | II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |
Advantage

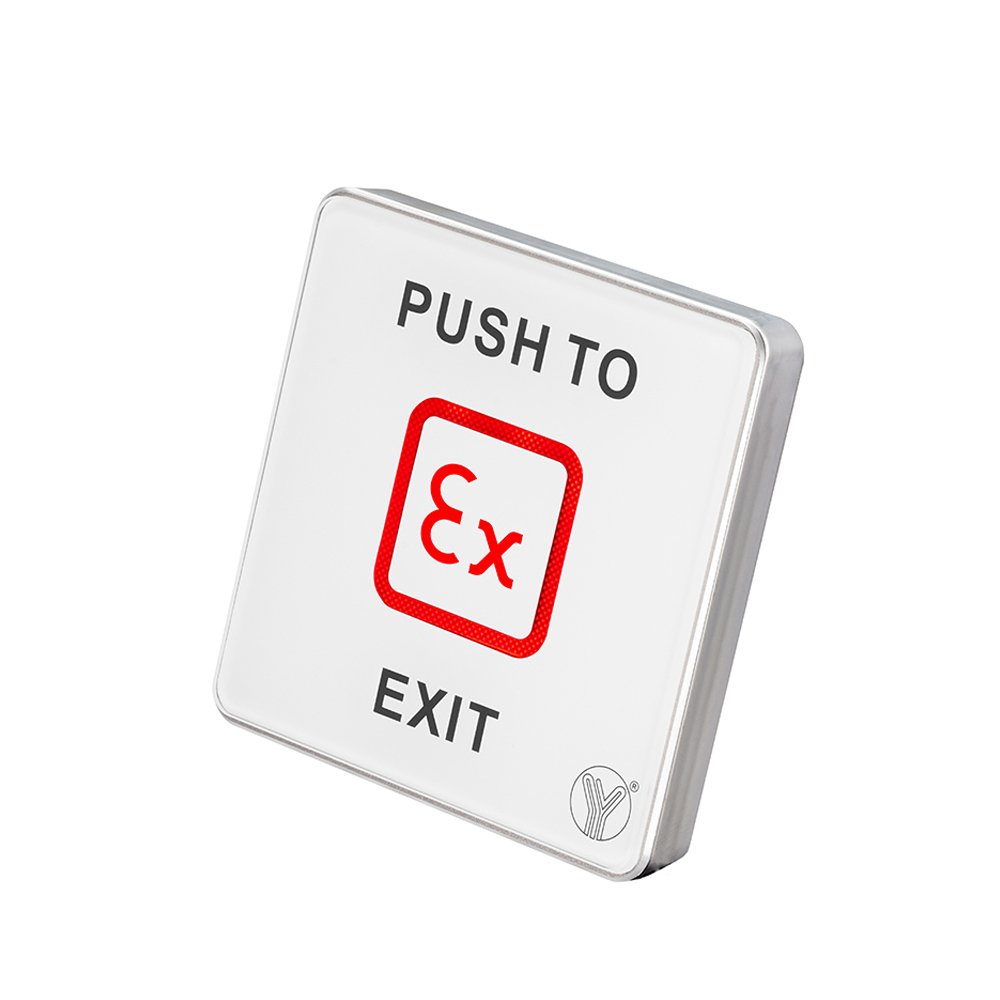

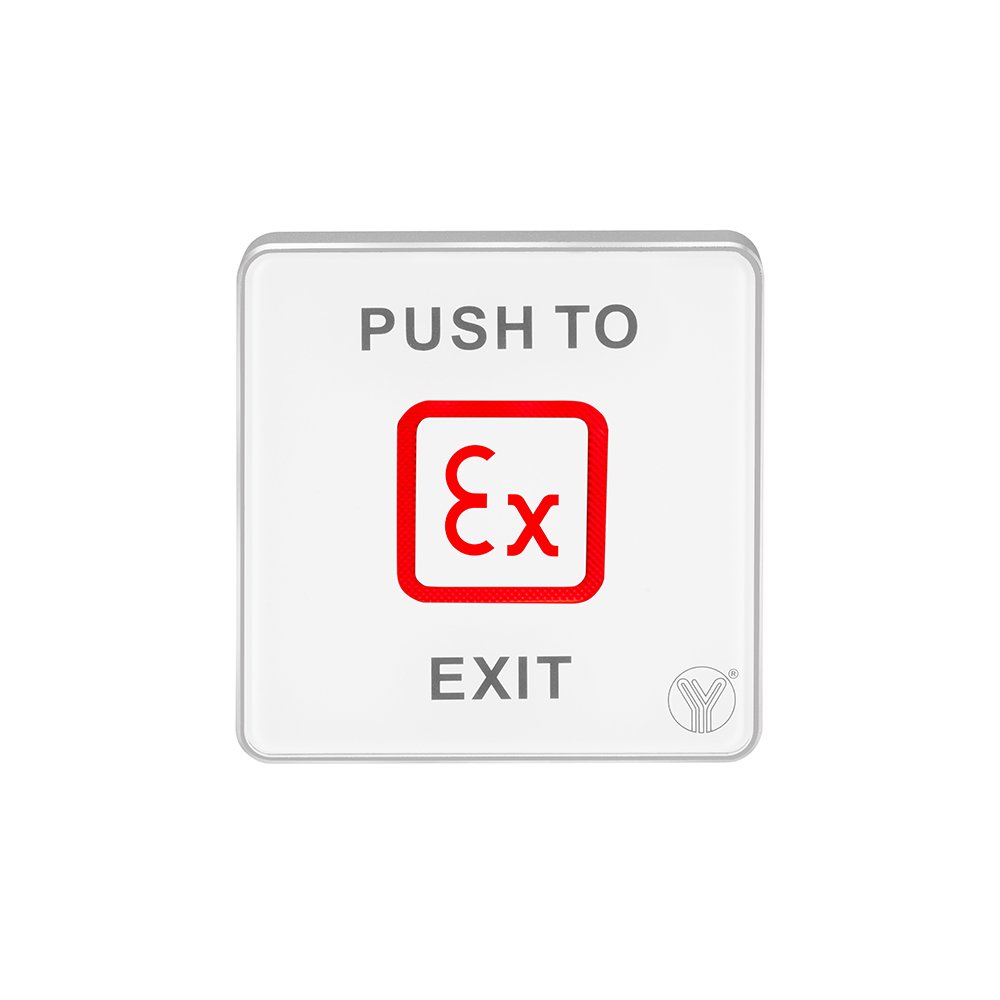

Explosion-proof anticorrosive touch button, with intrinsically safe structure, the housing is made of zinc alloy material by die-casting, the panel is tempered glass material, high strength, beautiful appearance, with corrosion resistance, impact resistance, good thermal stability
Dimension Diagram
The explosion-proof exit button is installed on the inside of the door in the danger zone, connected with the explosion-proof access control equipment, used for the exit of explosion-proof access control.?Comply with CNEX national explosion-proof standards, strict production and process procedures, to ensure that each product is safe, strong and durable.?The explosion-proof exit button is completely sealed and the waterproof rating is IP67. It can be installed indoors and outdoors.?Explosion-proof exit button can be widely used in: petroleum and petrochemical, chemical, oil depot, ship, drilling platform, gas station, port, aerospace, military, medicine, steel factories, mechanical food processing storage and other explosive dangerous environment.
Installation Diagram
