Technical Parameter

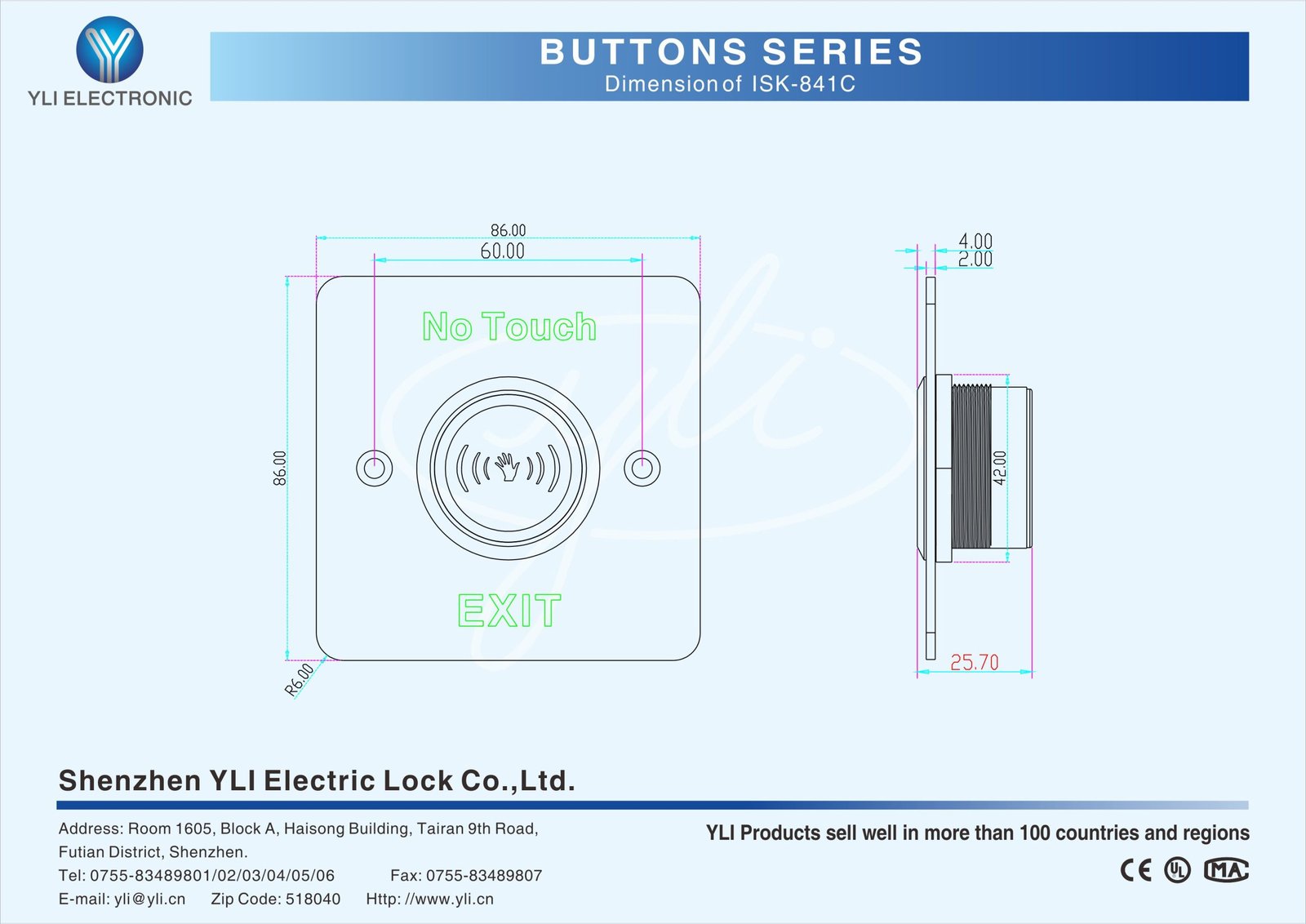

Dimensions | 86Lx86Wx25.7H(mm) |
86Lx86Wx25.7H(mm) | DC12V |
Contact Rating | 1A@30VDC |
Current | ≤70mA |
Output Contact | NO/NC/COM |
Mechanical Life | 100,000 tested |
Material | Stainless |
Suitable for Door | Hollow Door |
Waterproof Level | IP67 |
Operating temp | -20℃~+50℃(14-131F) |
Suitable Humidity | 0-95% (relative humidity) |
Detection range | 6cm(±2cm) |
LED Indicator | Red LED indicator: Power ON(standby) Green LED indicator: Power ON(sensation) |
Weight | 0.2kg |
Certificate numbe | ECM 23 ATEX-B DN 89 |
ATEX | II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |
