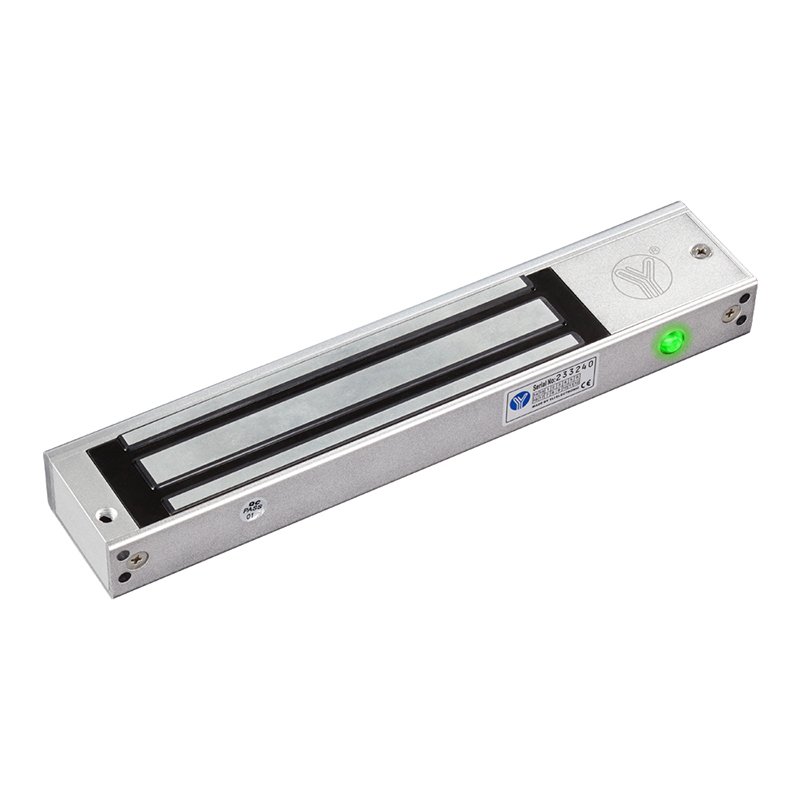

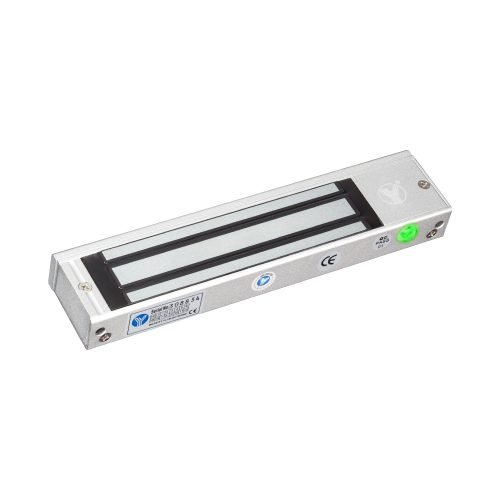

Single Door Magnetic Lock(LED)

Magnetic lock with 600lbs holding force for single door ,like glass door, wooden door, fireproof door, sliding door and metal door. It is also with LED indicator.

SKU: YM-280N(LED) Categories: ,

Technical Parameter

Size 250Lx49Wx28H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Holding Force 280kg(600Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
LED Red shows locked ;Green shows unlocked
Signal Output Lock signal(NO/NC/COM)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~90%(non-condensing)
Weight 2.1KG
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE

Advantage

Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

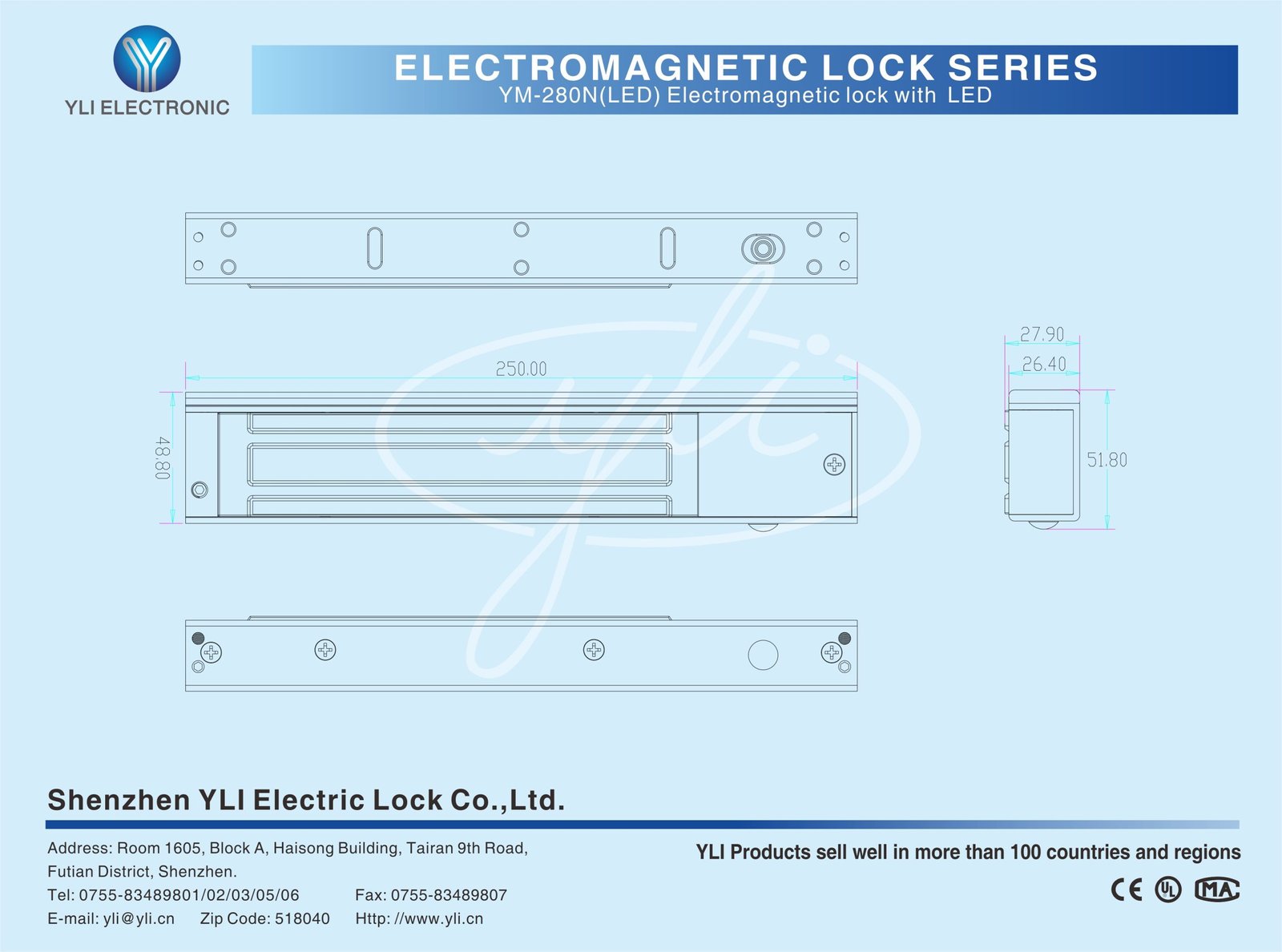

Dimension Diagram

Installation Diagram

Reviews

There are no reviews yet.

Be the first to review “Single Door Magnetic Lock(LED)”

Related products

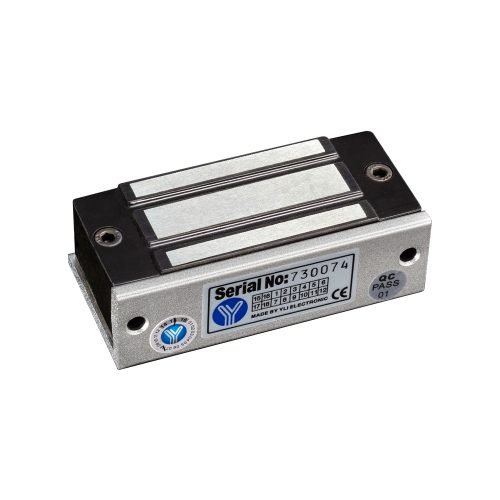

Mini single door magnetic lock with signal output
