Technical Parameter

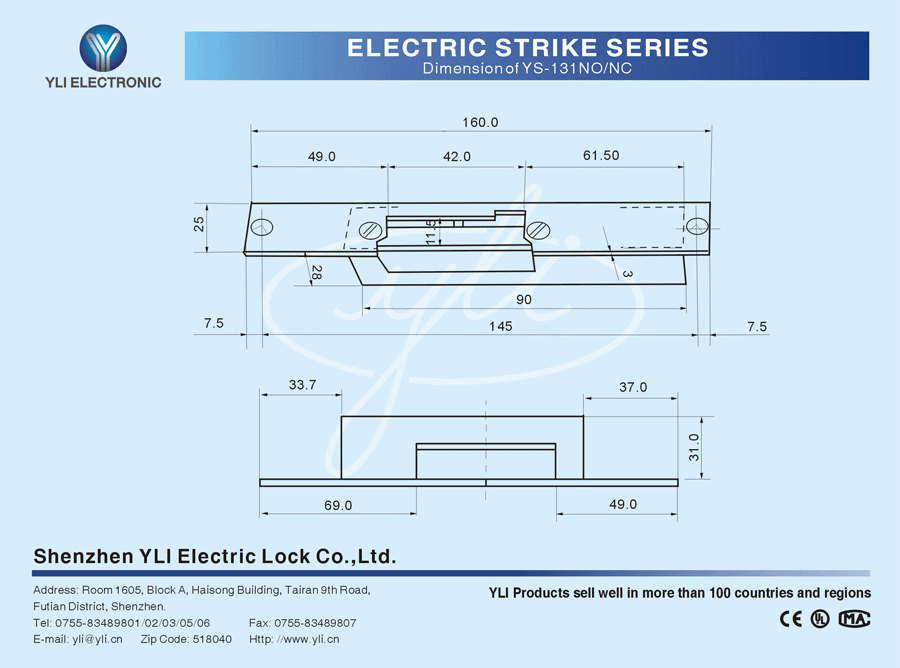

Lock Size | 160Lx25Wx31H(mm) |
Keeper | Stainless Steel |
Strike Structurer | 500kg |
Voltage | DC12V (Need Order DC24V) |
Current | NO:12V/240mA(±10%); 24V/120mA(±10%) / NC:12V/200mA(±10%); 24V/100mA(±10%) |
Feature | Fail Secure(YS-131NO-S); Fail Safe(YS-131NC-S) |
Signal Output | Lock Status OutputNO/NC/COM |
Suitable For | Wooden Door,Metal Door,PVC Door |
Surface Temperature | Within + 20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~95%(non-condensing) |
Face plate Housing | Painted Steel |
Bolt Housing | Stainless steel,Draw the Polishing of silk |
Function | Built-out MOV |
Optional Accessories | YS-307 |
Weight | 0.36kg |
Certificate | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
