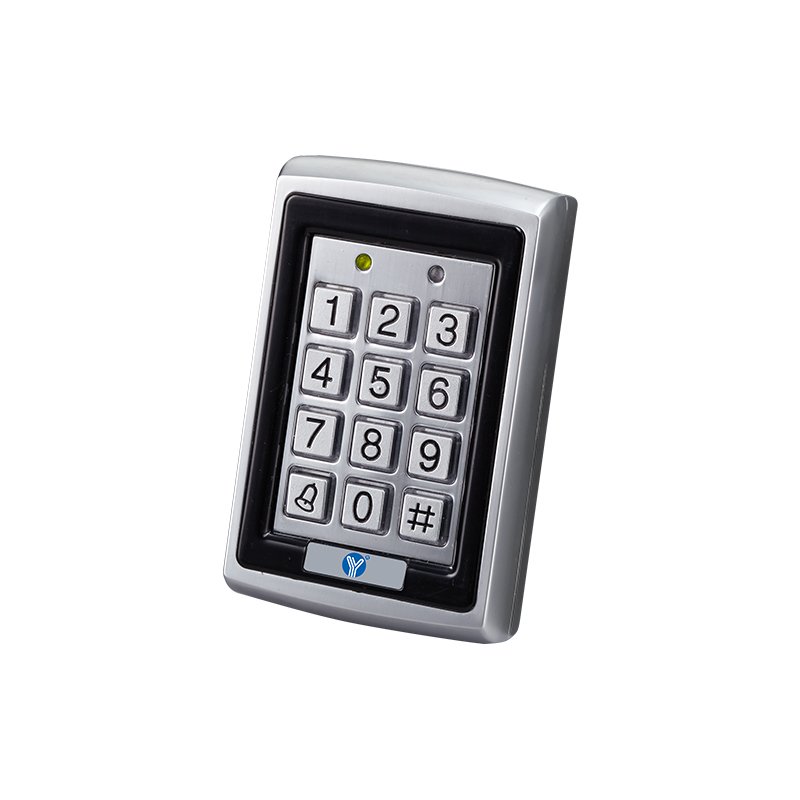

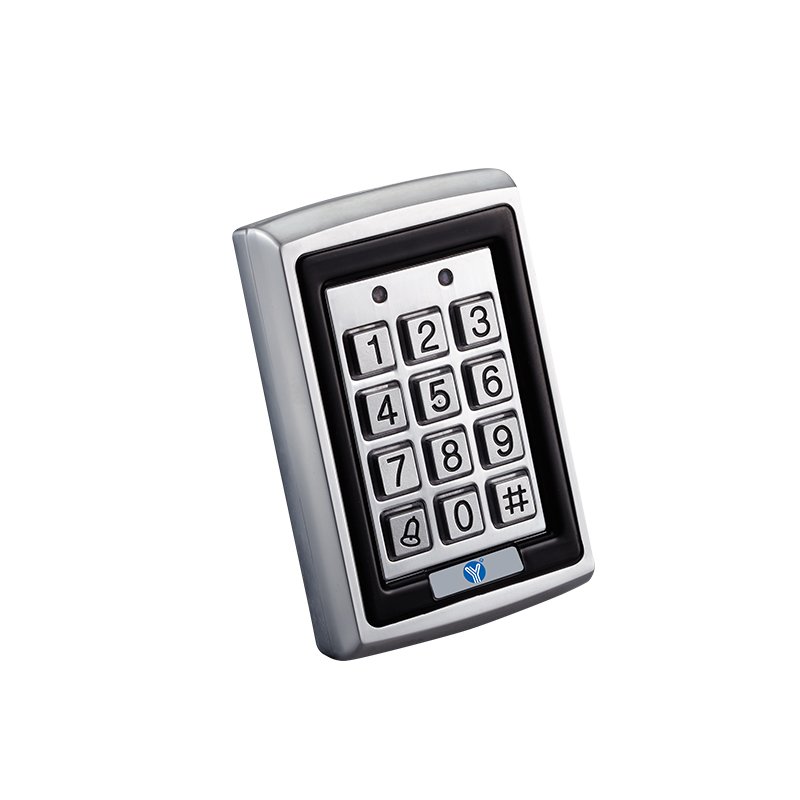

Multi-function Keypad(Noctilucence&Waterproof)

YK-568 is a type of numeric access control keypad that supports touch-less card reading,supporting up to 500 users,suitable for out door installation,it adopts most advanced micro processor and Large-capacity memory chip,all settings can be saved in case of power failure,keypad is also easy to operate and programming,its a perfect choice as access control device for many environments like office,residences,workshops etc.

SKU: YK-568L Categories: ,

Technical Parameter

Dimensions 120Lx76Wx27D(mm)
Operating Voltage 12VDC
Input Current Static state current 40mA/Max current 130mA
Card Reading Distance ID card,125KHZ
Open door mode 1.Four Digits(500 groups)/2.Four Digits+Card/3.Four Digits+Four Digits/4.Card+Card
Operating Temperature -31℃~63℃
Operating Humidity 10%~95%
Waterproof Grade IP55
Weight 0.5kg
Certificate CE-EMC

Advantage

Easy programming and operation

Single/multiple users optional,normal/safe operating models switchable

Support up to 500 users

Break proof,good choice for out door use

LED blue Back light for buttons

Built in door bell controller and buzzer

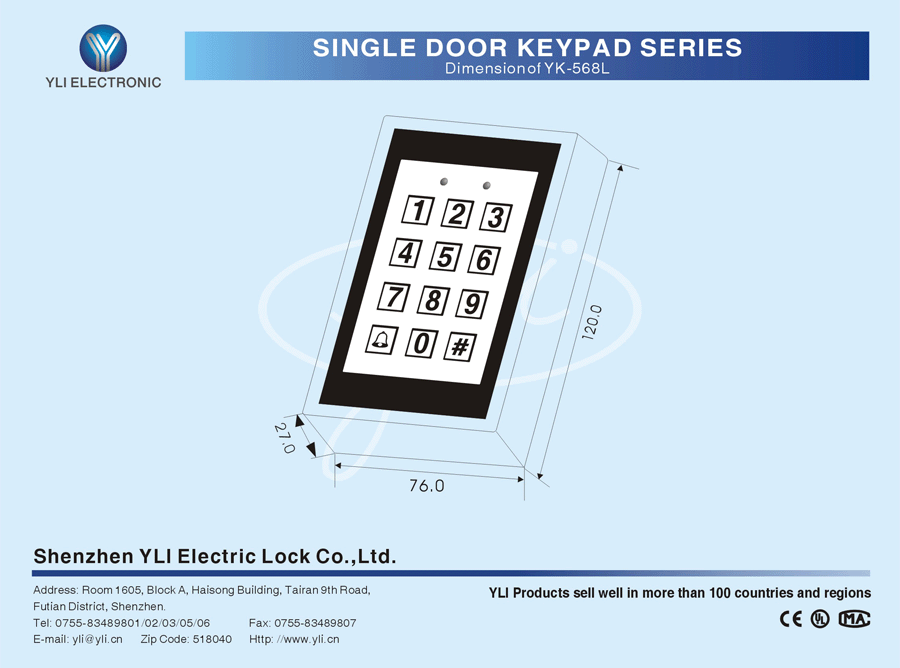

Dimension Diagram

Installation Diagram
