Technical Parameter
| Dimensions | 145L x 68Wx 25D (mm) |
| Operating Voltage | 12-18VDC |
| Working Current | ≤150mA |
| Idle Current | ≤60mA |
| User Capacity | 1000(100 Fingerprint,900 Card/PIN Users) |
| Access mode | Fingerprint,Card,Code,Card+Code,Multiple-access,Fingerprint or Card or Code |
| Radio Technology | ID :125KHz(Order:IC:13.56MHz) |
| Read range | 2~6cm |
| Wiegand Interface | Wiegand 26-44 bits input output(Factory Default: Wiegand 26bits) |
| Lock Output Load | 2 Amp Maximum |
| Alarm Output Load | 2 Amp Maximum |
| Operating Temperature | -30°C～+60°C |
| Operating Humidity | 0%~98% |
| Environment | IP66 |
| Weight | 0.5kg |
Advantage

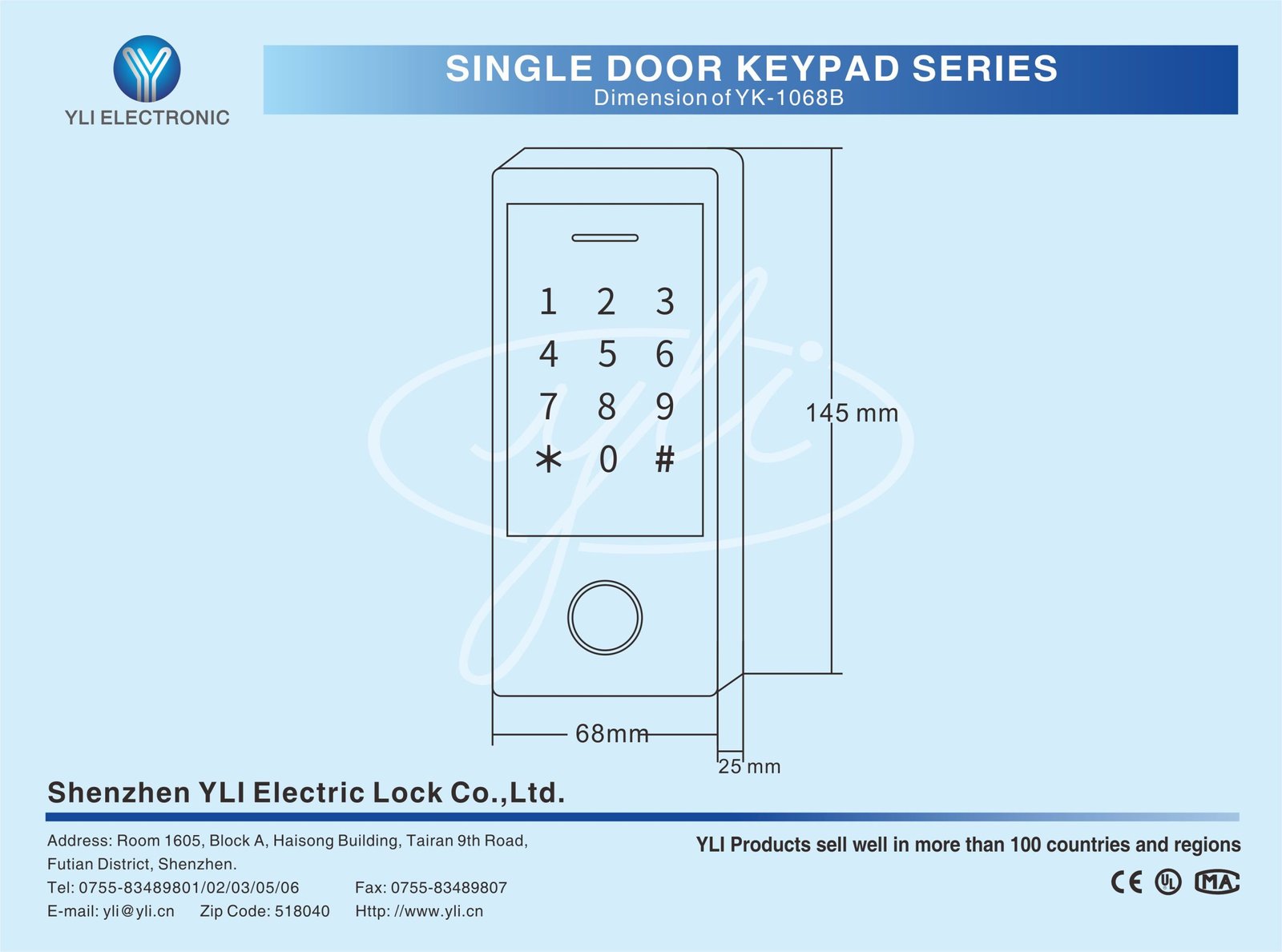

Dimension Diagram
Installation Diagram
