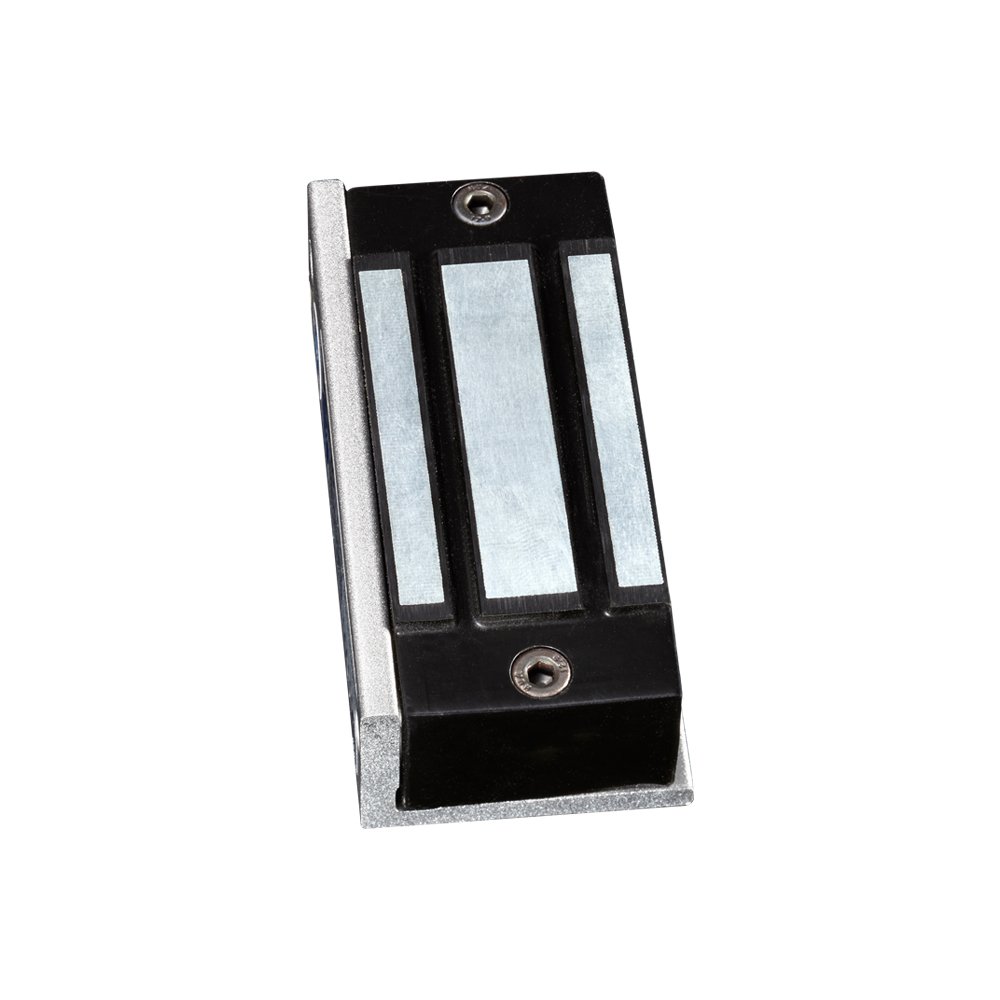

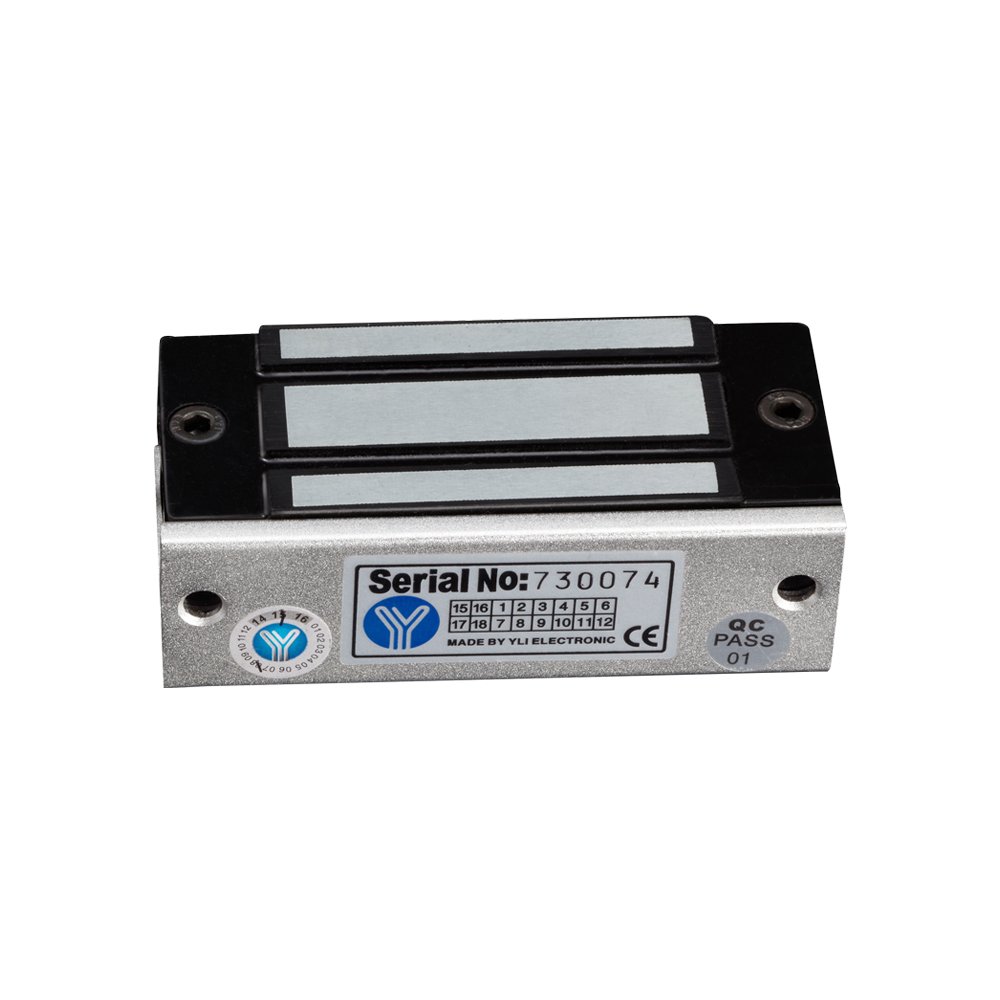

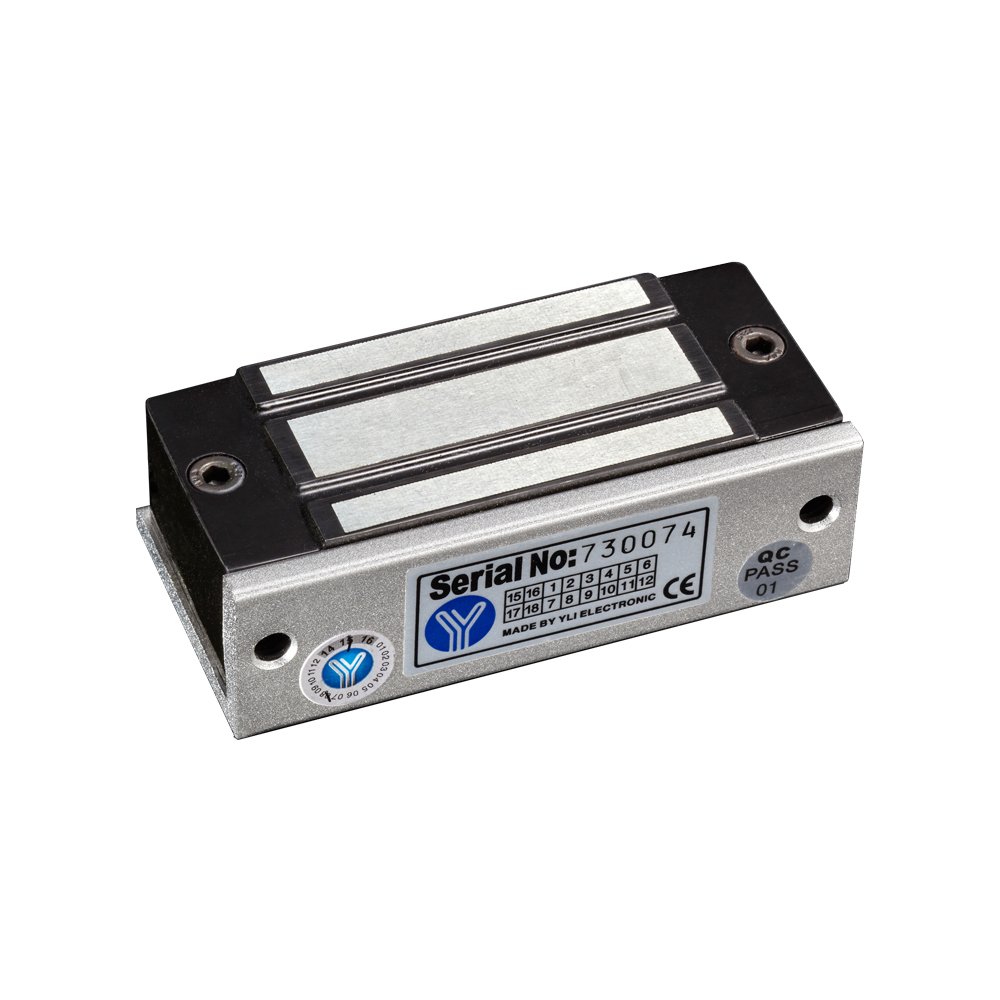

Mini single door magnetic lock with signal output

YM-60N is a mini single door electric lock, it is designed for showcase, cabinet door and easy to install . The holding force is 120lbs.

SKU: YM-70N/YM-70N-S Categories: ,

Technical Parameter

Signal output Lock signal NO/COM (YM-70N-S)
Size 90Lx36.5Wx24H(mm)
Armature Plate Dimension 75Lx33Wx10H(mm)
Holding Force 70kg(140Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/220mA(±10%)； 24V/110mA(±10%)
Suitable File Cabinet ,Display Cabinet
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 0.7KG
Certificate CE-EMC CE-LVD FCC REACH WEEE

Advantage

Collinear Load Test 70kg,140pounds.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

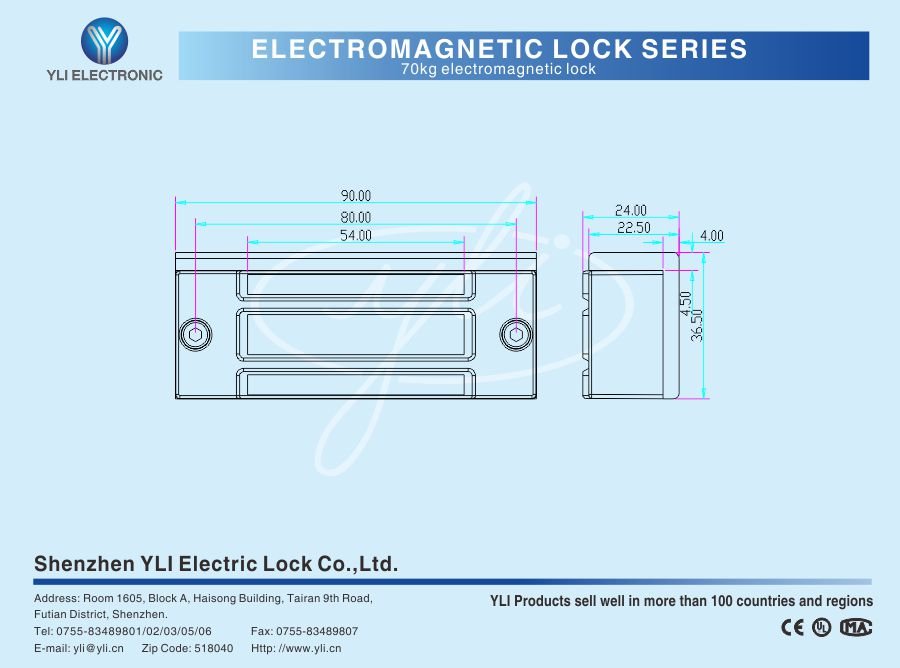

Dimension Diagram

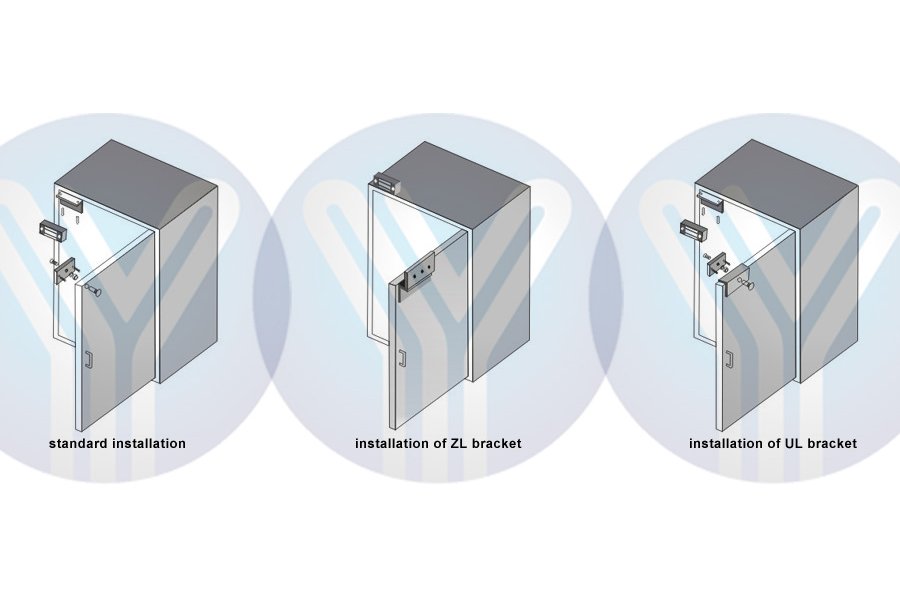

Installation Diagram
