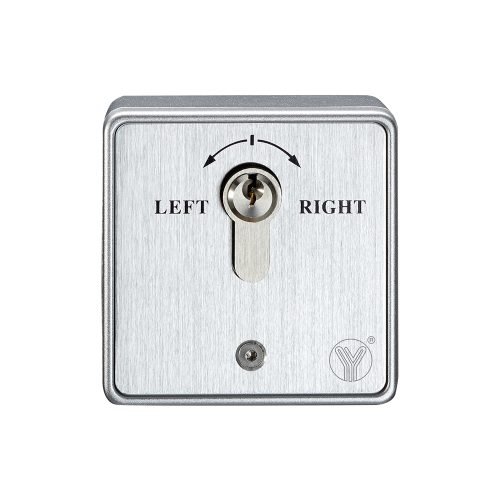

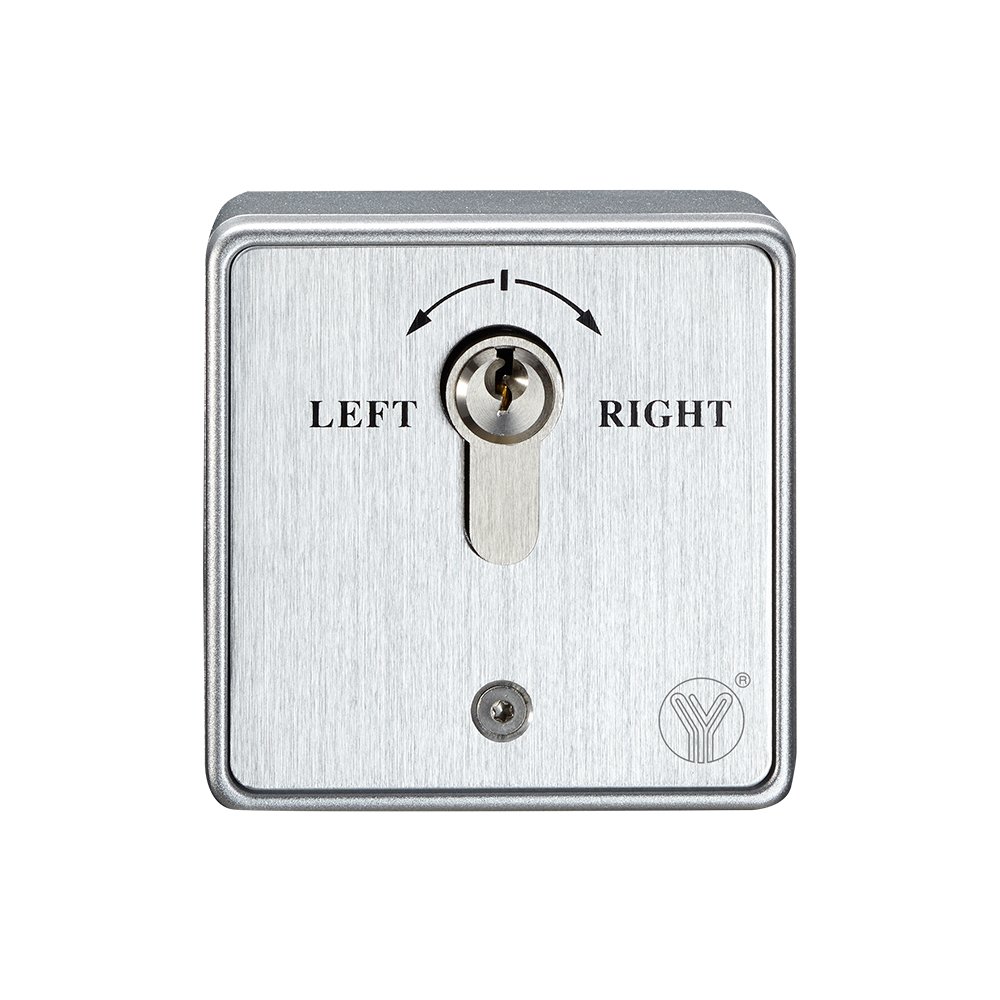

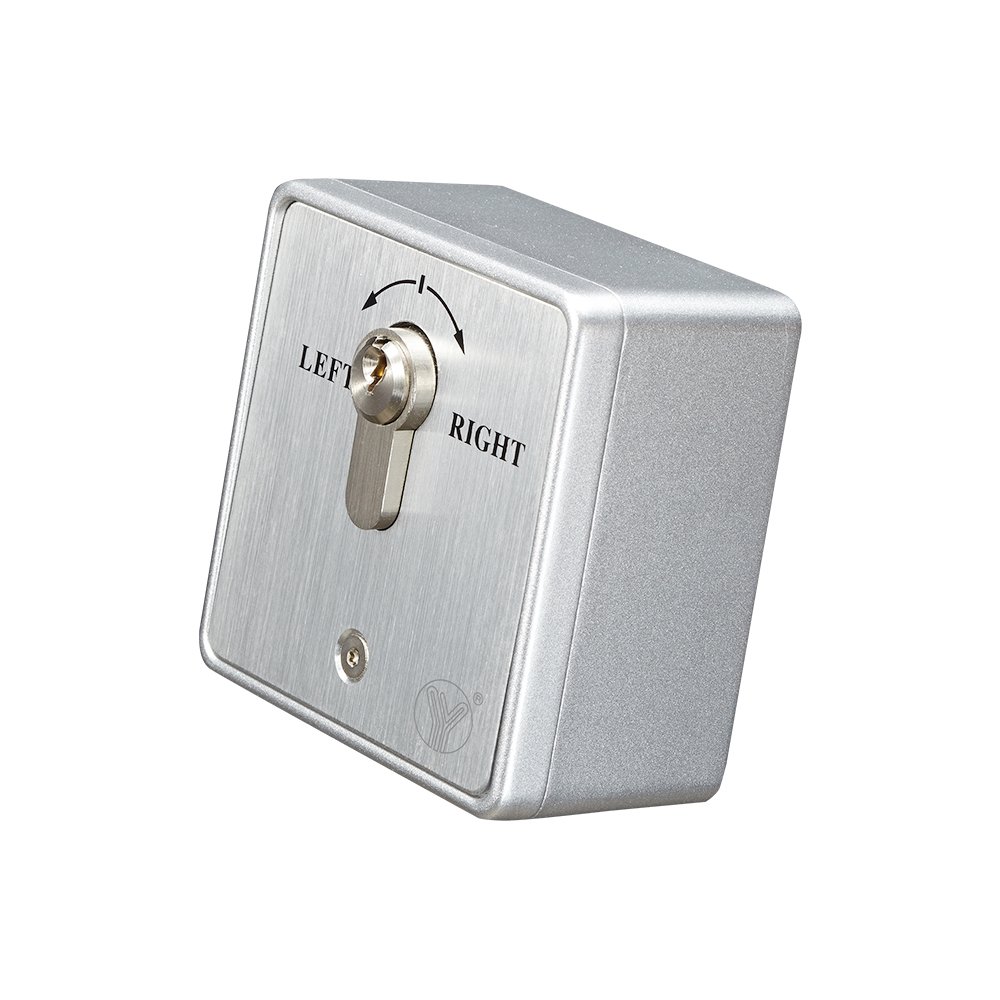

European type emergency release button with key

YKS-851EN is an European type emergency release button with key in size of 86Lx86Wx48.5H(mm). They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.

SKU: YKS-851EN Categories: ,

Technical Parameter

Dimensions 86Lx86Wx48.5H(mm)
Finish be finished with wire drawing
Current rating 5A/125VAC (max)
Output contact NO/NC/COM, NO/NC/COM
Mechanical life 100,000 tested
Feature Reset automatically,open & close (need order)
Safe Type weatherproof, Defend and Duplicate the Key
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (non- condensing)
Panel Material Aluminium Panel
Weight 0.4kg
Certificate CE-EMC CE-LVD FCC-VOC

Advantage

All metal structure, safety.
Anti-break design, durable.
100000 tested mechanical life.
Suitable for access controls,fireproof door, alarm.
Official authorized product of access control project.

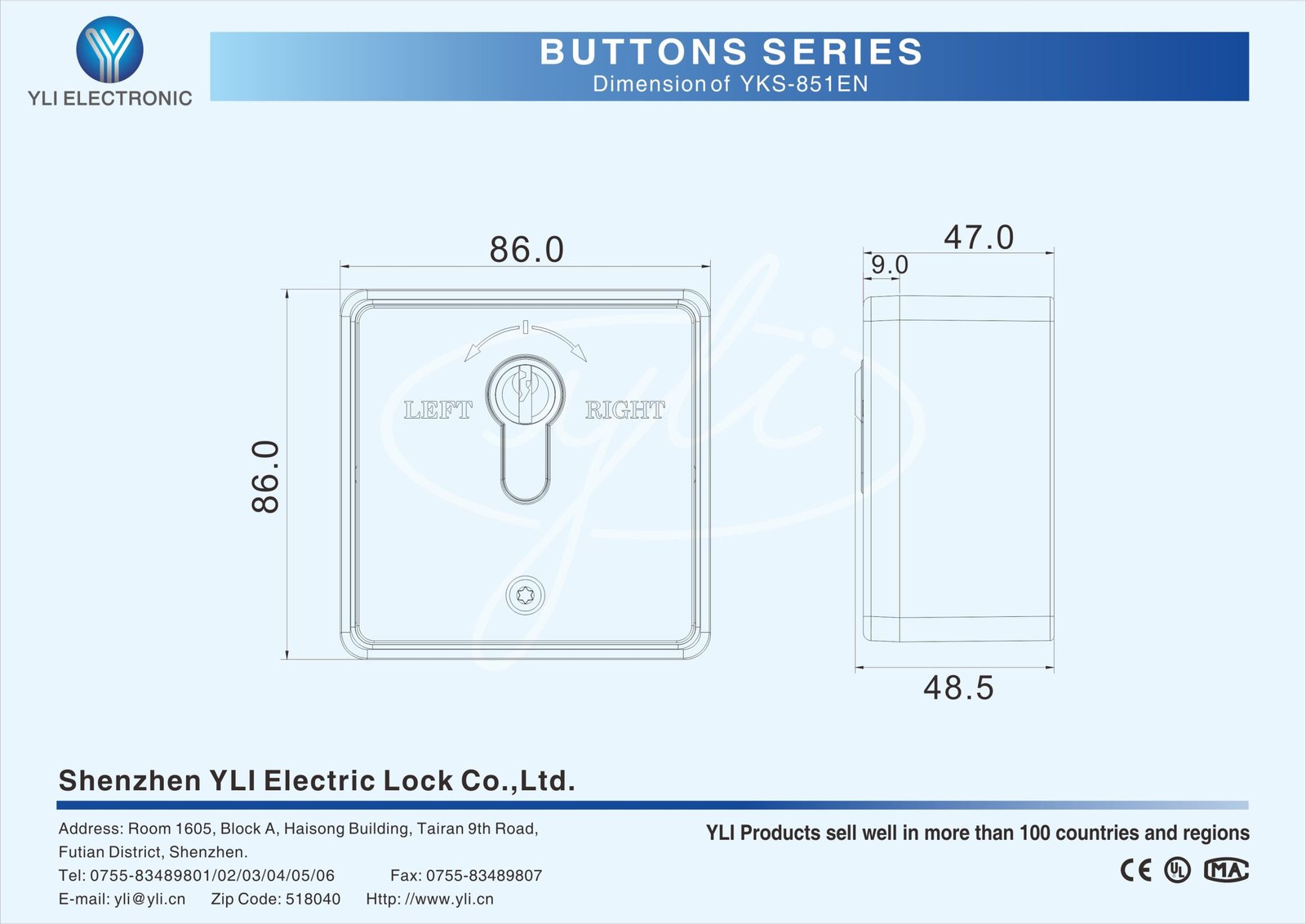

Dimension Diagram

Installation Diagram

Reviews

There are no reviews yet.

Be the first to review “European type emergency release button with key”
