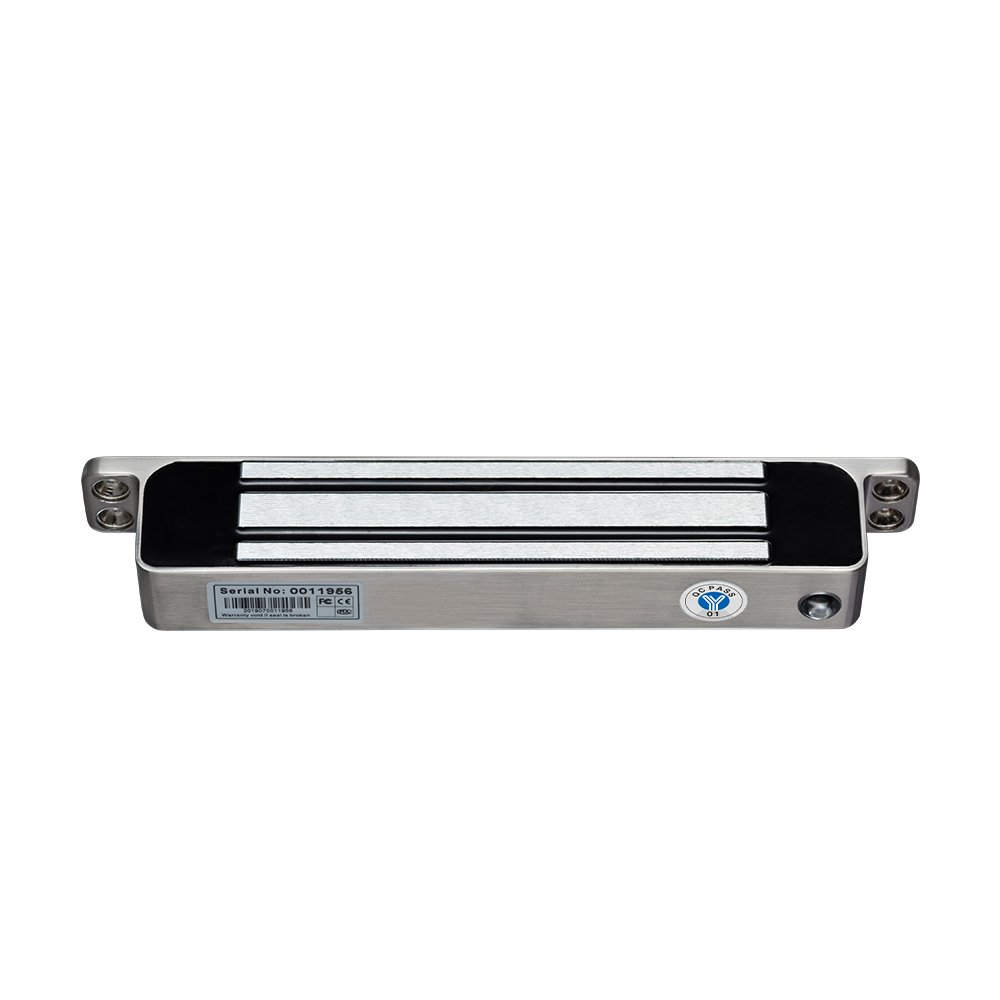

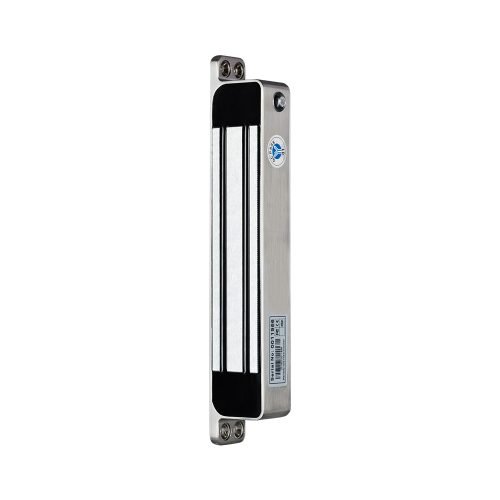

180kg Single Door Magnetic Lock

350lbs single door magnetic lock .IP-68 waterproof for indoor and outdoor use. The installation is very easy. High anti-impact strength .Dual Voltage 12/24V optional.

SKU: YM-180H(LED) Categories: ,

Technical Parameter

Size 210Lx26.5Wx36H(mm)
Armature Plate Dimension 130Lx32x10H(mm)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/ 400mA(±10%) ; 24V/ 200mA(±10%)
Holding Force 180kg(350Lbs)
Signal Output Lock signal(NO/COM)

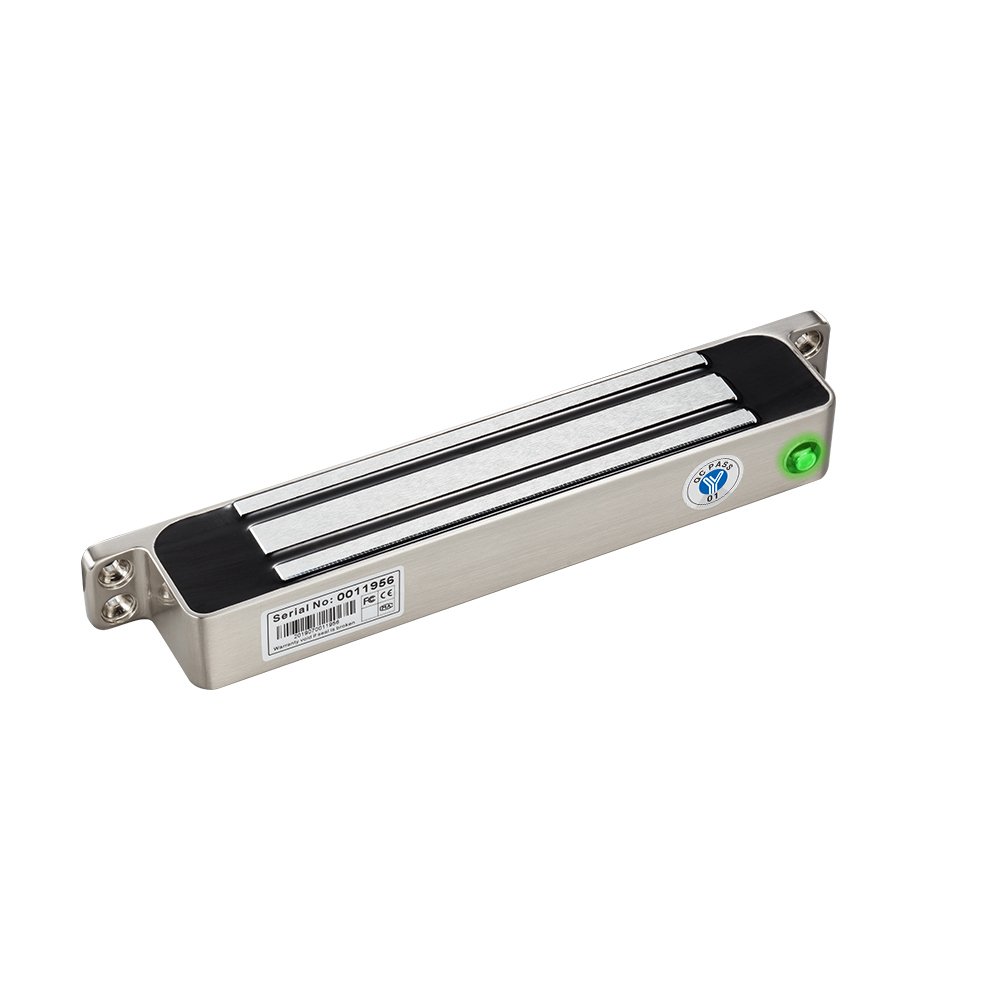

LED Red shows locked ;Green shows unlocked
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Waterproof Level IP-68
Weight 1.5kg
Patent Number ZL201620102661X
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE

Advantage

IP-68 waterproof design, for indoor or outdoor use
Dual Voltage 12V/24V DC (optional)
With LED indicator for door status and lock signal output contact
With integrated design, the anti-impact strength is three times higher than the traditional one
The speed of installation is three times faster than the traditional one
Patented product, counterfeiting is not permitted.

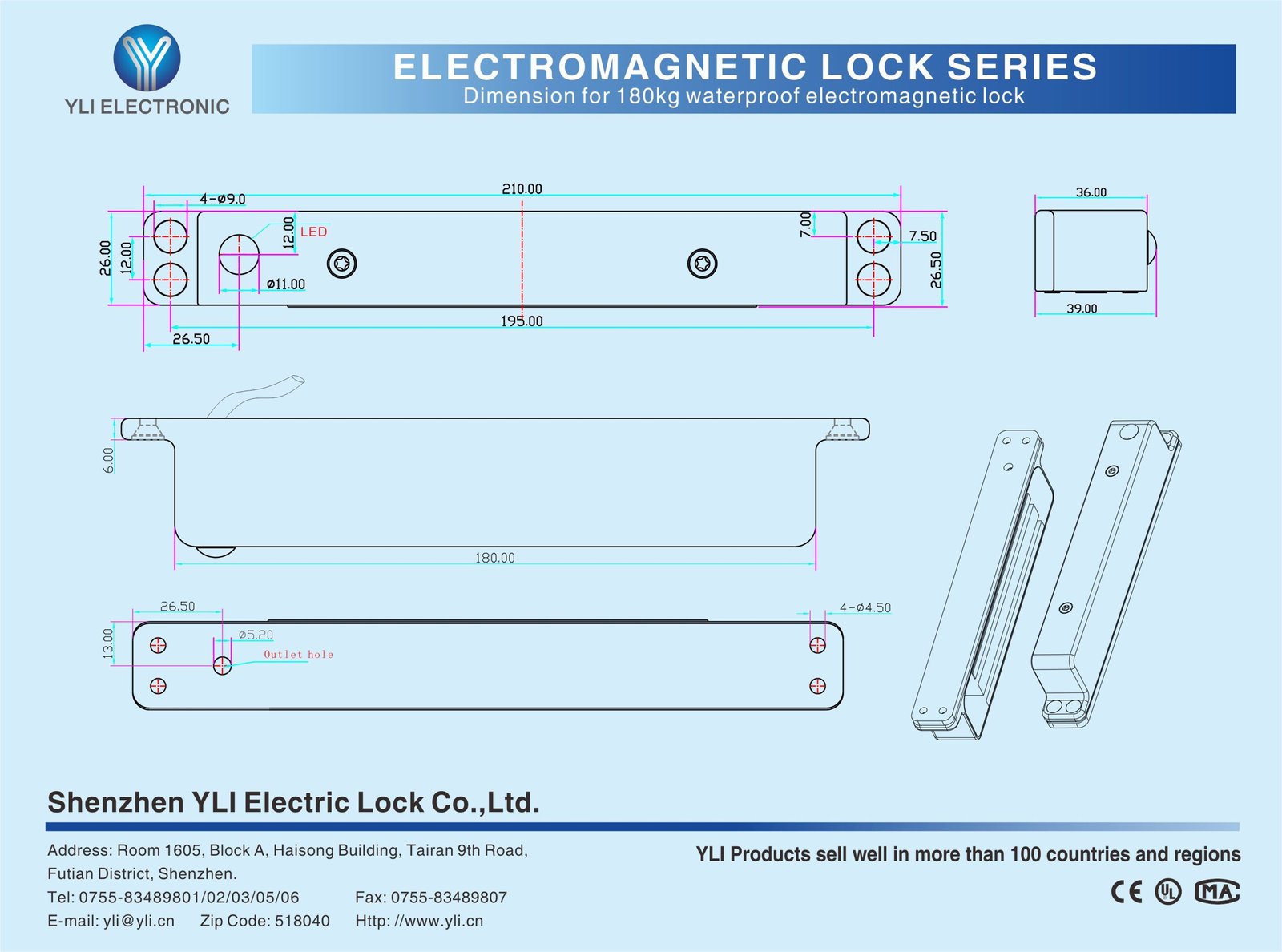

Dimension Diagram

Installation Diagram
